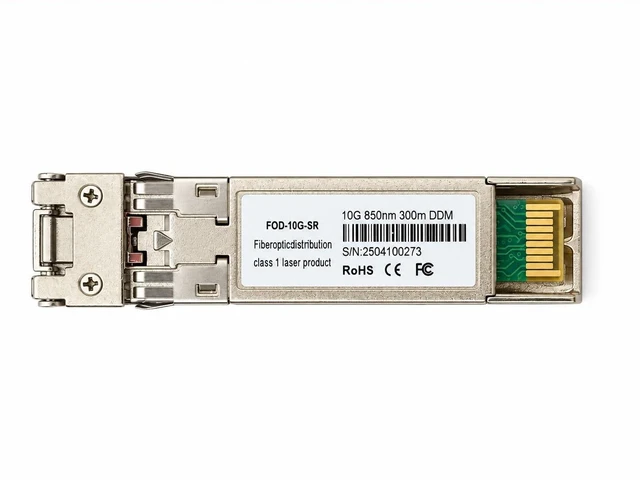

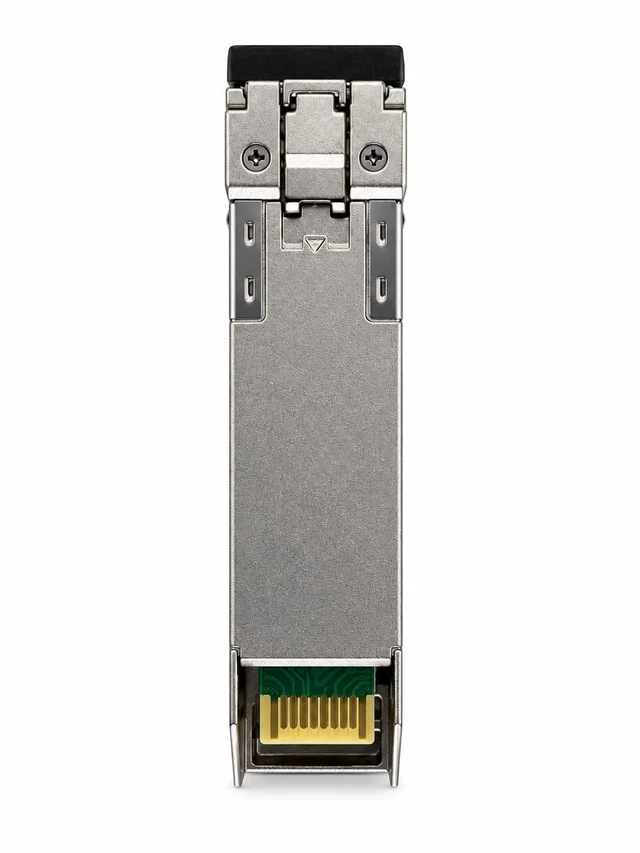

Dell 407-10444 Compatible 10GBASE-SR SFP+ Transceiver Module, 850nm MMF, 300m, LC, DOM
- Direct replacement for the Dell 407-10444 10GBASE-SR SFP+ module
- Coded and tested in Dell PowerSwitch switches and PowerEdge servers
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 300m reach on OM3, 400m on OM4, and 82m on OM2 multimode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- VCSEL transmitter with PIN receiver at 850nm
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Dell 407-10444 Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Keep older Dell 10G ports in service without OEM pricing on legacy optics. This 407-10444 compatible SFP+ transceiver runs 10GBASE-SR and 10GBASE-SW traffic at 850nm through an LC duplex pair, covering 300 meters on OM3, 400 meters on OM4, and 82 meters on older OM2, which is more than enough for server-to-switch and rack-to-rack links.
Digital Optical Monitoring feeds back live temperature, voltage, and optical power, so a contaminated connector or weakening transmitter surfaces during maintenance rather than during an outage. Built to the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, it interoperates cleanly with whatever optic sits at the far end.
Each unit is written with Dell EEPROM coding and bench-verified in Dell 10G switches, servers, and network interface cards before shipping, so the port accepts it exactly as it would the OEM 407-10444.
Specifications
| Compatible OEM Part# | 407-10444 | Manufacturer Part# | FOD-DEL-40710444 |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 850 nm | Media Type | MMF |
| Max Distance | 82m @ OM2, 300m @ OM3, 400m @ OM4 | Transmitter Type | VCSEL |
| Receiver Type | PIN | Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -10 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-SR/10GBASE-SW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm | ||
