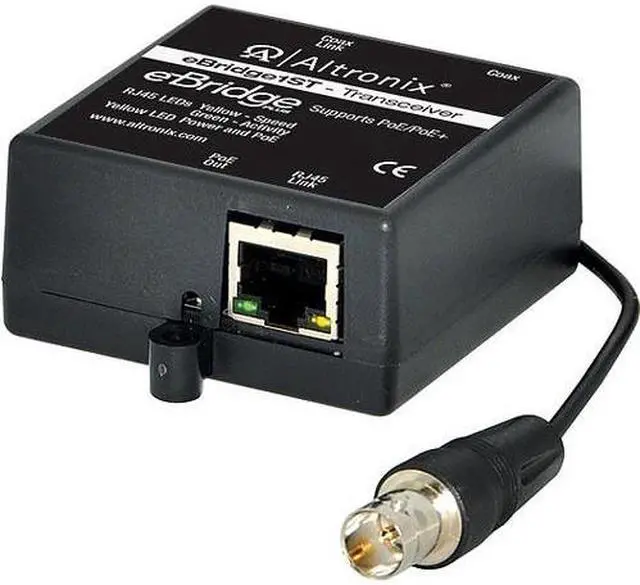

Altronix eBridge1ST EoC and PoE/PoE+ Transceiver

eBridge1ST EoC transceiver transmits data at 25Mbps over Coax cable to a paired eBridge receiver and provides power in a PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options (see compatibility list below/Altronix.com), including built-in midspan, or for use with an external midspan, such as the Altronix Netway series to facilitate network applications. The receiver passes PoE+ power over the same coax cable to the eBridge1ST transceiver, which, in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost-effective solutions for IP devices. They can be installed at distances greater than 500m. They provide a simple way to replace legacy analog products with new IP devices over existing coax. Applications:

• Retrofit digital IP cameras in an analog CCTV installation.
• Works with IP Megapixel and non Megapixel cameras.
• Extend Network link distance in an industrial environment over 610m.
• Upgrade deployed CCTV Coax to a digital network in Retail, Casinos, Airports, Schools, Hospitals, etc.

Features

* Product Type: Transceiver/Media Converter
* Maximum Distance Supported: 1640.42 ft
* Power Source: PoE+
* Product Type: Transceiver/Media Converter
* Maximum Distance Supported: 1640.42 ft
* Power Source: PoE+
* Limited Warranty: Lifetime
* Weight (Approximate): 3.52 oz
* Network Technology: 10/100Base-TX
* Product Name: eBridge1ST EoC and PoE/PoE+ Transceiver
* Network Technology: 10/100Base-TX
* Product Line: eBridge1ST
* Brand Name: Altronix
* Brand Name: Altronix
* Height: 1.1"
* Width: 2.3"
* Depth: 2.6"
* Ethernet Technology: Fast Ethernet
* USB: No
* DVI: No
* Number of Network (RJ-45) Ports: 1
* Network (RJ-45): Yes
* Product Family: eBridge1ST
* Number of PoE (RJ-45) Ports: 1
* Media Type Supported: Twisted Pair
* Media Type Supported: Optical Fiber
* Total Number of Ports: 1
* Ethernet Technology: Fast Ethernet
* USB: No
* DVI: No
* Number of Network (RJ-45) Ports: 1
* Network (RJ-45): Yes
* Management Port: No
* Number of PoE (RJ-45) Ports: 1
* Media Type Supported: Twisted Pair
* Media Type Supported: Optical Fiber
* Total Number of Ports: 1
* Product Type: Transceiver/Media Converter
* Maximum Distance Supported: 1640.42 ft
* Power Source: PoE+
* Network Technology: 10/100Base-TX
* Brand Name: Altronix
* Ethernet Technology: Fast Ethernet
* USB: No
* DVI: No
* Number of Network (RJ-45) Ports: 1
* Network (RJ-45): Yes
* Product Family: eBridge1ST
* Number of PoE (RJ-45) Ports: 1
* Media Type Supported: Twisted Pair
