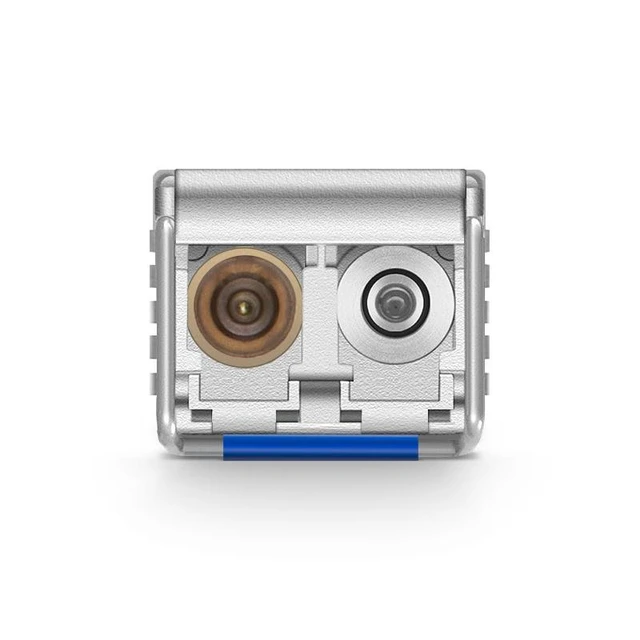

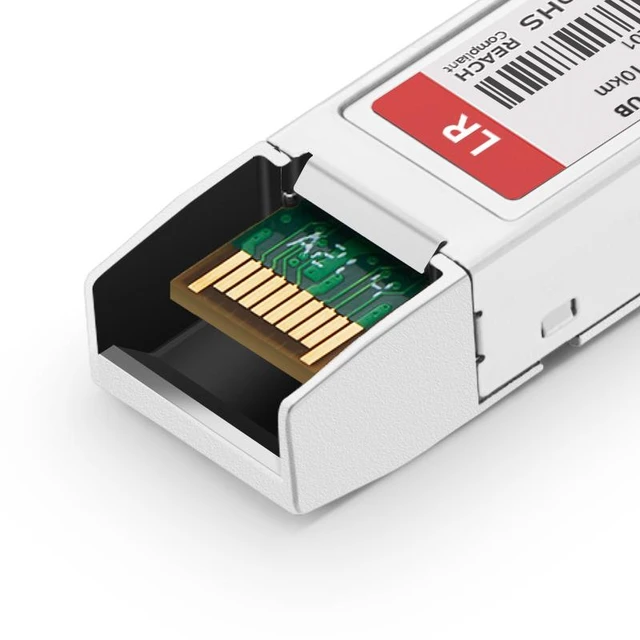

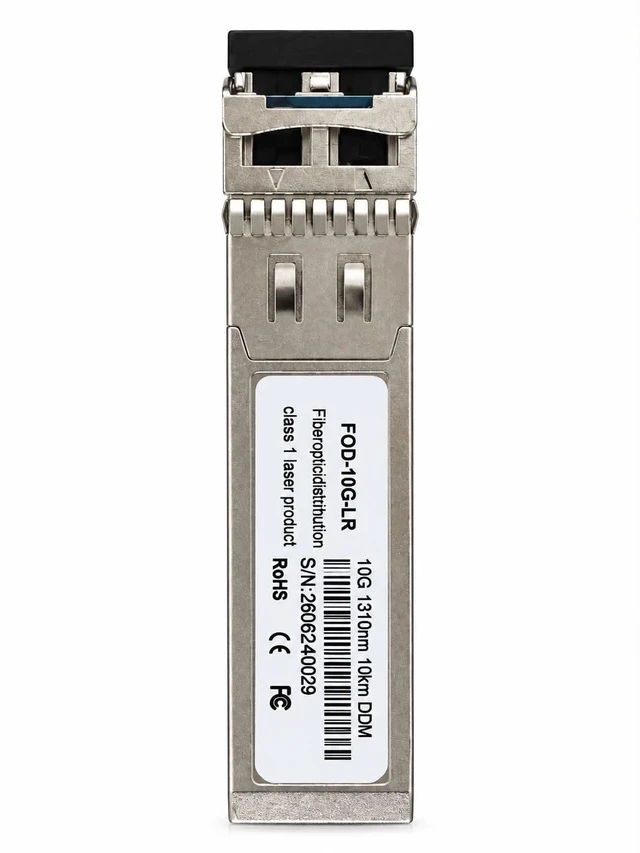

Extreme Networks 10GB-LR-SFPP Compatible 10GBASE-LR SFP+ Transceiver Module, 1310nm SMF, 10km, LC, DOM
- Direct replacement for the Extreme Networks 10GB-LR-SFPP 10GBASE-LR SFP+ module
- Also replaces the identically coded Enterasys 10GB-LR-SFPP
- Coded and tested in Extreme Summit, ExtremeSwitching, and legacy Enterasys platforms
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 10km reach at 1310nm over single-mode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Extreme Networks 10GB-LR-SFPP Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
This Extreme Networks 10GB-LR-SFPP compatible SFP+ transceiver carries 10GBASE-LR and 10GBASE-LW traffic up to 10 kilometers over single-mode fiber at 1310nm through an LC duplex interface. Because Extreme carried the Enterasys part numbering forward after the acquisition, the same module also serves as a replacement in legacy Enterasys switches. Built-in Digital Optical Monitoring reports temperature, voltage, and optical power in real time, so a degrading link shows up before it drops.
The module meets the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, so it interoperates cleanly in mixed-vendor networks. It suits Summit and ExtremeSwitching uplinks, campus backbones, building-to-building fiber runs, metro area links, and data center interconnects. Every unit is engineered, produced, and tested in-factory, then verified in real network hardware before it ships. Against the OEM part it can cut optical cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | 10GB-LR-SFPP | Manufacturer Part# | FOD-EXT-10GBLRSFPP | |
| Form Factor | SFP+ | Data Rate | 10 Gbps | |
| Wavelength | 1310 nm | Media Type | SMF | |
| Max Distance | 10 km | Transmitter Type | DFB | |
| Receiver Type | PIN | Transmitter Power | -6 ~ 0 dBm | |
| Receiver Sensitivity | < -14.4 dBm | Extinction Ratio | > 3.5 dB | |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex | |
| Power Consumption | 1 W | DDM/DOM | Yes | |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C | |
| Application | 10GBASE-LR/10GBASE-LW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg | |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
