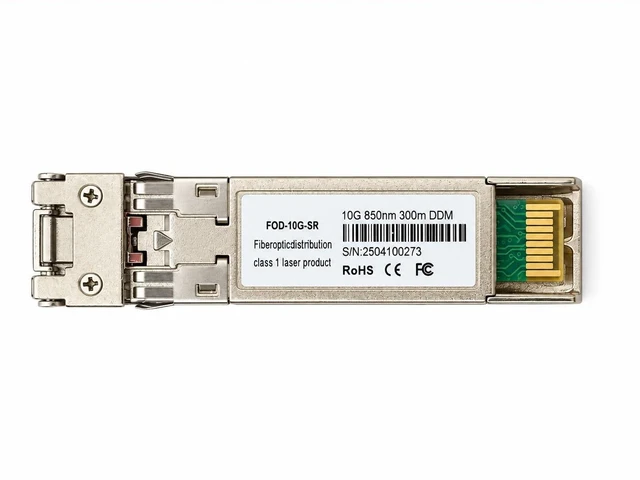

Avago AFBR-709SMZ Compatible 10GBASE-SR SFP+ Transceiver Module, 850nm MMF, 300m, LC, DOM
- Direct replacement for the Avago AFBR-709SMZ 10GBASE-SR SFP+ module
- Uncoded MSA-standard build, drops into hardware that accepts standards-based optics
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 300m reach on OM3, 400m on OM4, and 82m on OM2 multimode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- VCSEL transmitter with PIN receiver at 850nm
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Avago AFBR-709SMZ Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
This Avago AFBR-709SMZ compatible SFP+ transceiver carries 10GBASE-SR and 10GBASE-SW traffic over multimode fiber at 850nm through an LC duplex interface, reaching 300 meters on OM3, 400 meters on OM4, and 82 meters on older OM2. The AFBR-709 series is a widely qualified SR part, which is why many switch and adapter vendors list it as a supported optic.
Avago (now Broadcom) sells standards-based optics rather than vendor-coded modules, so this one ships uncoded to the SFP+ MSA and works in open networking platforms, white-box switches, server adapters, media converters, and any MSA-compliant equipment. Built-in Digital Optical Monitoring reports temperature, voltage, and optical power in real time, so a dirty connector or fading transmitter shows up before it drops a link. The module meets SFF-8431, SFF-8432, SFF-8472, and IEEE 802.3ae for clean interoperation with whatever optic sits at the far end.
Specifications
| Compatible OEM Part# | AFBR-709SMZ | Manufacturer Part# | FOD-AVG-AFBR709SMZ |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 850 nm | Media Type | MMF |
| Max Distance | 82m @ OM2, 300m @ OM3, 400m @ OM4 | Transmitter Type | VCSEL |
| Receiver Type | PIN | Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -10 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-SR/10GBASE-SW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm | ||
