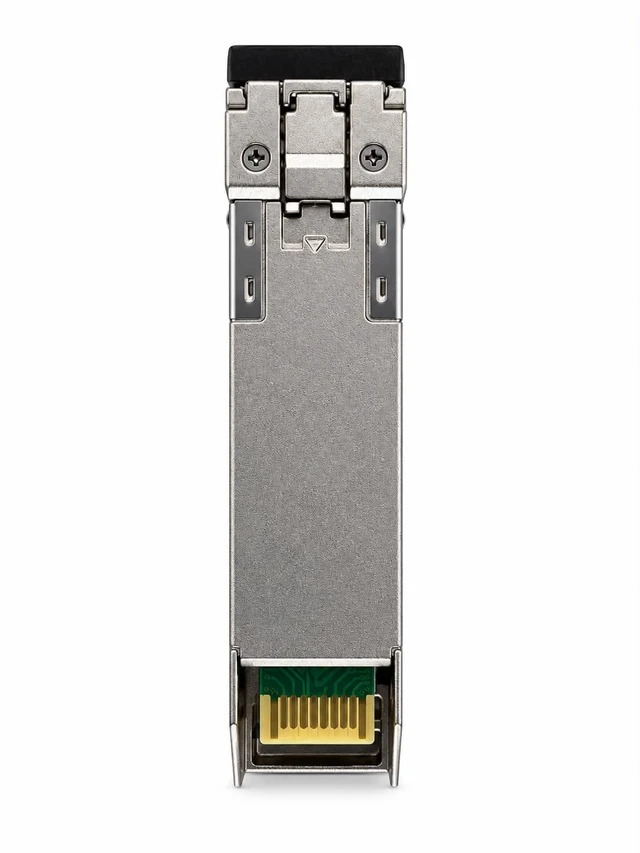

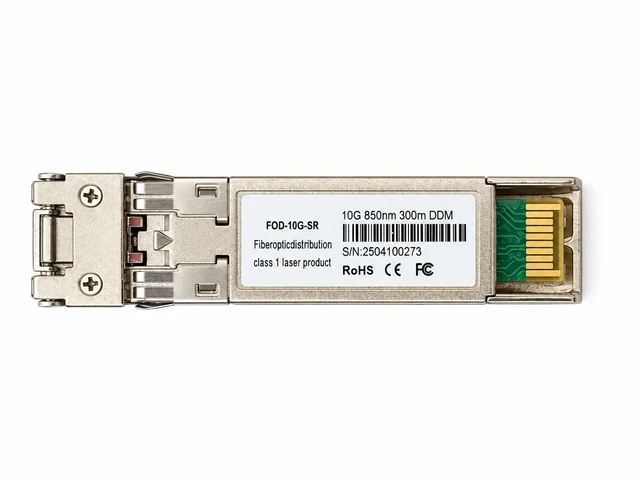

NetApp X6563-R6 / X6600A-R6 Compatible 10GBASE-SR SFP+ Transceiver Module, 850nm MMF, 300m, LC, DOM
- Direct replacement for the NetApp X6563-R6 and X6600A-R6 10GBASE-SR SFP+ modules
- Coded and tested in NetApp FAS and AFF storage controllers
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 300m reach on OM3, 400m on OM4, and 82m on OM2 multimode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- VCSEL transmitter with PIN receiver at 850nm
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
NetApp X6563-R6 / X6600A-R6 Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
This NetApp compatible SFP+ transceiver replaces both the X6563-R6 and the X6600A-R6, carrying 10GBASE-SR and 10GBASE-SW traffic over multimode fiber at 850nm through an LC duplex interface. It reaches 300 meters on OM3, 400 meters on OM4, and 82 meters on older OM2. Storage controllers and shelves normally sit in the same hall as the switches they connect to, so that reach covers data and cluster links with room to spare.
Built-in Digital Optical Monitoring reports temperature, voltage, and optical power in real time. On storage traffic, a degrading link often shows up as latency long before it fails outright, so early visibility helps. The module meets the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards for clean interoperation with whatever optic sits at the far end.
Every unit is programmed with NetApp EEPROM coding and tested in NetApp 10G storage systems and network interface cards before it ships, so the port recognizes it exactly as it would the OEM part.
Specifications
| Compatible OEM Part# | X6563-R6, X6600A-R6 | Manufacturer Part# | FOD-NTA-X6563R6 |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 850 nm | Media Type | MMF |
| Max Distance | 82m @ OM2, 300m @ OM3, 400m @ OM4 | Transmitter Type | VCSEL |
| Receiver Type | PIN | Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -10 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-SR/10GBASE-SW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm | ||
