Supermicro AOC-E10GSFPSR Compatible 10GBASE-SR SFP+ Transceiver Module, 850nm MMF, 300m, LC, DOM
- Direct replacement for the Supermicro AOC-E10GSFPSR 10GBASE-SR SFP+ module
- Coded and tested in Supermicro servers, switches, and add-on network cards
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 300m reach on OM3, 400m on OM4, and 82m on OM2 multimode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- VCSEL transmitter with PIN receiver at 850nm
- Power draw under 1 W
- LC duplex connector, hot-pluggable
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

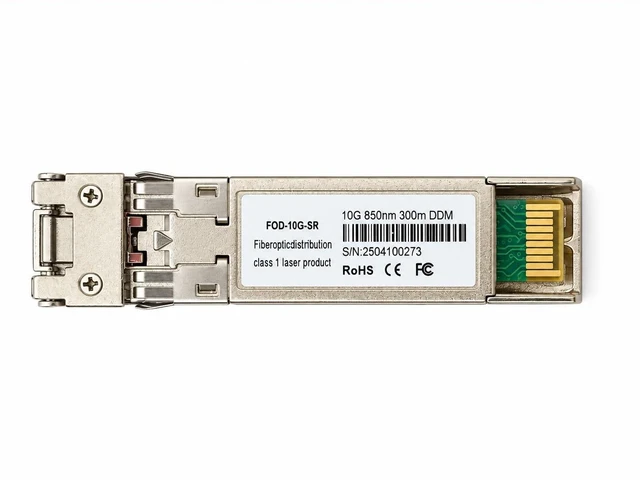

Supermicro AOC-E10GSFPSR Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
This Supermicro AOC-E10GSFPSR compatible SFP+ transceiver carries 10GBASE-SR and 10GBASE-SW traffic over multimode fiber at 850nm through an LC duplex interface, reaching 300 meters on OM3, 400 meters on OM4, and 82 meters on older OM2. Server-to-switch links inside a rack or across a row fall well within that range, which is where most add-on card connections terminate.
Built-in Digital Optical Monitoring reports temperature, voltage, and optical power in real time, so a dirty connector or fading transmitter is visible in monitoring before it drops a server link. The module meets the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards for clean interoperation in mixed-vendor networks.
Every unit is programmed with Supermicro EEPROM coding and tested in Supermicro 10G servers, switches, and network interface cards before it ships, so the port recognizes it exactly as it would the OEM AOC-E10GSFPSR, at a much lower price.
Specifications
| Compatible OEM Part# | AOC-E10GSFPSR | Manufacturer Part# | FOD-SM-AOCE10GSFPSR |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 850 nm | Media Type | MMF |
| Max Distance | 82m @ OM2, 300m @ OM3, 400m @ OM4 | Transmitter Type | VCSEL |
| Receiver Type | PIN | Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -10 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-SR/10GBASE-SW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm | ||
