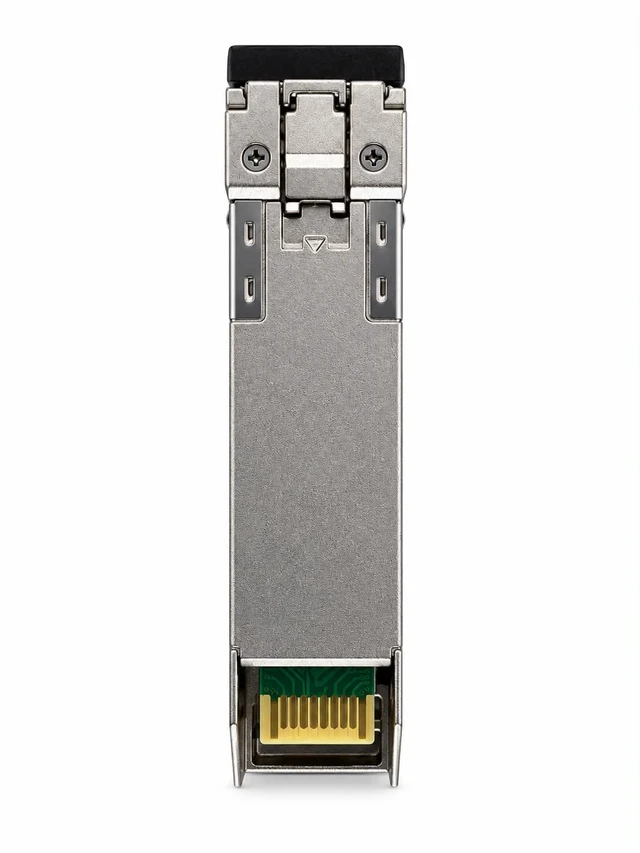

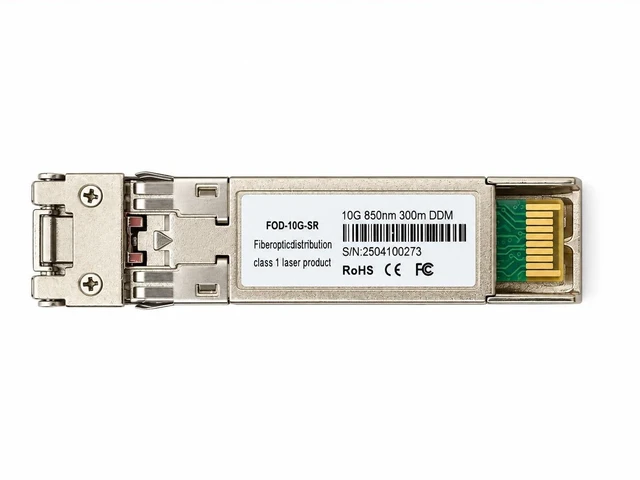

Supermicro AOC-TSR-FS Compatible 10GBASE-SR SFP+ Transceiver Module, 850nm MMF, 300m, LC, DOM
- Direct replacement for the Supermicro AOC-TSR-FS 10GBASE-SR SFP+ module
- Coded and tested in Supermicro servers, switches, and add-on network cards
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 300m reach on OM3, 400m on OM4, and 82m on OM2 multimode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- VCSEL transmitter with PIN receiver at 850nm
- Power draw under 1 W
- LC duplex connector, hot-pluggable
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Supermicro AOC-TSR-FS Compatible 10GBASE-SR SFP+ Transceiver Module (MMF, 850nm, 300m, LC, DOM)
Give a Supermicro server a 10 Gigabit fiber link over the multimode plant already in the rack row. This AOC-TSR-FS compatible SFP+ transceiver runs 10GBASE-SR and 10GBASE-SW traffic at 850nm through an LC duplex pair, covering 300 meters on OM3, 400 meters on OM4, and 82 meters on older OM2.
Digital Optical Monitoring is built in, feeding back live temperature, voltage, and optical power so a contaminated connector or weakening transmitter surfaces during maintenance rather than during an outage. Built to the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, it interoperates cleanly with whatever optic sits at the far end.
Each unit is written with Supermicro EEPROM coding and bench-verified in Supermicro 10G servers, switches, and network interface cards before shipping, so the port accepts it exactly as it would the OEM AOC-TSR-FS, without the OEM price.
Specifications
| Compatible OEM Part# | AOC-TSR-FS | Manufacturer Part# | FOD-SM-AOCTSRFS |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 850 nm | Media Type | MMF |
| Max Distance | 82m @ OM2, 300m @ OM3, 400m @ OM4 | Transmitter Type | VCSEL |
| Receiver Type | PIN | Transmitter Power | -6 ~ -1 dBm |
| Receiver Sensitivity | < -10 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-SR/10GBASE-SW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm | ||
