Wiitek SFP+ to RJ45 Copper Modules, 10GBase-T Transceiver Compatible for Ubiquiti, Netgear, Mikrotik, Unifi (Cat 6a/7 or Better, 30-Meter), Backward Work for 5GBase-T, 2.5GBase-T Juniper
- WIDE COMPATIBILITY:This 10G Copper SFP+ Transceiver is 100% compatible for Cisco SFP-10G-T-X, Ubiquiti, D-link, TP-LINK, Supermicro, Netgear, Mikrotik, Unifi and Other Open Switches, connecting 10g ethernet Switch, Edge Router, media converter;
- CABLE DISTANCE:10GBase-T SFP Module supports Links up to 30m using Cat 6a/7 or Better Cable , works for 5GBase-T, 2.5GBase-T using Cat 6a/7, and 1000Base-T using Cat 5e cable or better(10G SFP+ Ports);
- PROTOCOLS: 10Gb RJ45 SFP Compatible SFF-8431 and SFF-8432 MSA , IEEE 802.3az; Each Module is individually 100% tested on the 10G RJ45 Ethernet Switch before delivery;
- HOT SWAPPABLE:Hot-swappable transceivers that plugs into an 10Gb SFP+ port,plug and play,no need to power down if installing or replacing;Less than 2.5W Power Consumption;RoHS compliant (lead free);
- SUPPORT: 30 Days Free-returned, 3-year Product Quality Assurance, Free Lifelong Technology Support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

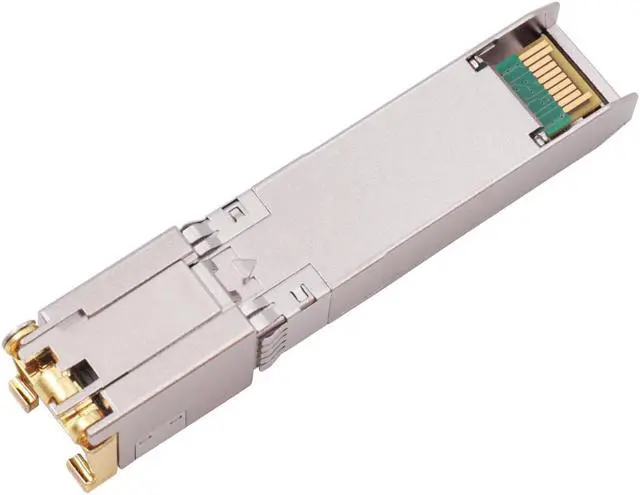

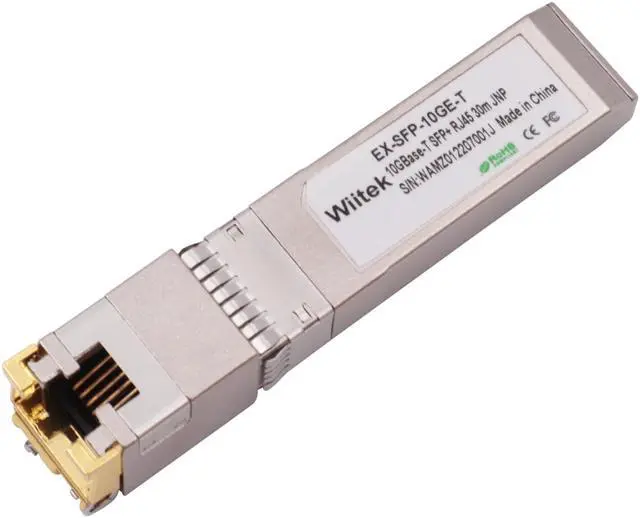

10GBase-T SFP+ 10 Gigabit RJ45 Copper SFP Transceiver 30-Meter
Features

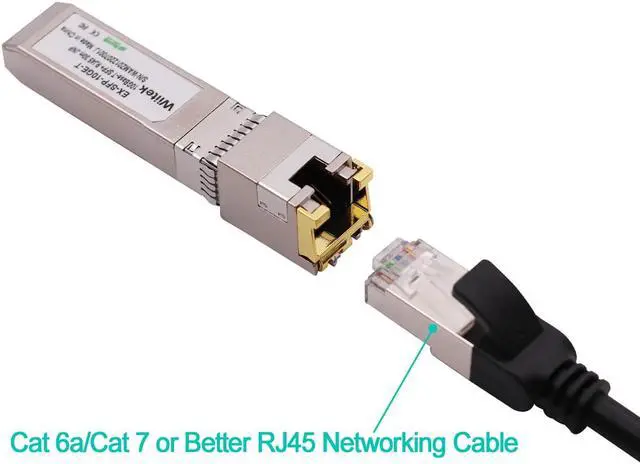

Supports Links up to 30m using Cat 6A/7 or Better Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3 az and 802.3 an Compliant
IEEE 802.3 bz for 5G& 2.5G BASE-T
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+ 3.3V single power supply
Low Power Consumption ( 2.5W MAX @ 30m)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C

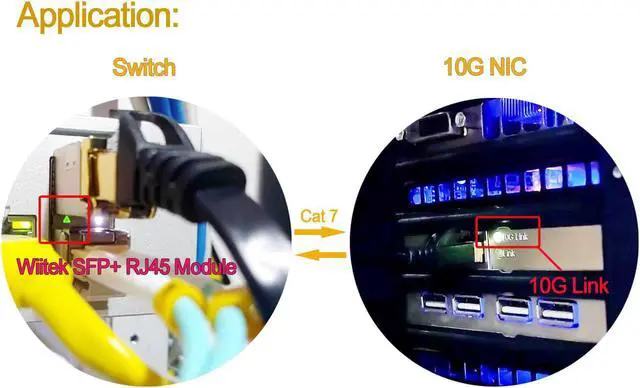

Applications
10 Gigabit Ethernet over Cat 6A cable
5 Gigabit Ethernet over Cat 6A cable
2.5 Gigabit Ethernet over Cat 6A cable
1.25 Gigabit Ethernet over Cat 5e cable
Features
Supports Links up to 30m using Cat 6A/7 or Better Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3 az and 802.3 an Compliant
IEEE 802.3 bz for 5G& 2.5G BASE-T
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+ 3.3V single power supply
Low Power Consumption ( 2.5W MAX @ 30m)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
XFI/5GBASE-R/2500BASE-X/SGMII, SGMII Auto-Negotiation On
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
Applications
10 Gigabit Ethernet over Cat 6A cable
5 Gigabit Ethernet over Cat 6A cable
2.5 Gigabit Ethernet over Cat 6A cable
1.25 Gigabit Ethernet over Cat 5e cable
