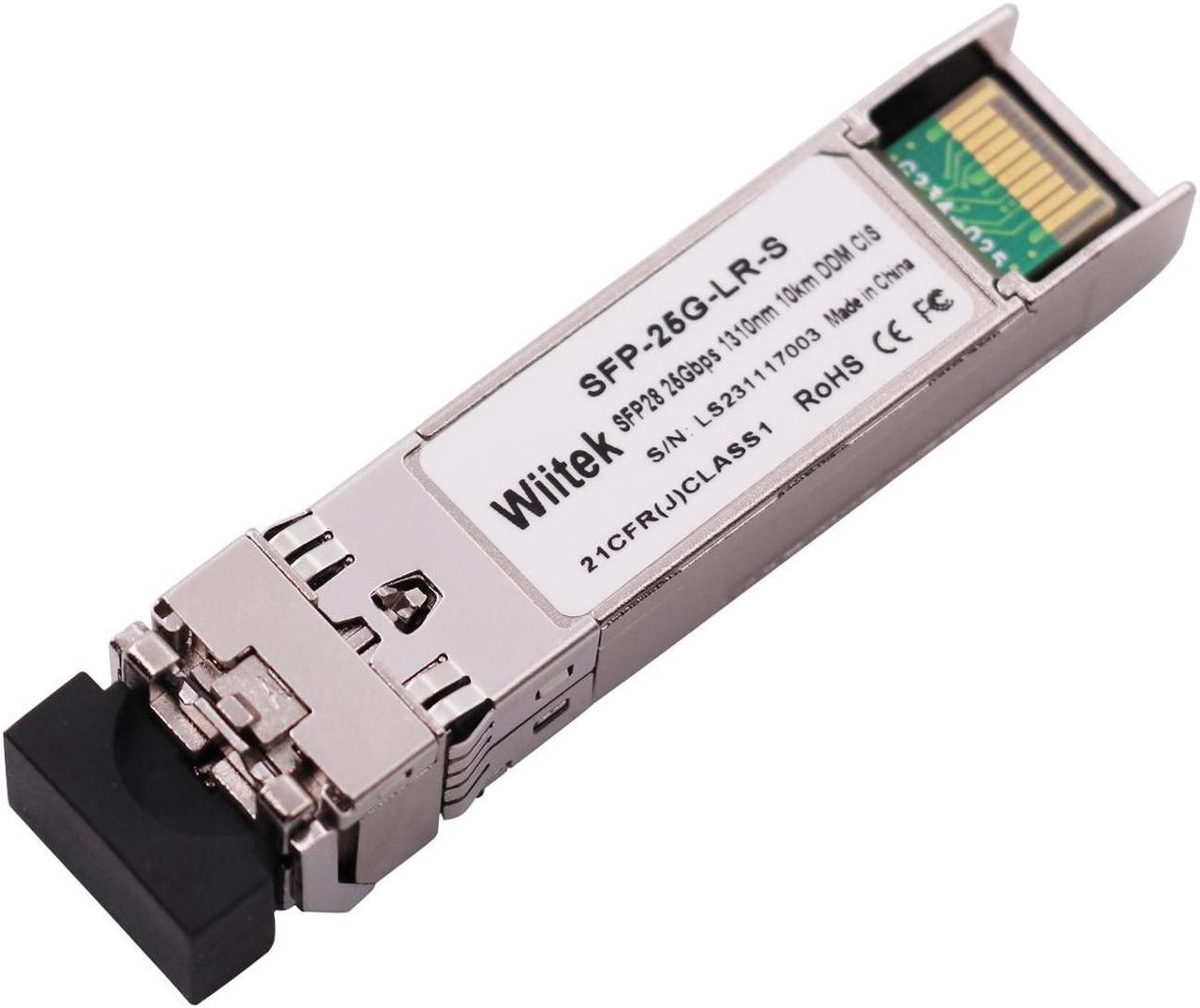

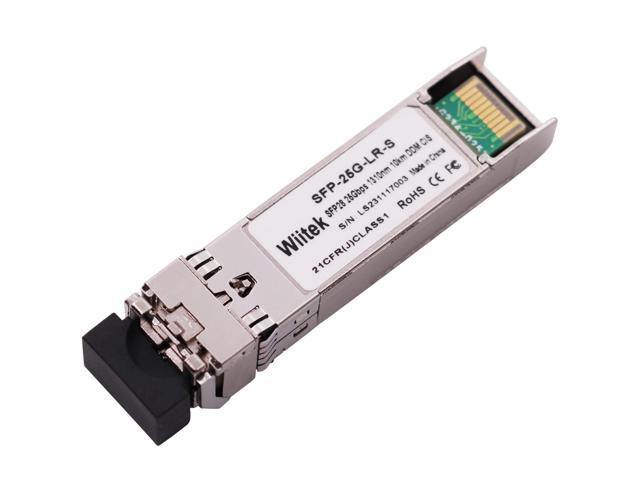

    Wiitek 25G SFP28 SFP+ Optical Transceiver, 25GBase-LR Duplex LC SMF Module, 1310nm, DDM, up to 10km for Cisco SFP-25G-LR-S, Ubiquiti UACC-OM-SFP28-LR, Netgear, Mikrotik, Unifi and More

    Be the first to review this product...
    • * 25GBase-LR SFP28 to duplex LC singlemode fiber transceiver, Data Rate:25Gbps, Wavelength: 1310nm DFB, Connector Type: Dual LC, +3.3V, Reach: up to 10km on 9/125m SMF;
    • * 100% Compatible with Cisco SFP-25G-LR-S, Ubiquiti UACC-OM-SFP28-LR, D-Link, Huawei, Netgear, Supermicro, TP-LINK, Quanta, and other open source switches;
    • * Each SFP28 module is individually tested on a series of Cisco switches, this 25G transceiver is ideal for 25G Ethernet, telecom, and data center;
    • * Hot Pluggable SFP28 footprint, compliant to SFP28 MSA, IEEE 802.3by and IEEE 802.3cc;
    • * Low Power Consumption below 1.2W, Easy installation;
    • * Working Temperature Range: 0 to 70°C, DDM Supported, put on antistatic gloves when using the module, and always insert the dust tap when it's not working;
    • * 30-Days Free-returned, 3 years Product Warranty, Lifelong time Technical Support and customer service
    +
    +
    Overview
    Specs
    Reviews
    Product Description
    Wiitek 25G SFP28 SFP+ Optical Transceiver, 25GBase-LR Duplex LC SMF Module, 1310nm, DDM, up to 10km for Cisco SFP-25G-LR-S, Ubiquiti UACC-OM-SFP28-LR, Netgear, Mikrotik, Unifi and other open source switches

    Features

    Compatible with CPRI option10 24.33G bps and 25GBASE 25.78G bps
    Up to 10km on 9/125m SMF
    1310nm DFB laser transmitter
    80nm high sensitivity PIN-TIA receiver
    SFP28 MSA compliant
    Built-in digital diagnostic functions
    Single + 3.3V power supply
    Operating case temperature: 0 to +70 °C
    RoHS 6 Compliant

    Application

    25GBASE-LR
    24.33G bps CPRI
    InfiniBand QDR, SDR, DDR
    Servers, switches, storage and host card adapters
