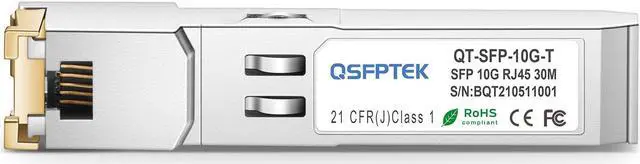

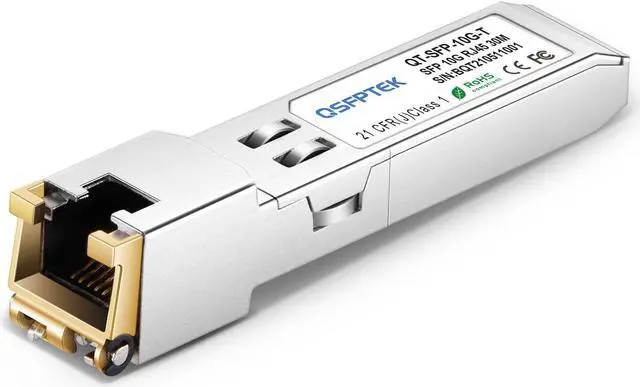

    QSFPTEK 10G SFP+ RJ45 Copper Module Transceiver 10GBASE-T for Cisco SFP-10G-T-S, Ubiquiti UF-RJ45-10G, Netgear, other Open Switches, Reach 30m

    Be the first to review this product...
    • Cisco
    • Arista
    • Intel
    • Juniper
    • Netgear
    • Ubiquiti
    • Wide Compatibility: Compatible for Cisco andopen switch: Cisco SFP-10G-T-S (NOT support on Cisco Nexus Series and Cisco Meraki Series), Ubiquiti UF-RJ45-10G, Netgear, and Other Open Switches.
    • 10GBASE-T SFP+ to RJ45 transceiver module for CAT6A/CAT7 cable, copper RJ-45 connector, up to 30m. 10Gb/s data rate (NOT support downward compatibility with 10/100/1000M data rate), working temperature: 0 ~ +70.
    • Easy to use: Plug and play, fully hot-pluggable. Rotate the ring latch down at 90 degree angle to unlock, then pulling transceiver out from switch.
    • High Quality: All of products are manufactured under strict quality control system, every module has been tested one by one on different switches before shipping, to ensure compatibility with different brand of switch.
    • After-sales Service: 30-day free return, 1-year warranty, lifetime technology support. If you are not sure about the compatibility of your device, please feel free to contact us.
    Choking Hazard Small parts. Not for children under 3 years.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    10GBase-T SFP+ RJ45 Copper Module Transceiver compatible for Cisco, Ubiquiti, other Open Switches
    Data Rate: 10Gb/s (not support downward compatibility with 10/100/1000M data rate)
    Reach: 30M
    Temperature: 0 ~ +70

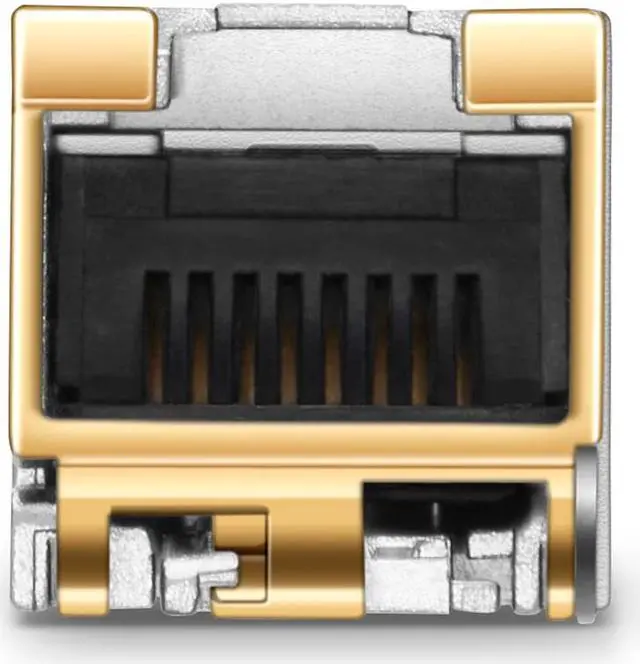

    Interface: copper RJ-45 connector
    NOT support on Cisco Nexus Series and Cisco Meraki Series

    Features:
    Supports Links up to 30m using Cat 6a/7 Cable
    SFF-8431 and SFF-8432 MSA Compliant
    IEEE 802.3 az Compliant
    Low Power Consumption ( 2.5W MAX @ 30m)
    Fast Retrain EMI Cancellation Algorithm
    Low EMI Emissions
    I2C 2-Wire Interface for Serial ID and PHY Register Access
    Auto-negotiates with other 10GBase-T PHYs
    MDI/MDIX Crossover
    Multiple Loopback Modes for Testing and Troubleshooting
    Built-in Cable Monitoring and Link: Cable Length Measurements; Opens/Shorts
    Robust Die Cast Housing
    Bail Latch Style ejector mechanism
    Unshielded and Shielded cable support




















    10G sfp+ sfp to rj45 copper module
    Products

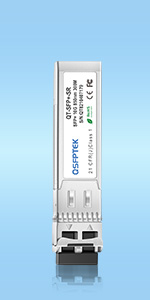

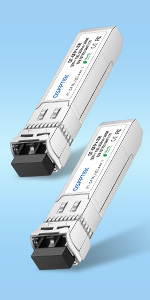

    10g-sfp-sr 10GBase-SR SFP+ Transceiver

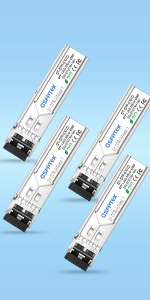

    10g sfp+ lr 2pcs 10GBase-SR SFP+ Transceiver

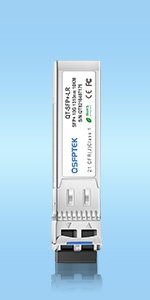

    10g-sfp+ lr 10GBase-LR SFP+ Transceiver

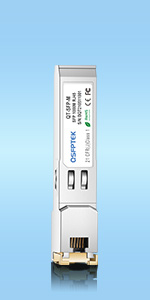

    1.25g sfp to rj45 copper module 1000Base-T RJ45 SFP Module
    0310 sfp module transceiver ddm 4pcs 1000Base-LX SFP Transceiver

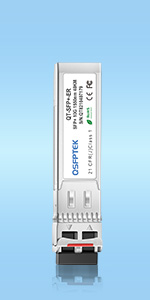

    10g-sfp-er 40km 10GBASE-ER SFP+ Transceiver
    Distance 300M 300M 10KM 100M 10KM 40KM
    Wavelength 850nm 850nm 1310nm 1310nm 1550nm
    Data rate 10G 10G 10G 1000Mbase 1000Mbase 10G
    Connector LC LC LC RJ45 LC LC
    Temperature 0 ~ +70 0 ~ +70 0 ~ +70 0 ~ +70 0 ~ +70 0 ~ +70
    Fiber Type MMF MMF SMF RJ45 CABLE SMF SMF
    Source VCSEL/PIN VCSEL/PIN DFB/PIN FP+PIN DFB/PIN

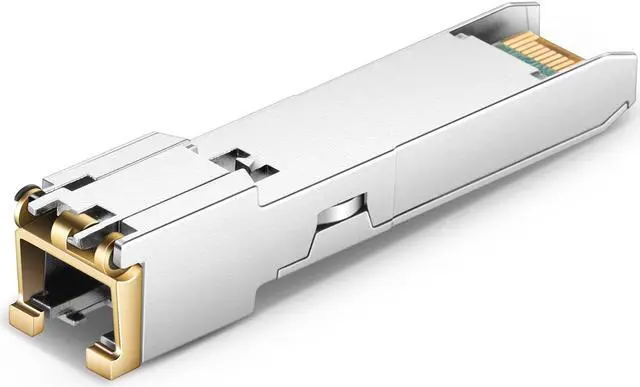

    10GBase-T SFP+ Transceiver, 10G T, 10G Copper
    Low Power Consumption

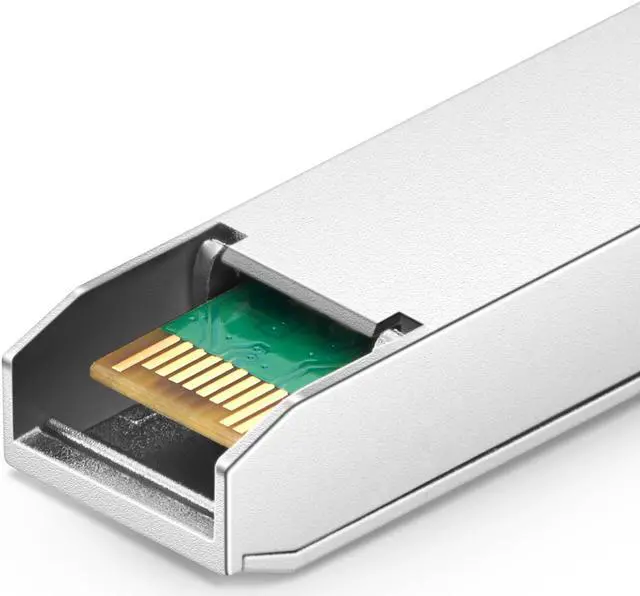

    Less than 2.5W power dissipation, heat-conducting gasket provide superior heat dissipation function to increases its service life & save costs wisely.

    10G T, 10G Copper, RJ-45 SFP+
    Easy to Use and Durable

    Supports hot-pluggable. Rotate the ring latch down at 90 degree angle to unlock, then pulling transceiver out from switch.



    10GBase-T SFP+ Transceiver
    Strict Performance Test

    Manufactured under strict quality control system. Every module had been tested before shipping, to ensure compatibility with switches & routers.

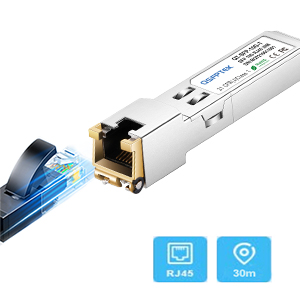

    10GBase-T SFP+ Transceiver use

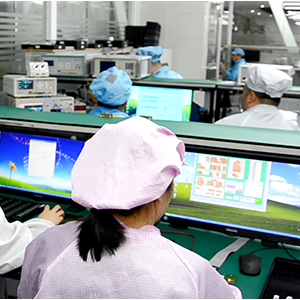

    Manufacturer and Global Sales

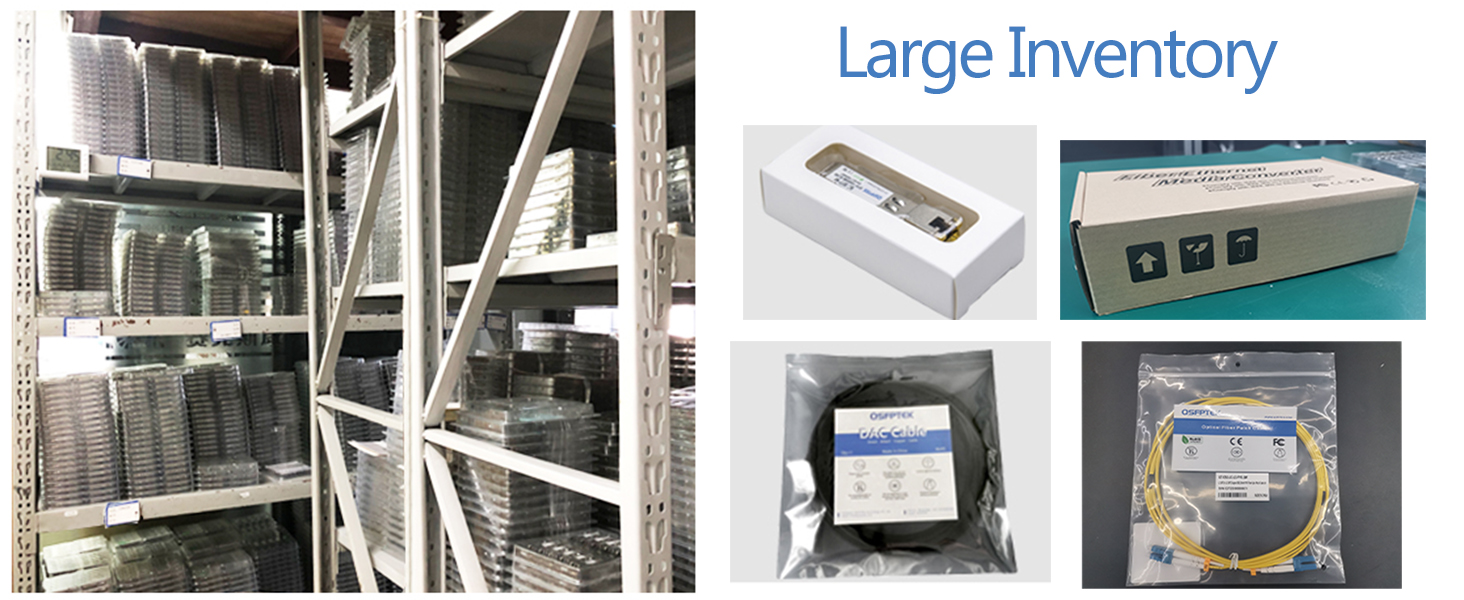

    QSFPTEK QC department enforces strict and high standards from raw material components procurement, production, assembling, and test.

    10G-SR SFP+ LC Transceiver, Multi-Mode SFP Module
