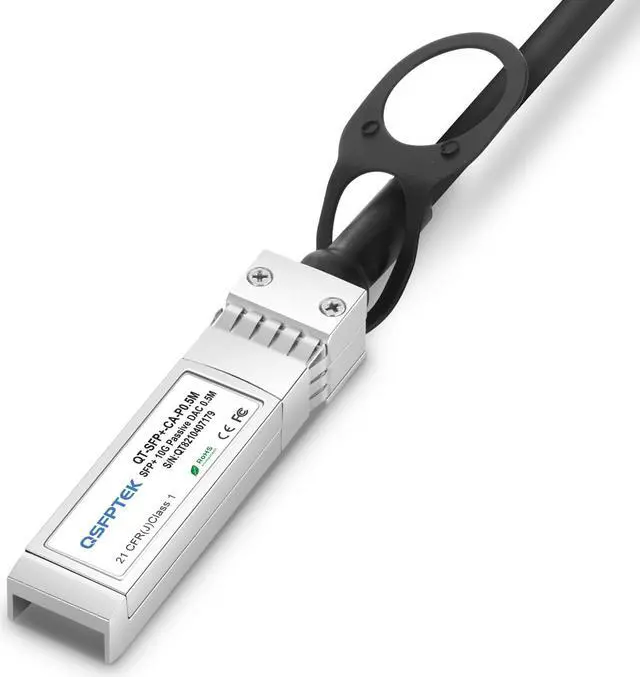

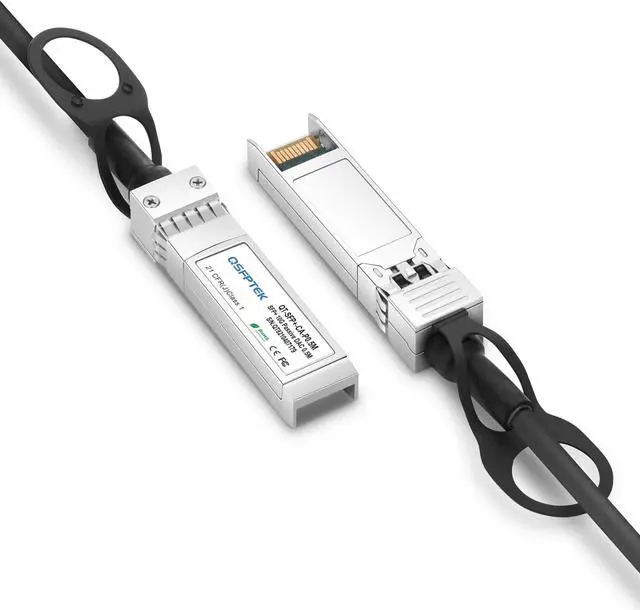

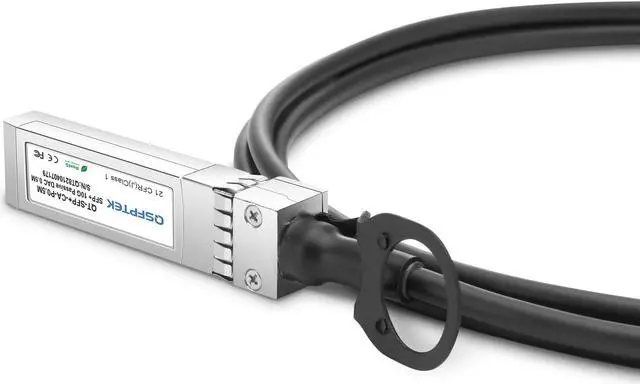

QSFPTEK 10G SFP+ DAC Cable, 0.5m (2ft) Passive Direct Attach Copper Twinax Cable for Cisco SFP-H10GB-CU50CM, Ubiquiti, D-Link, Netgear, Mikrotik, Open Switch Devices
- ^^DAC Feature: 10Gb SFP+ to SFP+ Direct Attach Copper Twinax Cable, Passive, 0.5-meter, AWG30. Widely compatible for Cisco, Ubiquiti, D-link, Netgear, Mikrotik, other Open Switch, etc devices. Notes: The SFP+ cable work as like SFP+ moudle will have cannot use in Encryption code Switch. This DAC cable cannot use in HP or Intel and other need special Encryption code switch.
- ^^Wide Application: 10G SFP+ DAC Twinax Cable can connect switch, router, server, NIC, or other fiber optic equipments with SFP+ ports for Network Attached Storage, Storage Area Network, and High Performance Computing.
- ^^Low power consumption: Passive SFP+ DAC has a low power less than 0.5W With EEPROM. Commercial temperature range: 0 ~ 70 °C.
- ^^Easy to use: Plug and play, hot-pluggable, no software and drivers require. External adopt the standartd Gold plating plug to ensure can repeatedly plug.
- ^^Customized 10GBASE SFP+ PCC are available in various lengths. The Wire Gauge can be customized if it is required, like A
+
+
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
These assemblies are called passive copper cables because there isnt any signal conditioning circuitry (e.g. crosstalk or echo cancellation) contained within the SFP+ connector. Sometimes these assemblies are referred to as DAC or Direct Attached Copper cables. Inside the SFP+ MSA footprint optical cables can be used that require optical transceivers or Active Optical Cables (AOC) that contain the transceiver as part of the cable.
10G SFP+ DAC Twinax Cable for Cisco, Ubiquiti, D-link, Netgear, Mikrotik, Open Switch Devices.
Connector Type: SFP+ to SFP+
Max Data Rate: 10Gbps
Minimum Bend Radius: 23mm
Wire AWG: 30AWG
Cable Length: 0.5m (1.64ft)
Jacket Material: PVC (OFNR)
Temperature: 0 to 70°C (32 to 158°F)
Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel
These assemblies are called passive copper cables because there isnt any signal conditioning circuitry (e.g. crosstalk or echo cancellation) contained within the SFP+ connector. Sometimes these assemblies are referred to as DAC or Direct Attached Copper cables. Inside the SFP+ MSA footprint optical cables can be used that require optical transceivers or Active Optical Cables (AOC) that contain the transceiver as part of the cable.
10G SFP+ DAC Twinax Cable for Cisco, Ubiquiti, D-link, Netgear, Mikrotik, Open Switch Devices.
Connector Type: SFP+ to SFP+
Max Data Rate: 10Gbps
Minimum Bend Radius: 23mm
Wire AWG: 30AWG
Cable Length: 0.5m (1.64ft)
Jacket Material: PVC (OFNR)
Temperature: 0 to 70°C (32 to 158°F)
Protocols: 1x InfiniBand QDR, DDR, SDR, 10G Gigabit Ethernet, Fibre Channel
