Media Converter, Gigabit Ethernet Single Mode Dual SC Fiber, Mini 1x 10/100/1000Base-T RJ45 to 1x 1000Base-LX SFP Slot Ethernet Media Converter, up to 20km
- 1x Multimode Dual SC fiber Optical Port: 1.25Gbps, 850nm wavelength, 1x RJ45 Port: UTP CAT5 10M/100M/1000M, Supports Full/Half Duplex auto-negotiation and MDI/MDIX auto-crossover.
- Equiped with high-quality chip to ensure stability and Ultra-low time-delay data transmission. Complies with IEEE 802.3/802.3u/802.3z/802.3ab, 10/100/1000Base-TX/FX. Supports jumbo frame size 9K byte.
- Modulization configuration design, support hot-swappable, plug and play. And LED indicators for TX, FX LINK/ACT, POWER, FDX can dynamic feedback link connection state and fault detection to easily monitor network status.

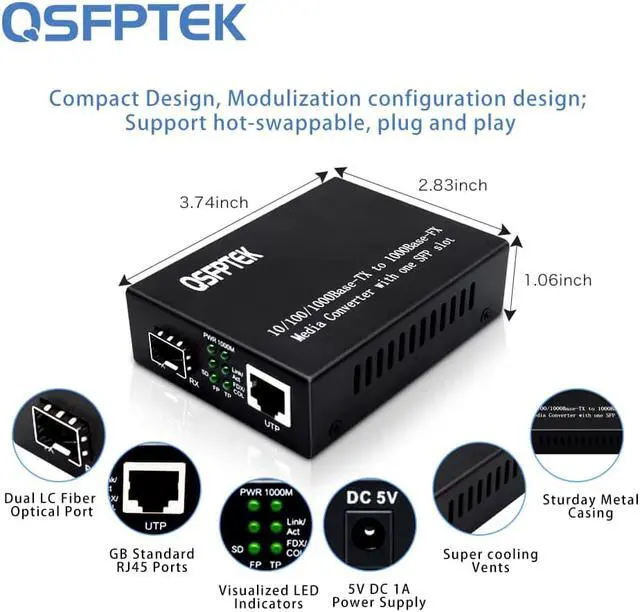

- Only 93mm x 72mm x 27mm(3.7"x 2.8"x 1.1") in measurement. Its compact modular design facilitates deployment in a narrow desktop location to save space.
- Product List: 1x Multimode Gigabit Ethernet Media Converter, 1x DC Power Adapter, 1x Product Manual. 30-day Money-Back guarantee, lifetime tech support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

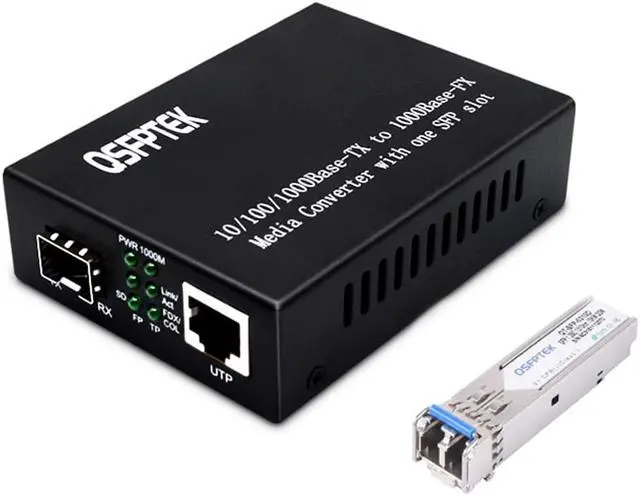

10/100/1000Base-Tx to 1000Base-SX Dual SC Fiber Gigabit Media Converter
RJ45 Port Data Rate: 10/100/1000M auto-negotiation
Optical Port Data Rate: 1.25Gbps
Interface: 1x Dual SC Port, 1x RJ45 Port
Fiber Type: Multimode
Fiber Connector: Dual SC Fiber
Wavelength: 850nm
Reach: 550m
Temperature Range: 0°C to 60°C
Included Power Supply: Yes
Power Supply: 5V DC/1A
Power dissipation: 3 watts
External Power: AC 100V~240V
Dimensions: 95 x 72 x 27mm(D x W x H)
Weight: 0.35kg
Housing: Metal enclosure
Product List:
1x Gigabit Ethernet Media Converter
1x DC Power Adapter
1x Product Manual

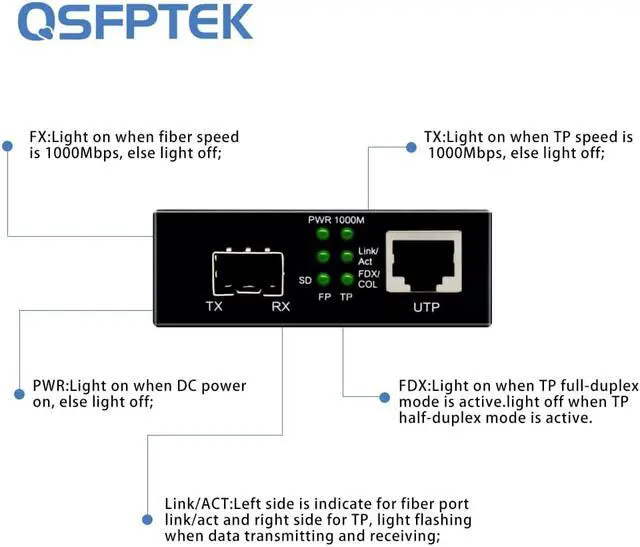

LED Indicators:
1. FX: Light on when fiber speed is 1000Mbps, else light off.
2. TX: Light on when TP speed is 1000Mbps, else light off.
3. Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4. FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5. PWR: Light on when DC power on, else light off.
Feature:
1. High-quality Conversion Chip: Lightning protection. Strong anti-interference ability.High-speed and stability signal conversion.
2. UL Certified Power Adapter: Safety standards: UL/EN60950 GB4943. High reliability, security and efficiency.
3. Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
4. Easy Installation: Standalone design with simple plug-and-play set-up.
Wide Applications:

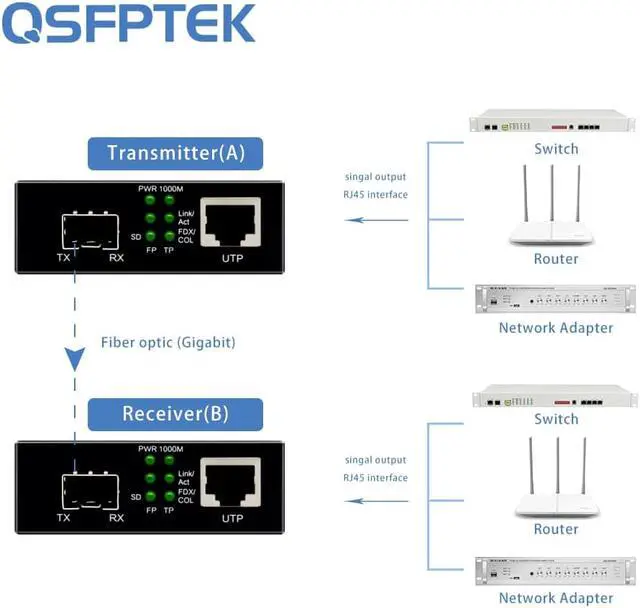

1. Extend or bridge networks using fiber cable.
2. Provide connectivity to users in an isolated area of a large complex or in a separate building.
3. Ideal for secure connections required by government or corporations where EMI is not acceptable.
RJ45 Port Data Rate: 10/100/1000M auto-negotiation
Optical Port Data Rate: 1.25Gbps
Interface: 1x Dual SC Port, 1x RJ45 Port
Fiber Type: Multimode
Fiber Connector: Dual SC Fiber
Wavelength: 850nm
Reach: 550m
Temperature Range: 0°C to 60°C
Included Power Supply: Yes
Power Supply: 5V DC/1A
Power dissipation: 3 watts
External Power: AC 100V~240V
Dimensions: 95 x 72 x 27mm(D x W x H)
Weight: 0.35kg
Housing: Metal enclosure
Product List:
1x Gigabit Ethernet Media Converter
1x DC Power Adapter
1x Product Manual
LED Indicators:
1. FX: Light on when fiber speed is 1000Mbps, else light off.
2. TX: Light on when TP speed is 1000Mbps, else light off.
3. Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving.
4. FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active.
5. PWR: Light on when DC power on, else light off.
Feature:
1. High-quality Conversion Chip: Lightning protection. Strong anti-interference ability.High-speed and stability signal conversion.
2. UL Certified Power Adapter: Safety standards: UL/EN60950 GB4943. High reliability, security and efficiency.
3. Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
4. Easy Installation: Standalone design with simple plug-and-play set-up.
Wide Applications:
1. Extend or bridge networks using fiber cable.
2. Provide connectivity to users in an isolated area of a large complex or in a separate building.
3. Ideal for secure connections required by government or corporations where EMI is not acceptable.
