Mellanox MMA4Z00-NS400 400Gb/s Single-port OSFP, 400Gb/s Multimode SR4 50m Transceiver - For Data Networking, Optical NetworkOptical Fiber - Multi-mode - 400 Gigabit Ethernet400 Gbit/s - 0.05 km Maxim

Be the first to review this product...

For Data Networking, Optical NetworkOptical Fiber
Multi-mode
400 Gigabit Ethernet400 Gbit/s
0.05 km Maximum Distance
Hot-pluggable

Overview

Specs

Reviews

See all Q & A

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

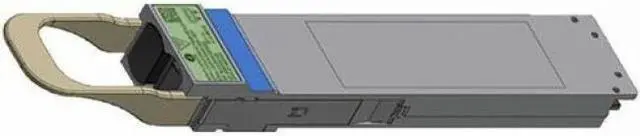

Introduction The NVIDIA MMA4Z00-NS400 is an InfiniBand (IB) and Ethernet (ETH) 400Gb/s, Single-port, OSFP, SR4 multimode parallel transceiver using a single, 4-channel MPO-12/APC optical connector. The Short Reach 4-channel (SR4) design uses 100G-PAM4 modulation and has a maximum fiber reach of 50-meters using OM4 multimode fiber and assumes two optical patch panels in the link. It has identical design and internals as the QSFP112 version, only with different connector shells. The transceiver firmware supports both InfiniBand and Ethernet and is automatically enabled depending on the protocol of the switch attached to.

The OSFP shell has a flat-top and utilizes the riding heat sink (cooling fins) on the ConnectX-7 connector cage. When linked to 1:2 splitter fiber cable split end has only 2 channels and will activate only 2-channels in the 400G transceiver automatically creating a 200G speed and reducing power. Multimode optics is denoted by a tan-colored pull tab and aqua-colored optical fiber. Green plastic shell on the MPO-12/APC optical connector denotes Angled Polish Connector and is not compatible with Ultra-flat Polished Connectors (UPC) (aqua colored). NVIDIA's Single-port and Twin-port transceiver combinations guarantee optimal operation in NVIDIA end-to-end systems and customer networking solutions.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.

Model
Brand	Mellanox

Details
Compatible Brand	Mellanox

Additional Information
First Listed on Newegg	February 12, 2025

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

Return for refund until: January 31, 2027
Return for replacement until: January 31, 2027
This item is covered by Newegg.com's Extended Holiday Return Policy.
Read full return policy for details.

Manufacturer Contact Info

The Mellanox MMA4Z00-NS400 is a hot-pluggable, single-port 400Gb/s OSFP multimode SR4 transceiver for high-speed data-networking links of up to 50 meters, suited to compatible Mellanox networking equipment and short-reach fiber connections.

Recommended For

Data-center teams building NVIDIA ConnectX-7 OSFP links to Quantum-2 InfiniBand or Spectrum-4 Ethernet switches, where the switch-side optics and cabling are designed for this 400G SR4 connection.
Operators connecting 400Gb/s server or accelerator networking over multimode fiber in a data-center run up to 50 m on OM4 or 30 m on OM3.
Network builders who need one OSFP transceiver for either InfiniBand or Ethernet, with the protocol enabled according to the attached switch.
NDR200 deployments that use a compatible 1:2 splitter fiber cable and need the transceiver to operate on two channels at 200Gb/s.

Spec Summary

Attribute	Value
Best For	400Gb/s multimode optical networking links
Brand And Compatibility	Mellanox brand; compatible with Mellanox equipment; manufacturer listed as NVIDIA Corporation
Physical Details	Item weight: 0.1 kg
Package And Battery Details	Package quantity: 1; batteries are neither required nor included

Item#: 2AS-05MR-00009
