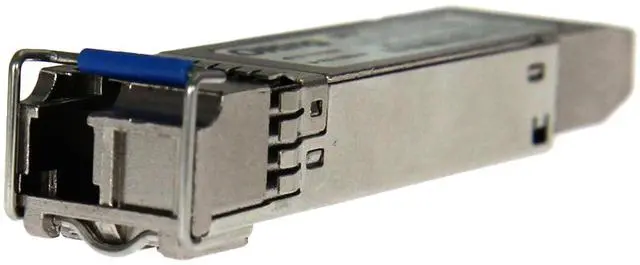

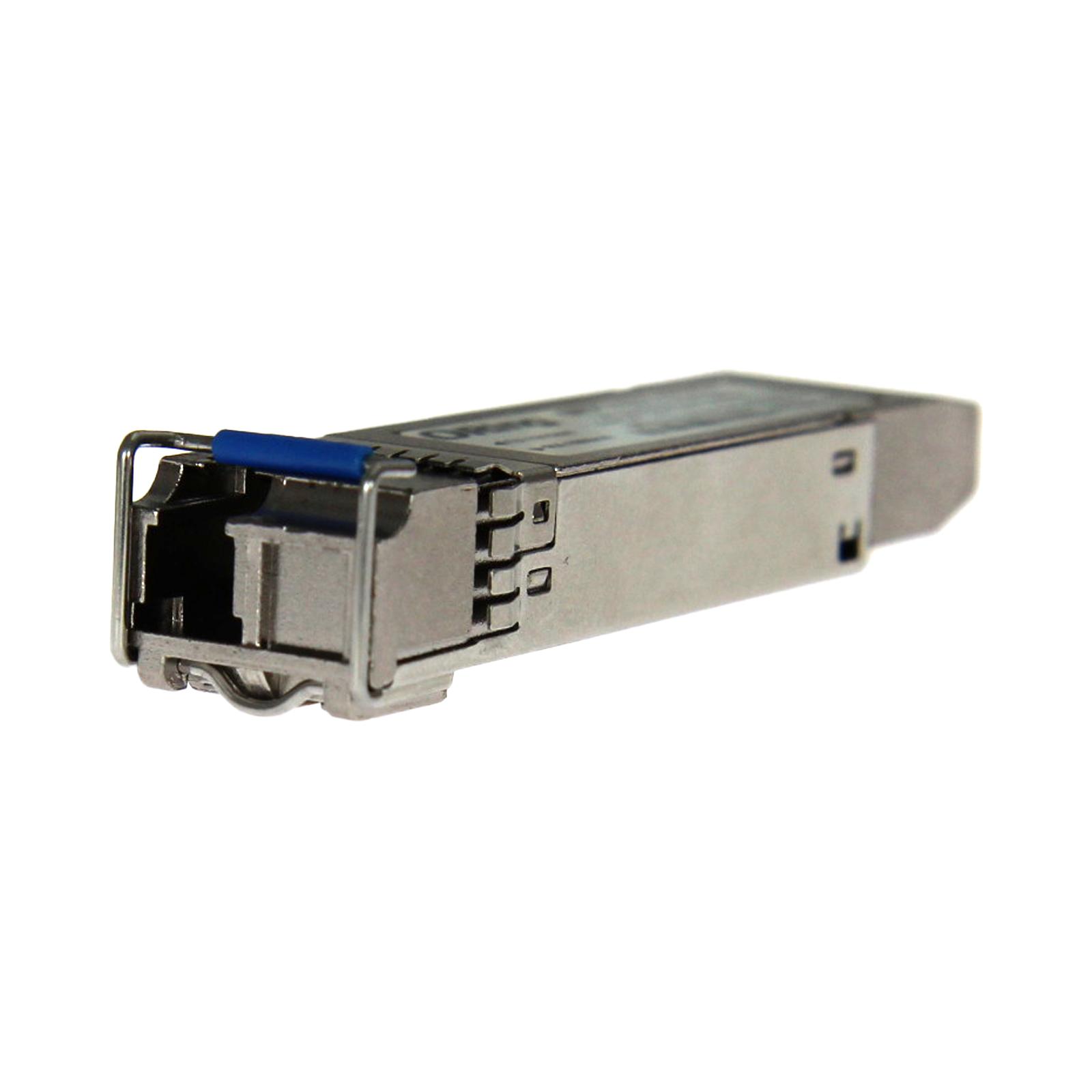

    ORing SFP100B3-SS20-I-DDM 100Mbps SFP optical Transceiver, Single-mode BIDI / 20KM

    Be the first to review this product...
    • .RoHS compliant: Choose ORing's transceiver for an eco-friendly network, meeting the Restriction of Hazardous Substances Directive for sustainable hardware.
    • .Versatile application support: This transceiver integrates with SONET/SDH and Fast Ethernet, offering flexibility for diverse network settings.
    • .Advanced diagnostic monitoring: Monitor your network in real time with built-in diagnostics, ensuring proactive maintenance and performance tracking.
    • .SFP LC Simplex Connector: Streamline your network with the SFP LC Simplex Connector, providing reliable and efficient connections.
    • .Hot pluggable convenience: Install or replace the transceiver without system shutdown, minimizing downtime with its hot-pluggable design.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    SFP

    ORing's small form-factor pluggable (SFP) fiber modules support both Gigabit and Fast Ethernet to accommodate various transmission distance requirements. Selected models feature Digital Diagnostic Monitoring (DDM) for real-time fiber status monitoring. All modules are industrial-grade and support a wide operating temperature range from -40°C to 85°C, ensuring reliable performance in harsh environments.

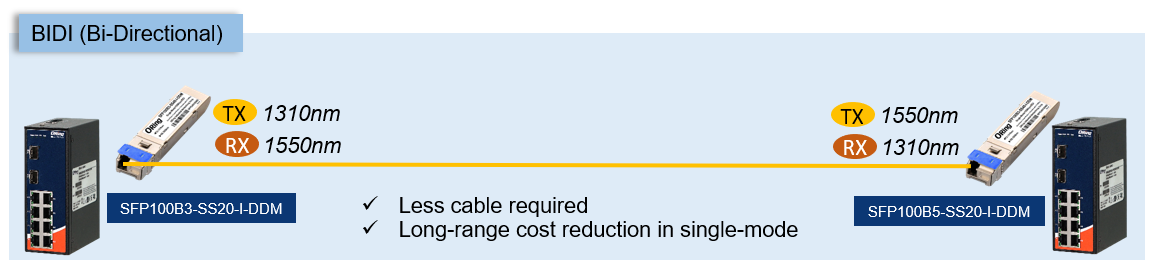

    BIDI
    DDM

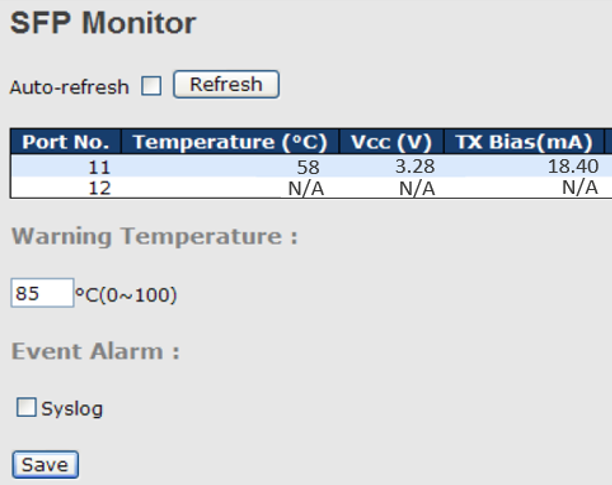

    DDM is a technology used in SFP transceivers which allows operators to monitor TX (transmit) and RX (receive) parameters of the transceivers in real-time. According to these parameters, the operators are able to diagnose why transceiver optics is not working properly.

    Notice
    Products
    SFP SFP100B3-SS20-I-DDM
    SFP SFP100B5-SS20-I-DDM

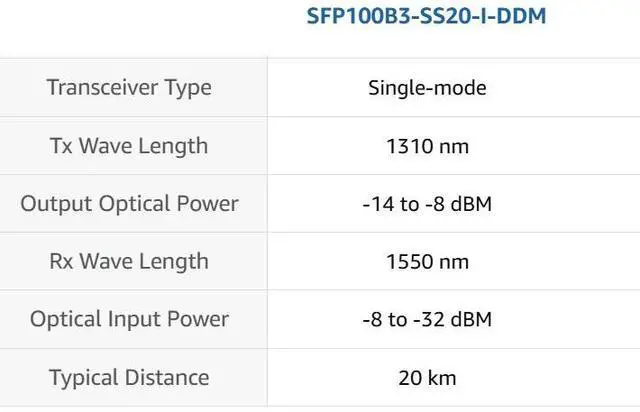

    Transceiver Type Single-mode Single-mode
    Tx Wave Length 1310 nm 1550 nm
    Output Optical Power -14 to -8 dBM -14 to -8 dBM
    Rx Wave Length 1550 nm 1310 nm
    Optical Input Power -8 to -32 dBM -8 to -32 dBM
    Typical Distance 20 km 20 km

    ORing BiDi Single-mode Transceiver

    Introducing the ORing BiDi Single-mode Transceiver, a pivotal component for seamless network connectivity in the realm of computer hardware. Designed for optimal performance, this transceiver operates on a TX-1310/RX-1550 nm wavelength, ensuring efficient bi-directional data transmission. It is engineered to support a transmission distance of up to 20 kilometers, making it an ideal choice for long-range network applications.

    Features

    • TX-1310/RX-1550 nm Single-mode Bi-directional Transceiver (BiDi): Facilitates high-efficiency data transfer over a single fiber.
    • 20km Transmission Distance: Perfect for extensive network requirements, offering reliable connectivity across long distances.
    • SFF8472 Diagnostic Monitoring Interface (DMM): Provides real-time monitoring of transceiver parameters to ensure optimal performance.
    • 155 Mbps SONET OC-3/SDH STM-1/125 Mbps Fast Ethernet: Supports a range of network standards for versatile application.
    • Operating Temperature (-40 to 85 ): Designed to withstand extreme environmental conditions, ensuring durability and reliability.

    This ORing transceiver is a single pack solution tailored for professionals in the computer hardware industry who demand robust and reliable network components. Its compliance with industry standards and advanced diagnostic features make it a valuable addition to any network infrastructure. Trust in ORing's commitment to quality and performance, and enhance your network capabilities with this superior transceiver.
