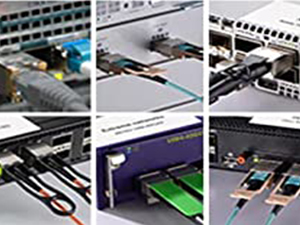

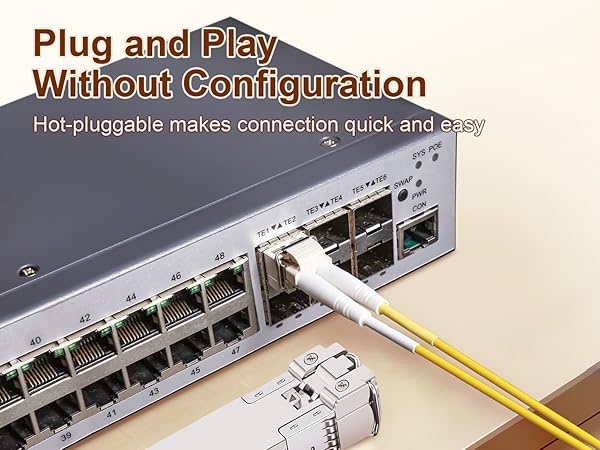

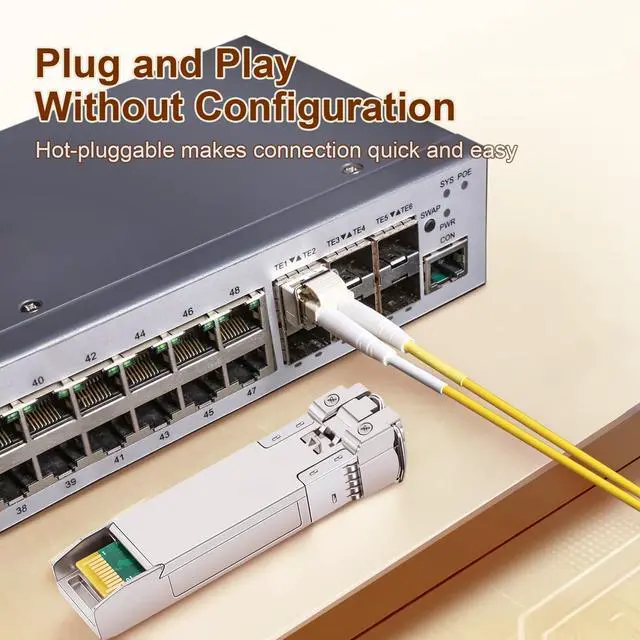

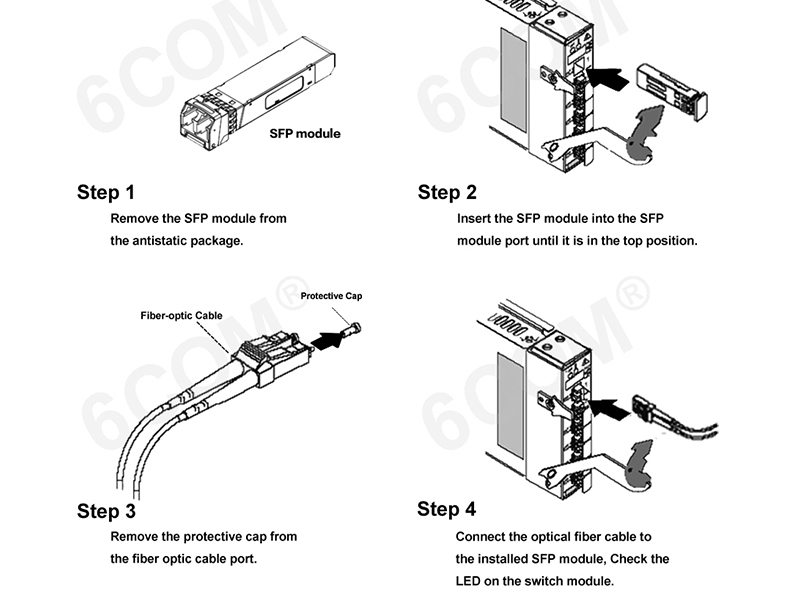

How to Install SFP Module
Step 1 : Remove the SFP module from the antistatic pakage.
Step 2 : Insert the SFP module into the SFP module port untill it is in the top position.
Step 3 : Remove the protective cap from the fiber optical cable port.
Step 4 : Connect the optical fiber cable to the installed SFP module,check the LED on the switch module.

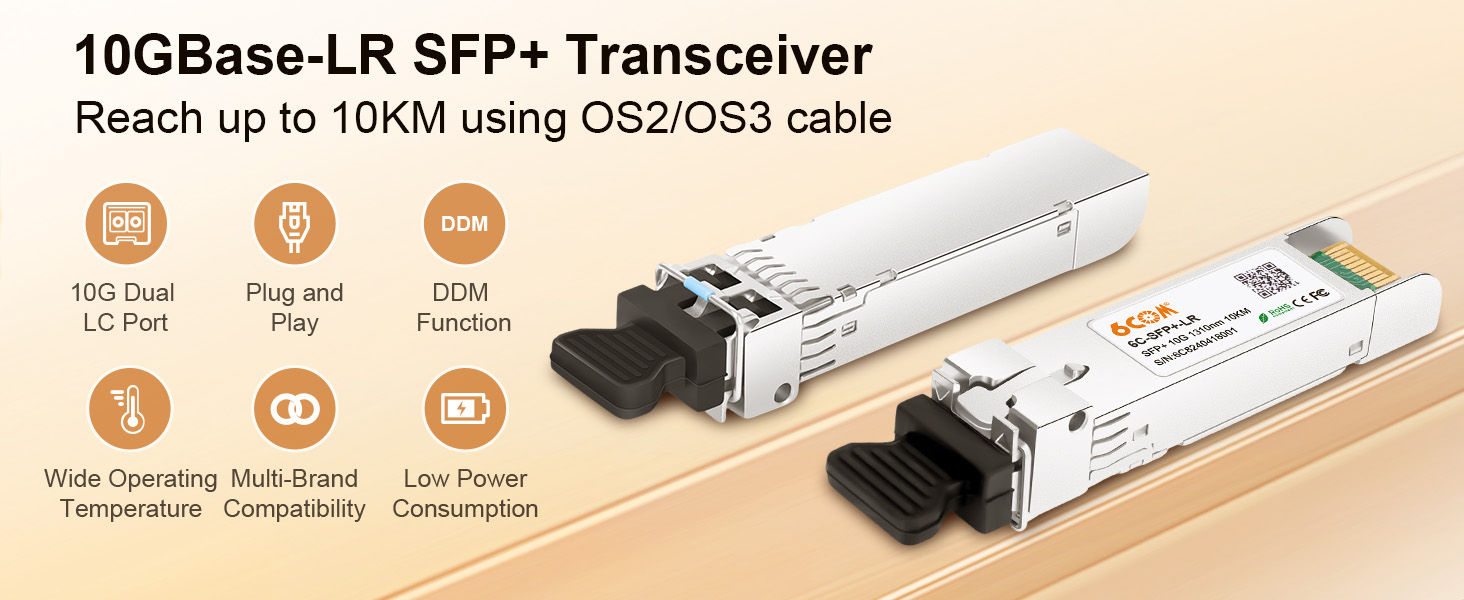

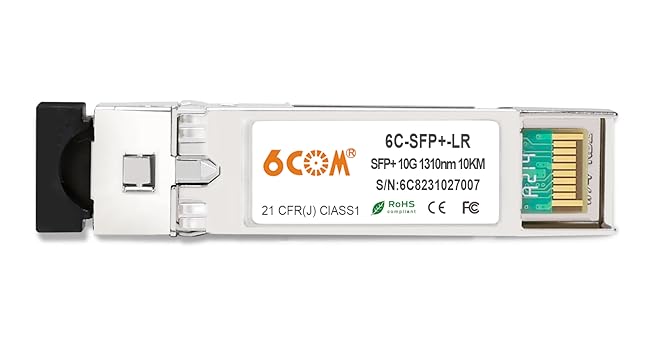

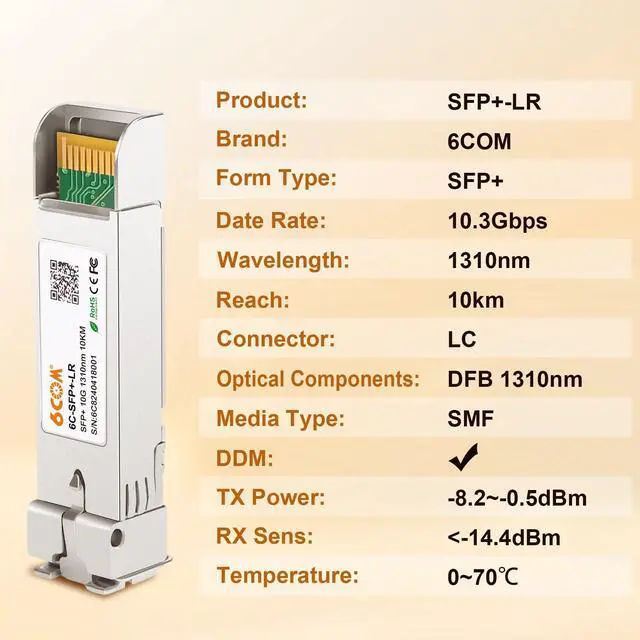

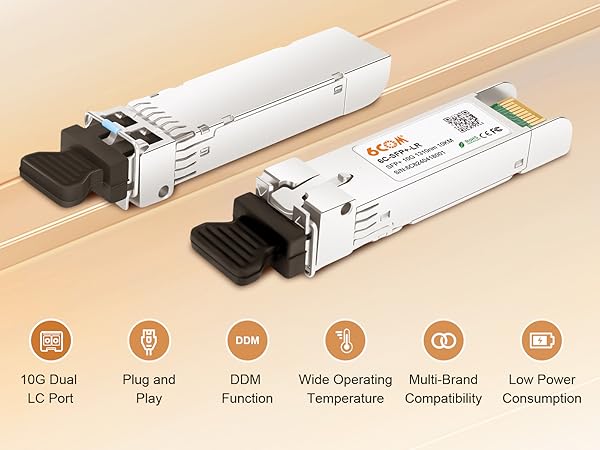

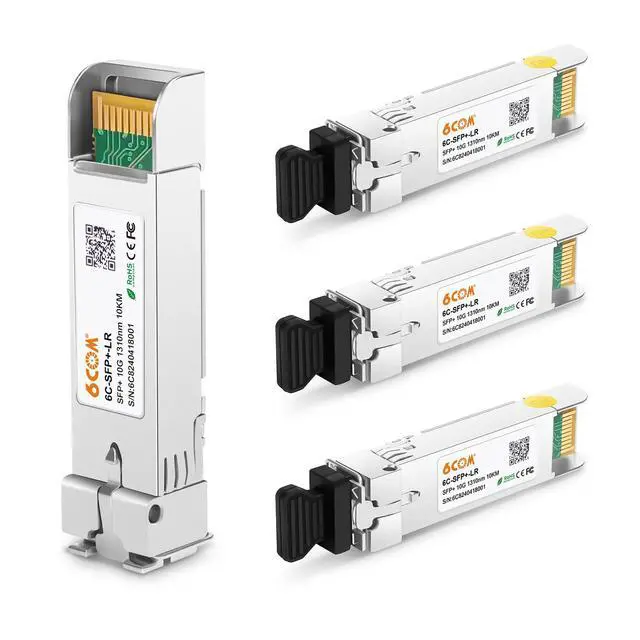

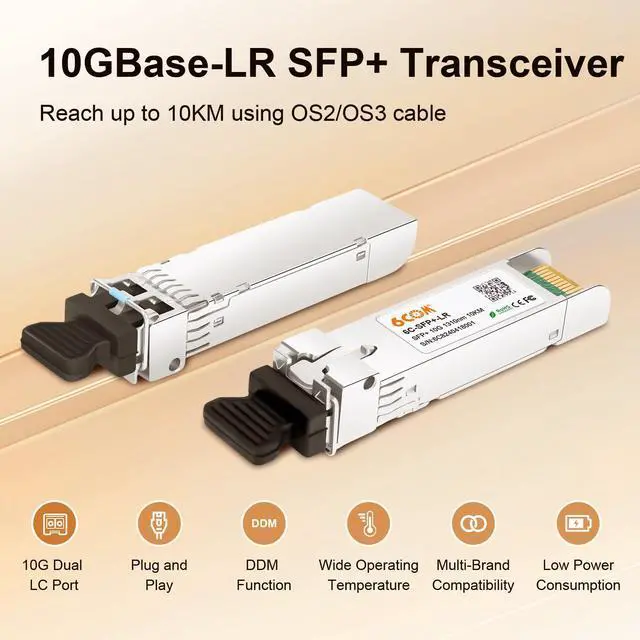

10GBASR-LR SFP+ Module
- Wave Length: 1310nm
- Reach: 10KM
- Fiber Type: SMF
- Tx Power(dBm): -6.5~-0.5
- Rx Sens.(dBm): <-14.4

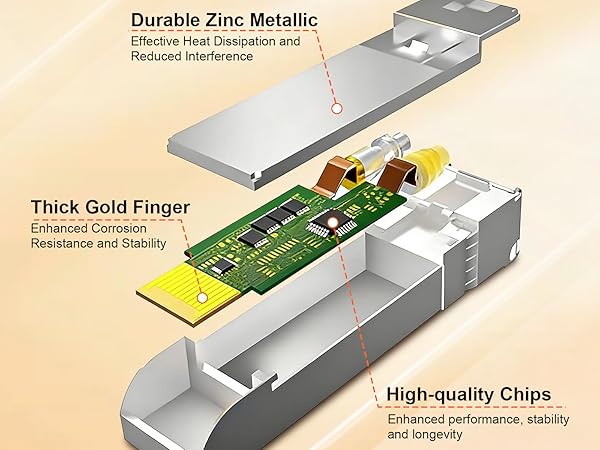

Low Power Consumption
- Power consumption is less than 2.5w, with superior heat dissipation to ensure stable signal, fast transmission, stable operation and superior performance
Choose the 1G/10G SFP Module According to Your Needs
 10GBase-LR |  10GBase-T |  1.25G/2.5G/5G/10GBase-T |  10GBase-T-SR |  1000Base-T |  1000Base-SX |  1000Base-LX | |
|---|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — | — |
Price | — | — | — | — | — | — | — |
Data Rate | 10G | 10G | 1.25G/2.5G/5G/10G | 10G | 1.25G | 1.25G | 1.25G |
Connecter | Dual LC | RJ45 | RJ45 | Dual LC | RJ45 | Dual LC | Dual LC |
Fiber Type | OS2 | CAT.6a/CAT.7 | CAT.6a/CAT.7 | OM3/OM4 | CAT.5e | OM1/OM2/OM3/OM4 | OS1/OS2/OS3 |
Wavelength(nm) | 1310 | - | - | 850 | - | 850 | 1310 |
Distance | 10km | 30m | 30m | 300m | 100m | 550 m | 20 km |
Optical Source | DFB/PIN | - | - | VCSEL/PIN | - | PF/PIN | FP/PIN |
Tx(dBm) | -8.2~-0.5 | - | - | -6.5~-1 | - | -8~-4 | -9~-3 |
Rx(dBm) | -14.4 | - | - | -11.1 | - | -18 | -22 |
Temp(?) | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 | 0~70 |
Professional Manufacturer
Providing high reliability and cost-effective interconnect solution for data centers and operator with optical modules and Cables (1G/10G/40G/100G)
Focus on Optical Module R&D
Devoting to providing customers with best shopping experience, best product installation performance with a perfect compatibility and superior quality

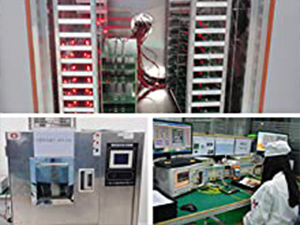

GR468 Reliability Test
All modules will be verified by temperature cycling, mechanical vibration, accelerated aging, damp heat test, to ensure the performance and stability
Worldwide Sales
We offers products and services worldwide, cooperating with partners over 150+ countries in 6 continents via unique B2B/B2C e-business platform
6COM is one of the leading suppliers of cost-optimized network solutions for the enterprise, access, datacenter and metropolitan fiber optical market as well as home networks.
We design, manufacture and sell Transceiver, DAC&AOC, Converter, NIC, SAS Cable and Fiber Optical Cable to make IT connectivity easy and cost-effective.
One Stop Shop for Data center
Make Your Network Stable
