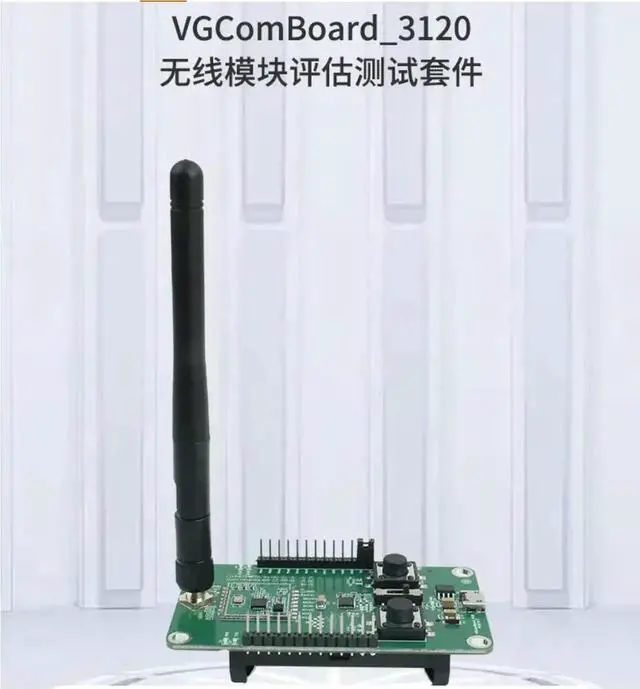

AJMRTC PAN3120 LowPower RF Module Kit, Evaluation Test Demo Development Board, SubGHz Wireless Transceiver Module Test Platform for IoT Nodes, Mobile Wireless Devices, Embedded Radio Development Pro
- 1. Complete PAN3120 lowpower RF module evaluation kit, dedicated demo test board for rapid performance verification and wireless function debugging
- 2. Supports SubGHz ISM band RF testing, exposes SPI, UART and GPIO interfaces, convenient for secondary development and firmware validation
- 3. Ultralowpower sleep mode testable, allows engineers to measure transmit, receive and deepsleep current for batterypowered IoT node design

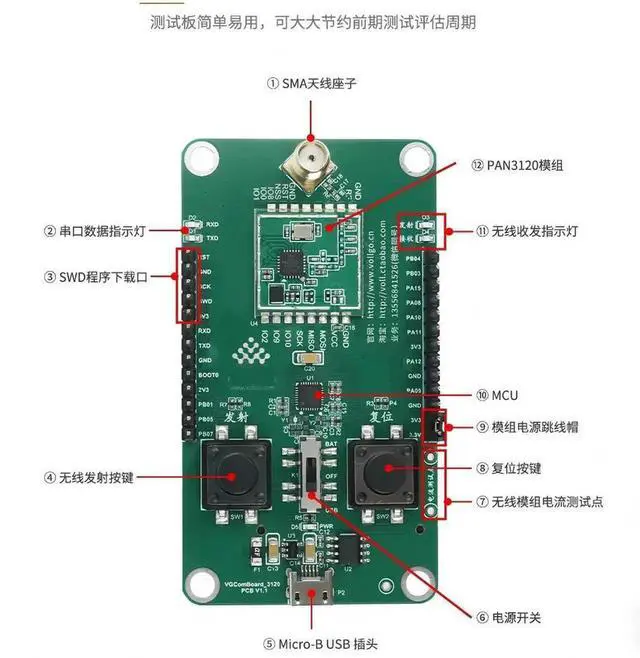

- 4. Onboard status LED indicators and test headers, supports RFparameter testing, communication distance experiment and hardware prototype validation
- 5. Widely applied for IoT wireless nodes, mobile terminal radio development, remote data acquisition and custom subGHz embedded projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC PAN3120 evaluation development kit is a complete test platform for PAN3120 subGHz lowpower RF wireless module. It helps developers quickly verify RF performance, debug communication functions and validate firmware without building custom hardware. The demo board brings out SPI, UART and multichannel GPIO interfaces, compatible with mainstream MCUs. You can test transmitting power, receiving sensitivity, sleep power consumption and actual communication performance. Builtin LED status indicators and reserved test pins simplify currentconsumption measurement and signal detection. Perfect for IoT hardware research, mobile wireless equipment development and embedded subGHz radio prototype building. Please follow chip datasheet for antenna matching to achieve optimal wireless transmission performance.

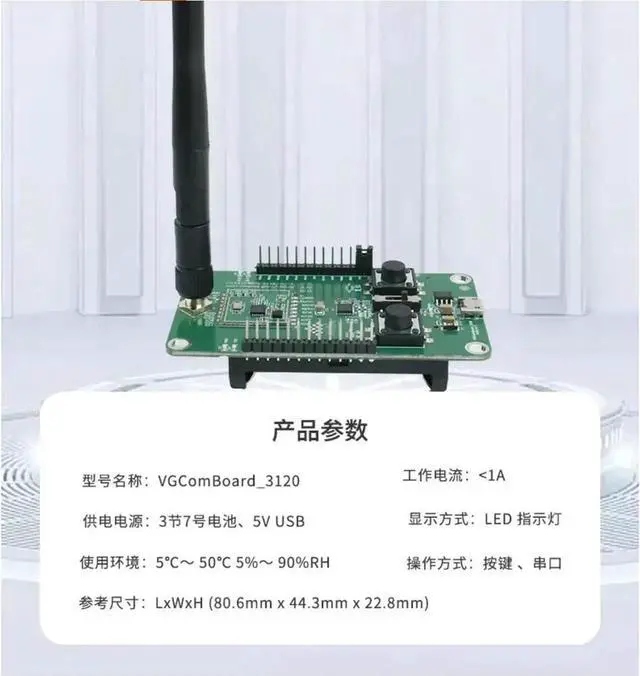

SpecificationsChip: PAN3120 SubGHz RF Transceiver Chip Kit Content: RF Module + Evaluation Demo Development Board Frequency Band: 433 / 470 / 868 / 915 MHz ISM Band Host Interfaces: SPI, UART, MultiGPIO Test Function: RF Performance Test, PowerConsumption Measurement, Firmware Debugging Sleep Current: nAlevel deepsleep support Operating Temperature: 40 ~ +85 Typical Applications: IoT Nodes, Mobile Wireless Devices, Remote Data Collection, Embedded Radio Prototype Development Note: 50Ohm matched antenna is required for normal RF testing
