AJMRTC A5133 5.8GHz HighPower LongRange Audio Video Transmission Module, HighSpeed 4Mbps FSK Wireless RF Transceiver with AES128 Encryption for HiFi Wireless Audio & Video Streaming Projects
- 1. Builtin A5133 5.8GHz RF chip, highpower PA+LNA design, delivers longrange stable bidirectional transmission for HiFi audio and video data transfer
- 2. Programmable highspeed data rate up to 4Mbps, supports FSK modulation, lowlatency largevolume data transmission for audiovideo wireless solutions
- 3. Integrated hardware AES128 encryption engine, plus CRC & FEC error correction, enhances data security and antiinterference performance in complex environments
- 4. Adopts 3/4wire SPI host interface, equipped with 64byte TX/RX FIFO buffer, convenient for MCU secondary development for custom AV wireless projects

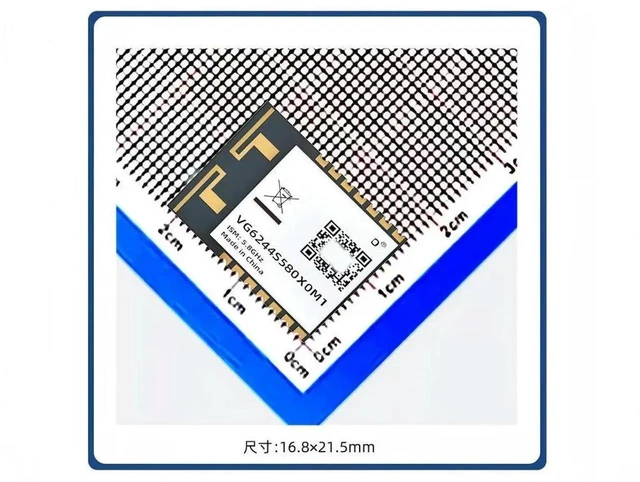

- 5. Industrialgrade working temperature range, compact module layout, suitable for HiFi wireless audio, shortrange video streaming and embedded wireless AV hardware builds
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

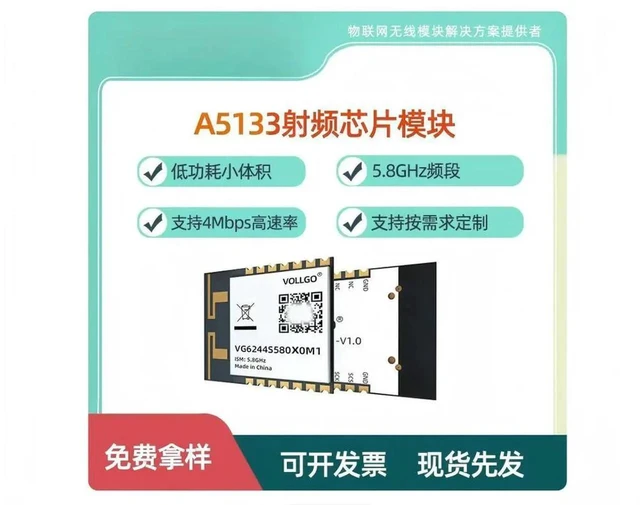

AJMRTC A5133 wireless audiovideo transmission module works on the 5.8 GHz ISM band. It integrates highpower PA and LNA to extend effective communication distance, supporting maximum 4 Mbps adjustable FSK data rate to meet highspeed audiovideo data transmission requirements. Onboard AES128 hardware encryption, CRC check and FEC forward error correction effectively resist interference and guarantee audiovideo data integrity. 3wire / 4wire SPI interface and builtin 64byte TX/RX FIFO simplify connection with main MCU, reducing hostside processing workload. It is widely applied for HiFi wireless audio streaming, shortdistance video transmission and other embedded wireless AV development projects. Please use wellmatched 5.8 GHz antenna and follow chip datasheet for hardware debugging to obtain optimal transmission performance.

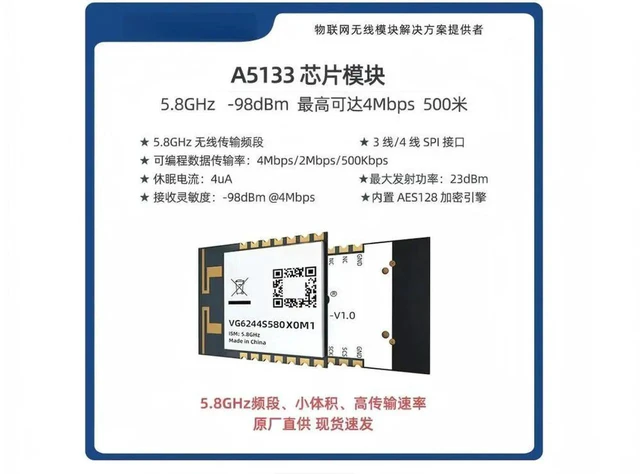

SpecificationsChipset: A5133 Frequency Band: 5.8 GHz ISM Band Modulation: FSK Max Data Rate: 4 Mbps (programmable) Host Interface: 3wire / 4wire SPI Encryption: Hardware AES128 Error Handling: CRC16, FEC(7,4), AutoACK & Retransmission TX/RX FIFO: 64 Bytes Operating Temperature: 40 ~ +85 Typical Application: HiFi Wireless Audio, Video Streaming, Embedded AudioVideo Wireless Transmission Remarks: 5.8GHz matched antenna required for normal operation
