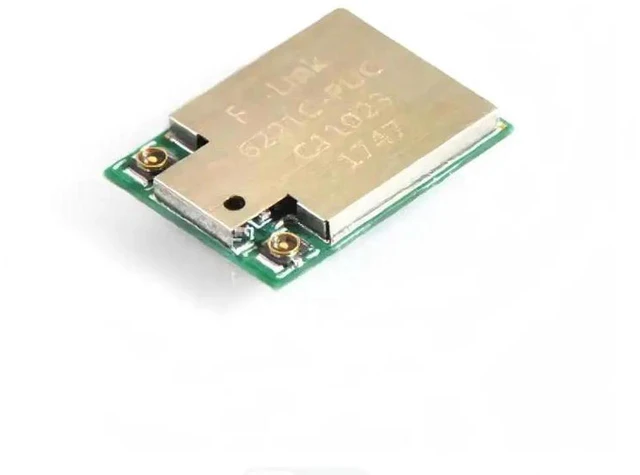

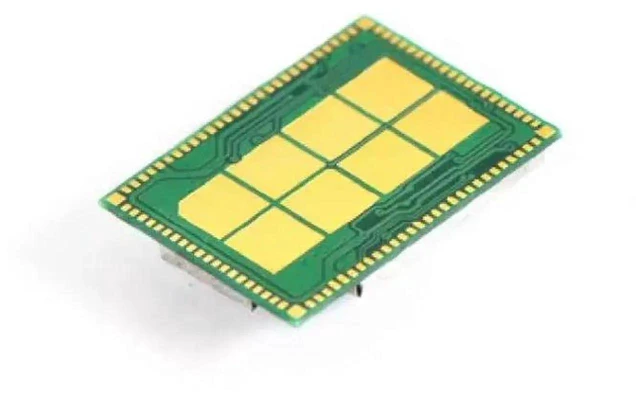

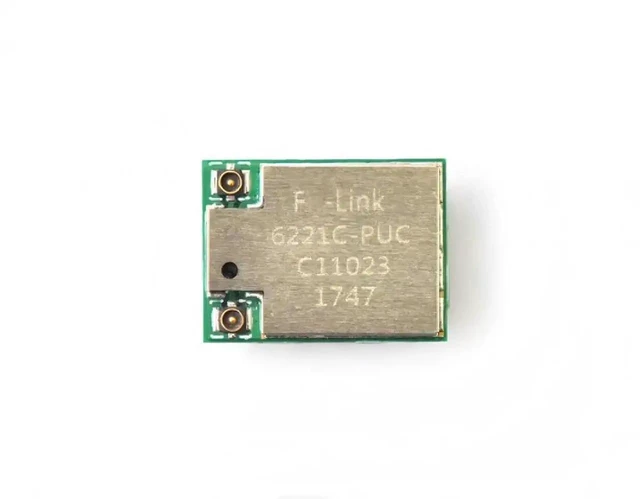

AJMRTC 6221CPUC PCIe WiFi Bluetooth Combo Module, Realtek RTL8821CE Chip 1T1R DualBand 2.4G 5G 802.11ac WiFi + Bluetooth 5.0, Compact Wireless Module for Embedded & Industrial Devices
- Builtin Realtek RTL8821CE chip, 6221CPUC combo module integrates dualband 802.11ac WiFi and Bluetooth 5.0 within one tiny PCB unit
- 1T1R RF design supports 2.4GHz and 5GHz dualband network, achieves maximum 433Mbps WiFi transmission rate for stable wireless connectivity
- WiFi adopts PCIe host interface, Bluetooth uses USB and PCM audio interface, convenient for secondary development and embedded hardware integration.
- Equipped with metal shielding cover to reduce electromagnetic interference, improves RF signal stability for complex industrial electromagnetic environments
- Ultrasmall 16×12×1.8mm footprint, compatible with Windows, Linux and Android for IPTV, POS, smart display and custom embedded projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC 6221CPUC wireless combo module is powered by Realtek RTL8821CE chip, combining dualband WLAN and Bluetooth 5.0 function on a compact circuit board. It follows IEEE 802.11 a/b/g/n/ac WiFi standard with 1T1R antenna chain, supporting both 2.4GHz and 5GHz frequency bands, peak WiFi speed reaches 433Mbps. WiFi communicates via PCIe bus, while Bluetooth runs over USB interface with PCM channel reserved for Bluetooth audio transmission, simplifying hardware circuit design for developers. Integrated metal shielding housing suppresses internal RF interference and enhances antiinterference performance. Compact dimension 16×12×1.8mm saves board space, widely applied in IPTV boxes, POS terminals, industrial control equipment, smart screens and other embedded devices. Operating voltage is DC 3.3V, external IPEX antennas are required for normal signal reception. Corresponding RTL8821CE driver installation is mandatory to unlock full WiFi and Bluetooth features. Only wireless module is included; antennas, host motherboard and other accessories are not contained in package.
- Brand: AJMRTC
- Module Model: 6221CPUC
- Main Chipset: Realtek RTL8821CE
- WiFi Standard: IEEE 802.11 a/b/g/n/ac
- WiFi Max Rate: 433 Mbps
- RF Chain: 1T1R
- Bluetooth Version: Bluetooth 5.0
- WiFi Interface: PCIe
- Bluetooth Interface: USB + PCM
- Operating Voltage: DC 3.3V
- Dimension: 16 × 12 × 1.8 mm
- Operating Temperature: 0 ~ 70
- Storage Temperature: -55 ~ 85
- Supported OS: Windows, Linux, Android
- Application: IPTV, POS Machine, Industrial Control, Smart Display, Embedded DIY
- Package Content: 1 × 6221CPUC Wireless Combo Module
- Note: Antennas and host motherboard are not included; driver installation required
