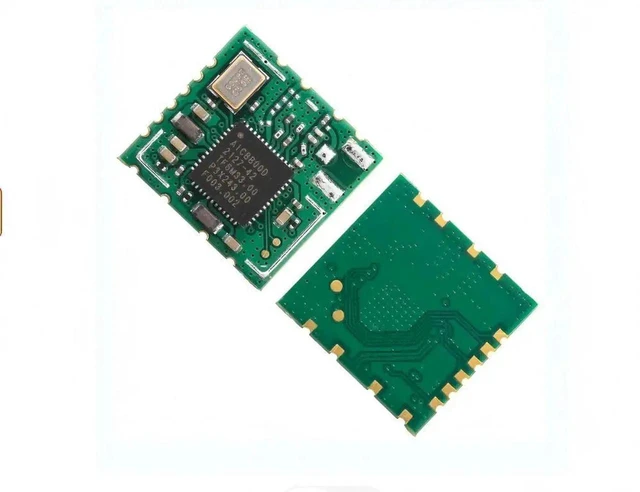

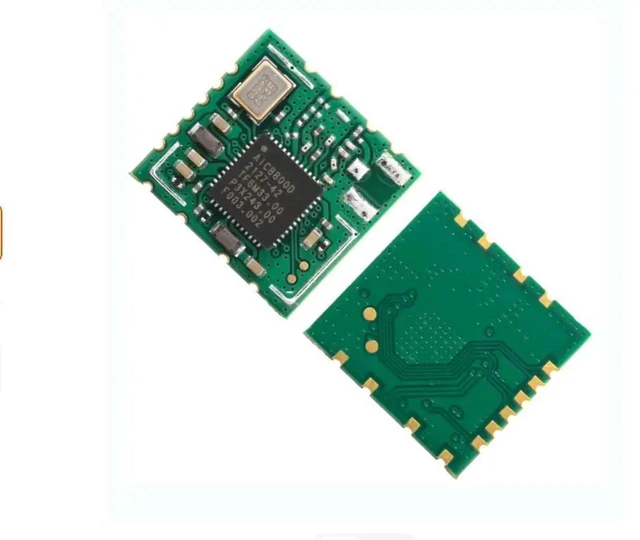

AJMRTC FLink N200EUU Wireless Combo Module, AIC8800D Chip 2.4GHz WiFi6 802.11ax + Bluetooth 5.0, USB2.0 1T1R Compact RF Module for IPTV, SetTop Box & Embedded IoT Projects
- Powered by AIC8800D chip, integrates 2.4GHz WiFi6 802.11ax and Bluetooth 5.0 function into one miniature PCB wireless module
- 1T1R RF design, max 286.8Mbps transmit /229.4Mbps receive rate, adopts USB2.0 interface for both WiFi and Bluetooth communication
- Supports STA, AP, WiFi Direct working modes, builtin WiFiBluetooth coexistence mechanism for stable concurrent wireless operation
- Ultracompact 13×12.2×1.7mm dimension, saves PCB layout space for OTT box, IPTV, POS machine and embedded IoT hardware design
- Compatible with Windows, Linux and Android operating systems, lowpower consumption for batterypowered smart device development
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC N200EUU wireless combo module is built on AIC8800D SoC chip, combining 2.4GHz WiFi6 802.11ax and Bluetooth 5.0 on a tiny circuit board. It adopts USB2.0 host interface for both WLAN and Bluetooth signal transmission, simplifying hardware circuit design for embedded developers. With 1T1R radio configuration, it reaches up to 286.8Mbps TX and 229.4Mbps RX physical rate under 2.4GHz frequency band. It supports STA, SoftAP and WiFiDirect modes, and comes with internal coexistence mechanism to reduce mutual interference when WiFi and Bluetooth work simultaneously. Measuring only 13 ×12.2 ×1.7 mm, this smallformfactor module is widely used for IPTV settop boxes, OTT devices, POS terminals, tablet equipment and custom IoT embedded projects. Operating voltage is DC 3.3V, external IPEX antenna is required for normal RF performance. Corresponding driver installation is required to activate full WiFi6 and Bluetooth 5.0 functions. Only wireless module is included; antennas, host mainboard and other accessories are not contained in package.
- Brand: AJMRTC
- Module Model: N200EUU
- Main Chipset: AIC8800D
- WiFi Standard: IEEE 802.11 b/g/n/ac/ax (WiFi 6, 2.4GHz Only)
- Bluetooth Version: Bluetooth 5.0
- RF Chain: 1T1R
- Max PHY Rate: TX 286.8Mbps, RX 229.4Mbps
- Host Interface: WiFi USB2.0, Bluetooth USB2.0
- Operating Voltage: DC 3.3V
- Dimension: 13 × 12.2 × 1.7 mm
- Antenna Type: External IPEX Antenna (Not Included)
- Working Mode: STA / AP / WiFi Direct
- Supported OS: Windows, Linux, Android
- Application: IPTV, OTT Box, POS Terminal, IoT Embedded Hardware
- Package Content: 1 × N200EUU Wireless Combo Module
- Note: Antennas and host motherboard not included; driver installation required
