AJMRTC CC1101 Wireless RF Transceiver Module with SMA Antenna, 315/433/868/915MHz Sub-GHz SPI RF Module, Low Power Data Transmission Module for Arduino Raspberry Pi STM32 IoT Smart Home Projects, 1PCS
- - Multi-band RF transceiver module supports 315MHz, 433MHz, 868MHz, 915MHz ISM bands for flexible wireless data communication
- - Comes with SMA antenna connector, easy antenna replacement to enhance transmission distance and signal stability
- - SPI interface design, simple wiring, compatible with Arduino, Raspberry Pi, STM32 and most mainstream microcontrollers
- - Low power consumption design, supports multiple modulation modes: 2-FSK, GFSK, ASK, OOK, MSK for diverse IoT projects
- - Built-in hardware CRC check and RSSI signal detection, reliable data transmission for remote control and wireless monitoring
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

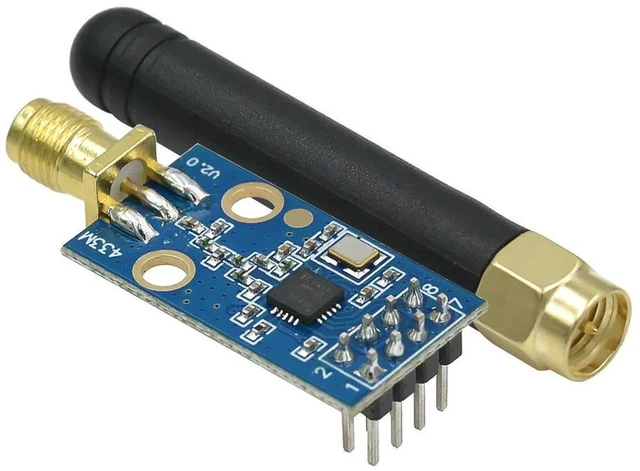

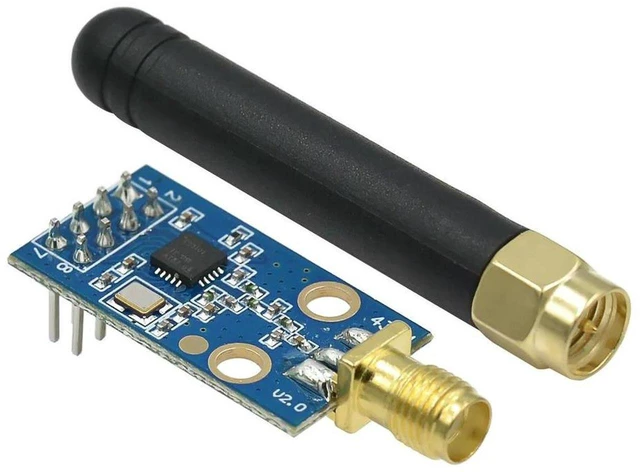

AJMRTC CC1101 is a high-performance sub-GHz wireless RF transceiver module built for low-cost, low-power wireless communication. It works on 315/433/868/915MHz ISM frequency bands and adopts SPI communication interface, which can be quickly connected with Arduino, Raspberry Pi, STM32 and other microcontrollers. Equipped with SMA antenna port, you can replace different gain antennas according to actual needs to improve wireless transmission range.
This CC1101 RF module supports multiple modulation formats including 2-FSK, GFSK, ASK, OOK and MSK. It integrates hardware CRC error detection and RSSI signal strength indication to guarantee stable data transmission. Low standby and receiving current makes it perfect for battery-powered devices. Widely applied in smart home, wireless remote control, industrial monitoring, security alarm, IoT sensor node and other short-range wireless data transmission scenarios.
- Brand: AJMRTC
- Chip: CC1101
- Frequency Range: 315MHz / 433MHz / 868MHz / 915MHz
- Interface: SPI

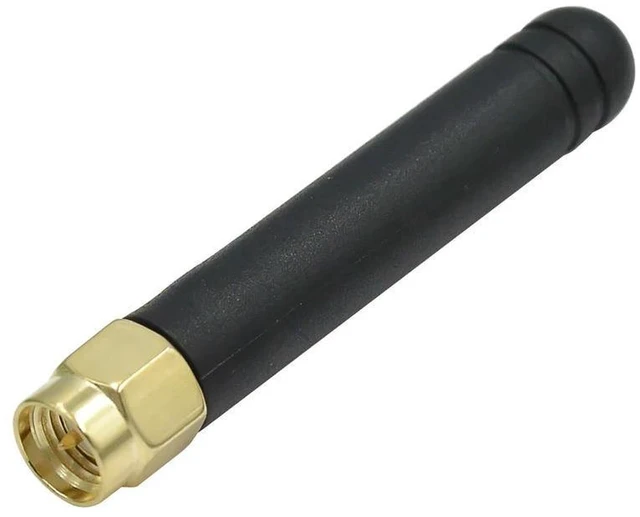

- Antenna Interface: SMA
- Modulation Type: 2-FSK, GFSK, ASK, OOK, MSK
- Operating Voltage: 1.8V ~ 3.6V DC
- Max Output Power: +12dBm
- Receiver Sensitivity: -110dBm typical
- Data Rate: 1.2kbps ~ 500kbps
- Package: 1 x CC1101 Module + 1 x SMA Antenna
