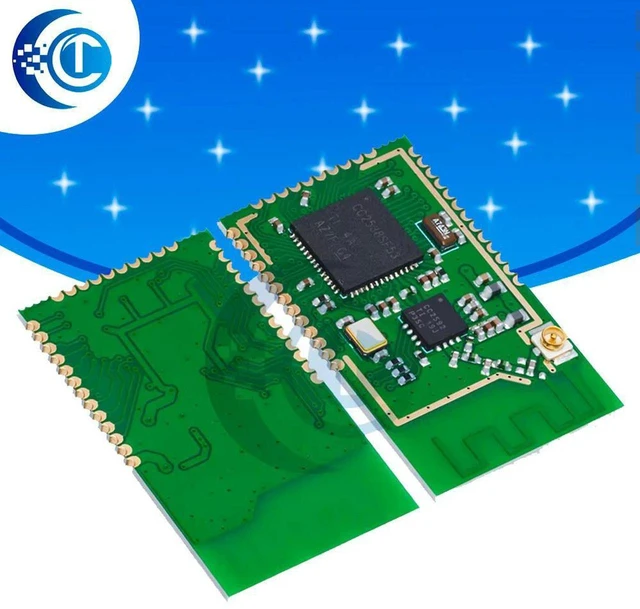

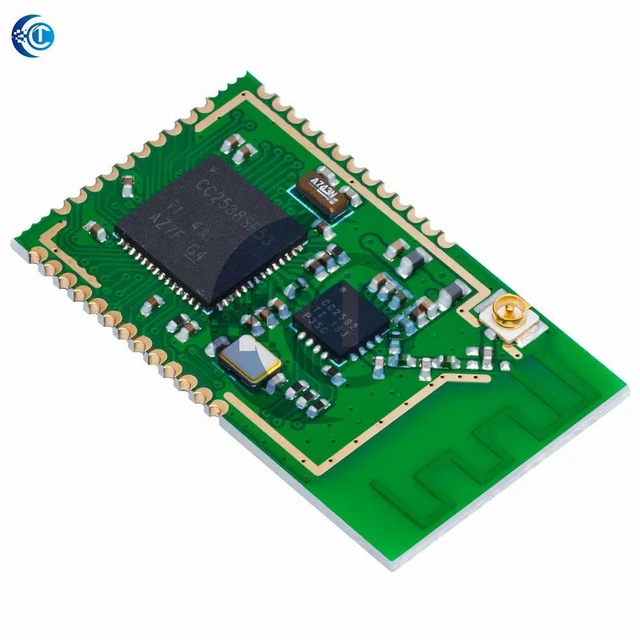

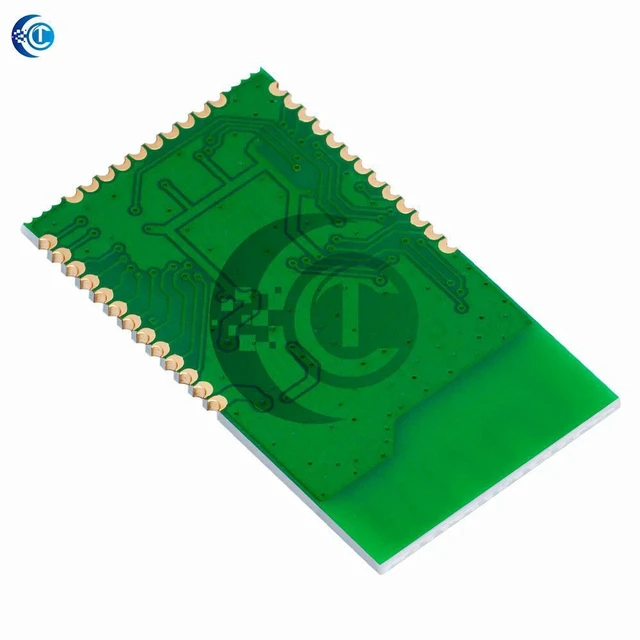

AJMRTC CC2538SF53RTQR Zigbee Wireless Module, CC2538 + CC2592 PA High Power 2.4GHz RF Transceiver Board, Cortex-M3 Core, Long Range IEEE802.15.4 Module for Smart Home, Industrial IoT & Embedded
- - Built with CC2538SF53RTQR main chip plus CC2592 PA/LNA RF front-end, high power 2.4GHz Zigbee wireless module
- - ARM Cortex-M3 core, 512KB flash and 32KB RAM, supports Zigbee, 6LoWPAN and IEEE802.15.4 protocols
- - CC2592 power amplifier boosts transmit power up to +22dBm and improves receiving sensitivity for longer communication distance
- - Integrated hardware AES encryption accelerator, supports OTA remote firmware upgrade and low power sleep modes
- - Ideal for smart home sensors, industrial wireless monitoring, IoT gateway and long-range embedded wireless projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC high-power 2.4G Zigbee module adopts CC2538SF53RTQR wireless SoC paired with CC2592 PA/LNA radio front-end. The CC2538 integrates 32-bit Cortex-M3 microcontroller and 2.4GHz RF transceiver. The CC2592 power amplifier greatly increases transmit output power and enhances receiver sensitivity to achieve longer transmission distance. It supports Zigbee, 6LoWPAN and IEEE802.15.4 standard. It comes with hardware AES encryption engine and supports OTA firmware update. Multiple low-power operation modes reduce power consumption for battery-powered devices. It is widely used for smart home automation, industrial wireless data collection, IoT sensor nodes and long-range wireless embedded development projects.
- Brand: AJMRTC
- Chip: CC2538SF53RTQR + CC2592 PA/LNA
- Frequency: 2.4GHz ISM Band
- Core: ARM Cortex-M3
- Flash: 512KB, RAM:32KB
- Max TX Power: +22dBm
- Supported Protocol: Zigbee, 6LoWPAN, IEEE802.15.4
- Feature: Hardware AES encryption, OTA upgrade, long communication range
- Application: Smart Home, Industrial IoT, Wireless Sensor Node, Embedded Projects
