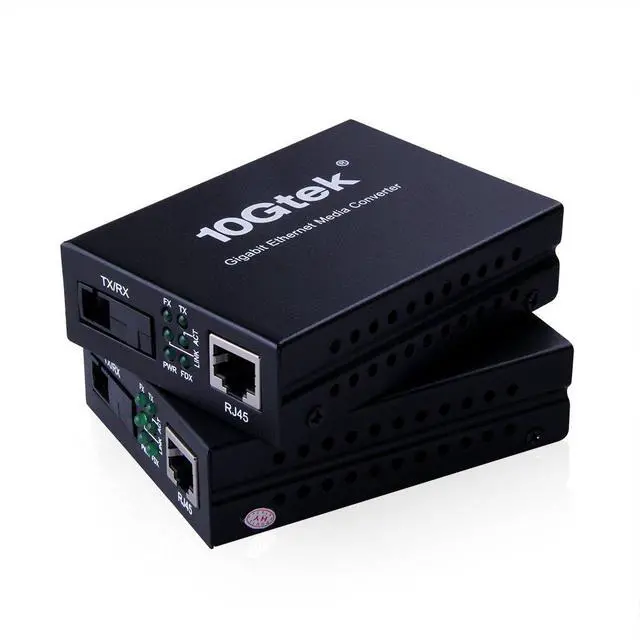

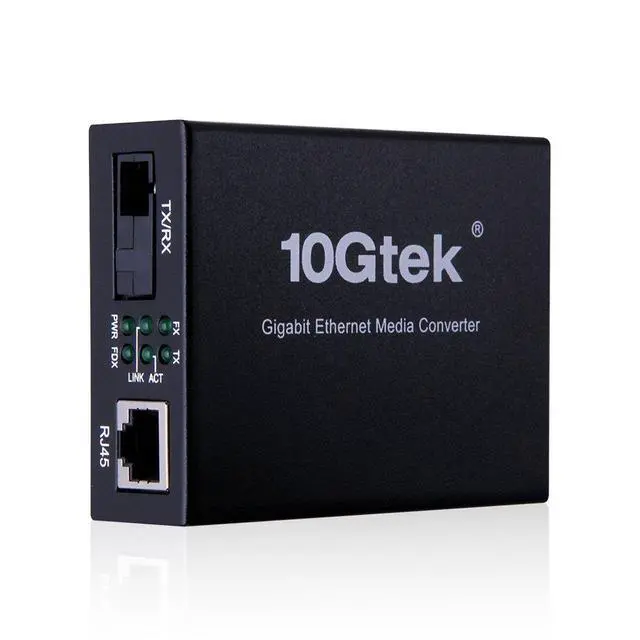

A Pair of Gigabit Ethernet Single-Mode SC Fiber Bidi Media Converter, Built-in BiDi SFP B LX Fiber Module, 1310/1550nm, SMF, up to 20KM, SC Fiber to 10/100/1000Base-TX (UTP/STP/Cat5e/Cat6 RJ45)

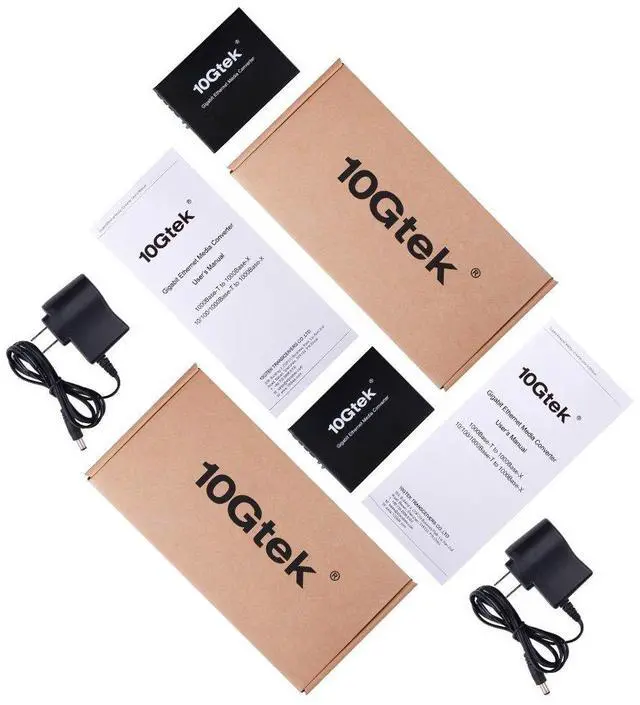

- Seamless Conversion of SC Fiber to Copper ? This fiber optic to ethernet media converter is built-in single mode Bidi SFP LX Modules, which enables you to convert 1000BASE-LX Simplex SC fiber to 10/100/1000 Base-T RJ-45 copper media or vice versa.; Extend Transmission Distance ? By using this ethernet fiber media converter, you can easily extend link distance up to 20 kilometers via OS1/OS2 single mode fiber (SMF, SC, Simplex).; Plug and Play ? No software installation or configuration required. Hot-swappable design makes this ethernet fiber converter easy to install and troubleshoot.; Reliable Auto-Negotiation Gigabit Connection ? 10/100/1000Mbps Auto-Negotiation RJ45 Port supports Auto-MDI/MDIX Crossover and Half-Duplex / Full-Duplex Transfer Mode, bridging different network speeds and devices to a Gigabit fiber network.; What You Get ? A pair of Gigabit Ethernet to SC fiber media converter; 1* Power Supply (UL Certified, 5V-1A); 3-year Warranty, Technical Support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description The Media Converter complies with IEEE 802.3 z, IEEE 802.3AB Standards. It is designed to convert data signal between 10/100/1000Base-T and 1000Base-LX Gigabit Ethernet. It supports 10/100/1000Base-T and 1000Base-LX applications. Optical Port? 1550nm/1310nm Single mode
Transfer Distance: up to 20km
Connectors: SC connector
Fiber core: 8.3 um, 8.7 um, 9um and 10um on single mode fiber
Ethernet Port Available speed: auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 Connector MDI/MDI-X connection auto-sensing??
Input Voltage: AC100V~240V or DC36~72V, 50/60Hz
Output Voltage: 5V1A UL Certified Power Supply??
Input Voltage: AC100V~240V or DC36~72V, 50/60Hz
Output Voltage: 5V1A

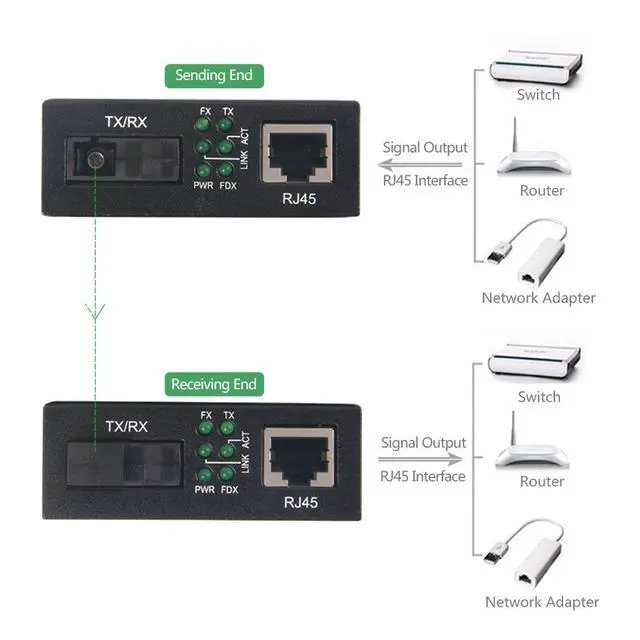

Connector: DC Socket Strong anti-interference ability Lightning protection Extend or bridge networks cost-effectively using fiber cabling Provide connectivity to users in an isolated area of a large complex or in a separate building 10/100/1000Mbps auto-sensed, easily upgrade Full-duplex and half-duplex auto-sensed MDI/MDI-X Auto Negotiation 10/100/1000Mbps store-and-forward Extends distances up to 20km 10/100/1000Mbps store-and-forward Extremely low power consumption, low heat, stable performance

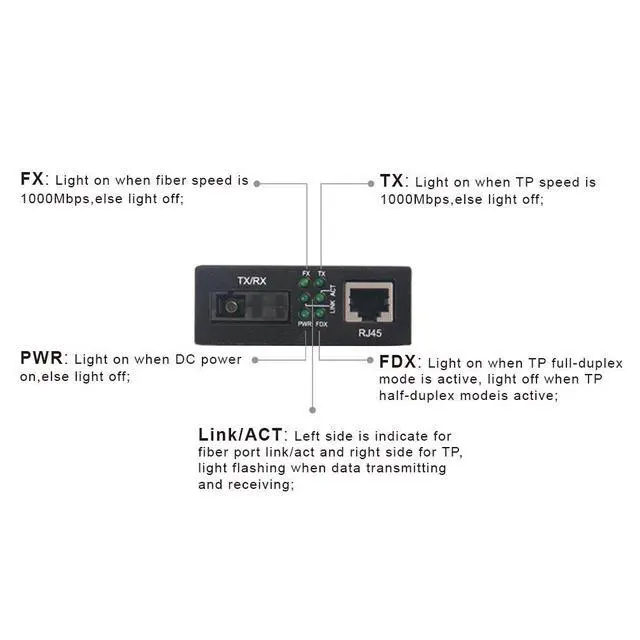

FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
Transfer Distance: up to 20km
Connectors: SC connector
Fiber core: 8.3 um, 8.7 um, 9um and 10um on single mode fiber
Ethernet Port Available speed: auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 Connector MDI/MDI-X connection auto-sensing??
Input Voltage: AC100V~240V or DC36~72V, 50/60Hz
Output Voltage: 5V1A UL Certified Power Supply??
Input Voltage: AC100V~240V or DC36~72V, 50/60Hz
Output Voltage: 5V1A
Connector: DC Socket Strong anti-interference ability Lightning protection Extend or bridge networks cost-effectively using fiber cabling Provide connectivity to users in an isolated area of a large complex or in a separate building 10/100/1000Mbps auto-sensed, easily upgrade Full-duplex and half-duplex auto-sensed MDI/MDI-X Auto Negotiation 10/100/1000Mbps store-and-forward Extends distances up to 20km 10/100/1000Mbps store-and-forward Extremely low power consumption, low heat, stable performance
FX: Light on when fiber speed is 1000Mbps, else light off
TX: Light on when TP speed is 1000Mbps, else light off
Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off
