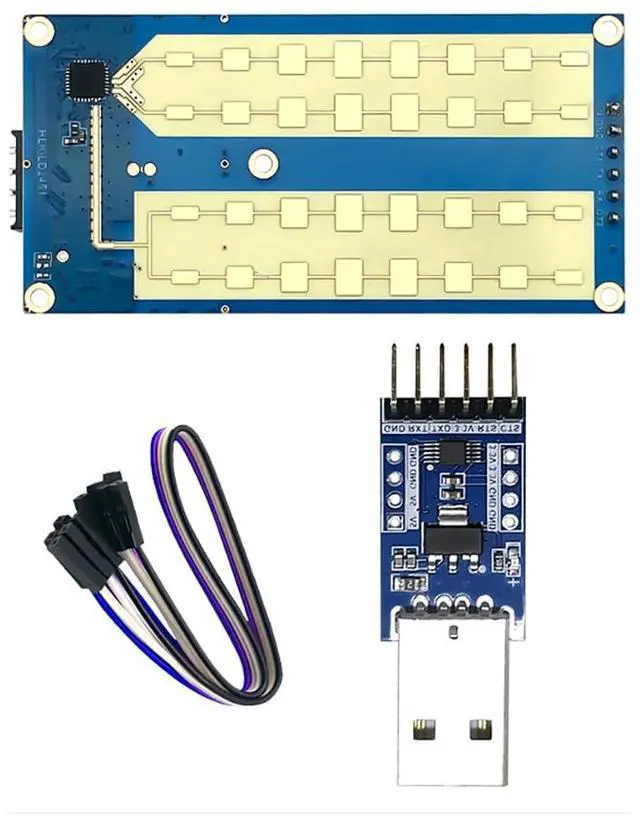

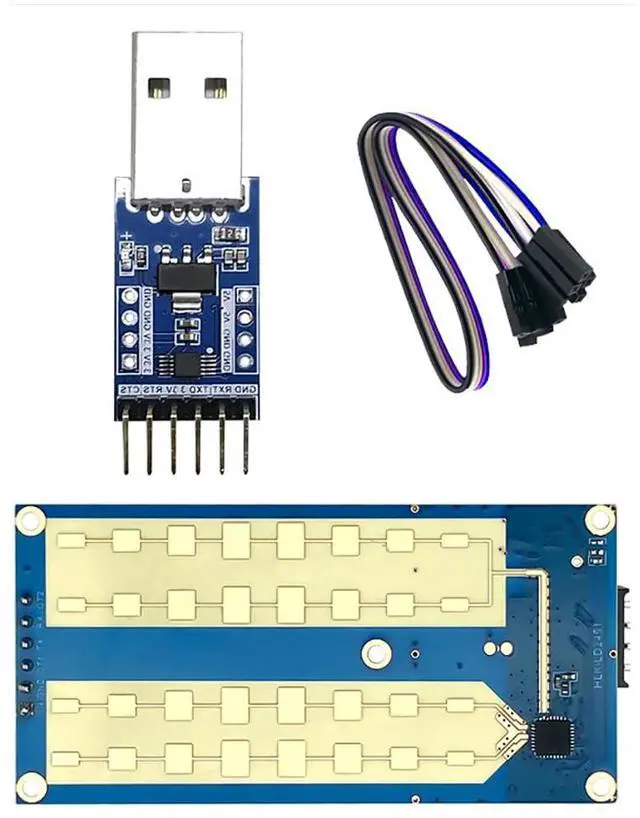

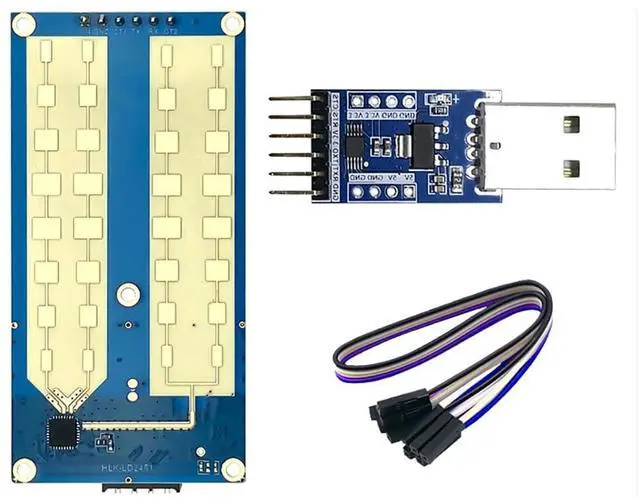

LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra?DAR Adapter (Module Test Kit)
Limited time offer, ends 07/19 By EmpressTech
- LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area.; Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.; Modulation mode: FMCW. Detection angle: ?20. default 2.54mm x 6Pin.; Power Requirement: 5V(Typ.) / power supply capacity >300mA.; Detection distance: Maximum sensing distance 100m.; Data format: serial port ASCII output, GPIO level output.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
JMT HLK-LD2451 24G Vehicle Status Monitoring Sensor Module Vehicle Ranging and Speed Measurement Millimeter Wave Ra? dar
Adapter Product Description: LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area. Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.
Product features Frequency: 24G- 24.25GH z.
Sweep bandwidth: 250MHz (meet CE/FCC certification standards).
Modulation mode: FMCW.
Power Requirement: 5V(Typ. ) / power supply capacity >300mA.
Exterior dimension: 35? 70mm.
Detection angle:? 20.
Detection distance: Maximum sensing distance 100m.
Environment Temperature: -40? ~+85?.
Data format: serial port ASCII output, GPIO level output.
Package: default 2.54 mm x 6Pin
Adapter Product Description: LD2451 is a 24G radar module with integrated 1T2R (one way transmit, two ways receive) RF transceiver channel, which can achieve accurate measurement of near, medium and long range multi-target distance, speed and orientation in the detection area. Mainly used in high-speed intersections, non-motorised lanes, motorised lanes and intelligent driving scenarios, to achieve the state of the rear vehicle detection.
Product features Frequency: 24G- 24.25GH z.
Sweep bandwidth: 250MHz (meet CE/FCC certification standards).
Modulation mode: FMCW.
Power Requirement: 5V(Typ. ) / power supply capacity >300mA.
Exterior dimension: 35? 70mm.
Detection angle:? 20.
Detection distance: Maximum sensing distance 100m.
Environment Temperature: -40? ~+85?.
Data format: serial port ASCII output, GPIO level output.
Package: default 2.54 mm x 6Pin
