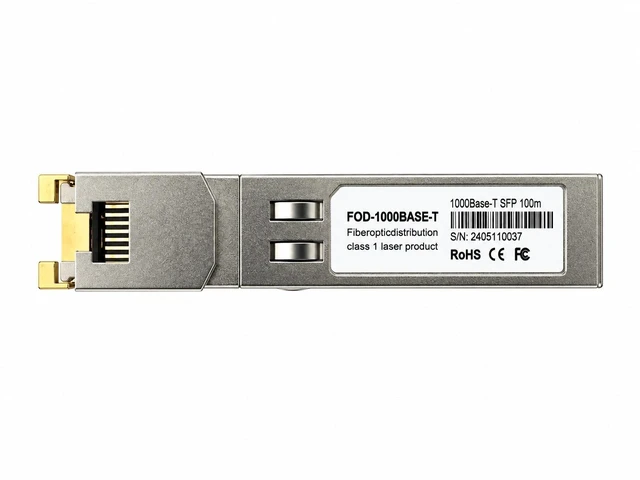

Palo Alto Networks PAN-SFP-CG Compatible 1000BASE-T SFP Copper RJ45 Transceiver Module, 100m
- Direct replacement for the Palo Alto Networks PAN-SFP-CG 1000BASE-T SFP module
- Coded and tested in PA-Series next-generation firewalls
- Compliant with SFP MSA, IEEE 802.3, and IEEE 802.3ab
- 100m (328 ft) reach for Gigabit Ethernet over Cat5, Cat5e, or better copper cable
- Power draw of 1.1 W
- Compact RJ45 female connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Palo Alto Networks PAN-SFP-CG Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ45)
This Palo Alto Networks PAN-SFP-CG compatible SFP module delivers Gigabit Ethernet over Cat5, Cat5e, or better copper cable at distances up to 100 meters (328 ft) through an RJ45 connector. It meets the Gigabit Ethernet and 1000BASE-T specifications in IEEE 802.3-2002 and IEEE 802.3ab, so an SFP port on a PA-Series firewall can take a standard copper run for LAN handoffs and switch connections.
Every unit is programmed with Palo Alto EEPROM coding and tested in Palo Alto 1G firewall interfaces before it ships, so the port recognizes it exactly as it would the OEM PAN-SFP-CG. Each module is engineered, produced, and tested in-factory, and against the OEM part it can cut networking cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | PAN-SFP-CG | Manufacturer Part# | FOD-PAN-SFPCG |
| Form Factor | SFP | Data Rate | 1000 Mbps |
| Wavelength | NA | Media Type | Cat5/5e/6/6a cable |
| Max Distance | 100 m | Transmitter Type | N/A |
| Receiver Type | N/A | Transmitter Power | N/A |
| Receiver Sensitivity | N/A | Extinction Ratio | N/A |
| Receiver Overload | N/A | Connector | RJ45 Female |
| Power Consumption | 1.1 W | DDM/DOM | No |
| Compliance | RoHS, CE, REACH, SFP MSA, IEEE 802.3, IEEE 802.3ab | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | Gigabit Ethernet, switch to switch interface, switch to NIC or media converter interface, other 1G links | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 68.0×13.5×14 mm | ||
