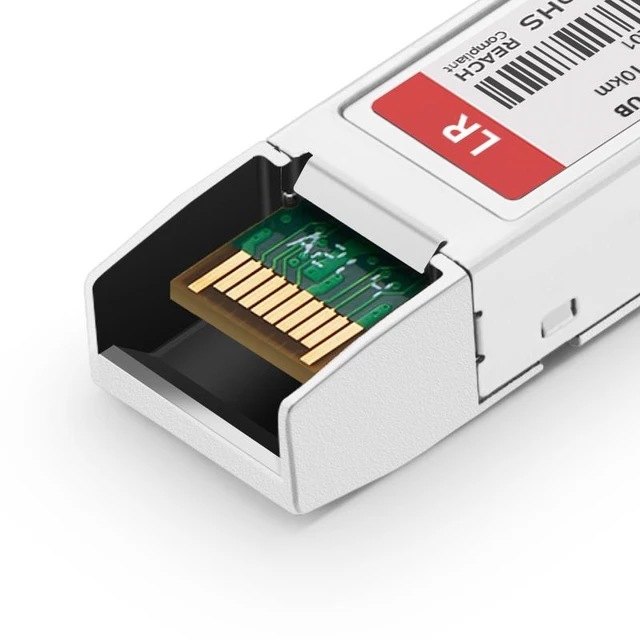

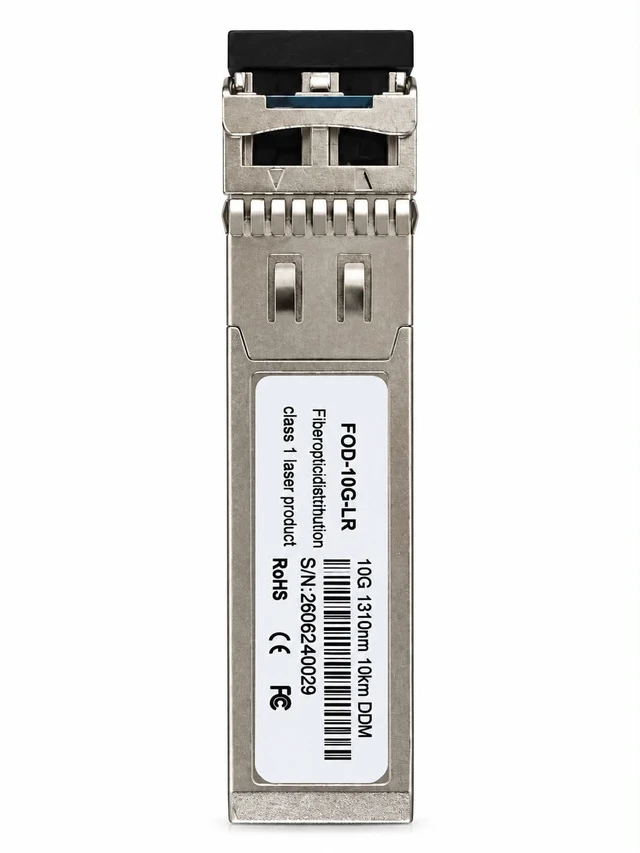

FireEye LR10GPX-HW Compatible 10GBASE-LR SFP+ Transceiver Module, 1310nm SMF, 10km, LC, DOM
- Direct replacement for the FireEye LR10GPX-HW 10GBASE-LR SFP+ module
- Coded and tested in FireEye network security appliances
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 10km reach at 1310nm over single-mode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- DFB transmitter with PIN receiver for stable long-reach performance
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
FireEye LR10GPX-HW Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
This FireEye LR10GPX-HW compatible SFP+ transceiver carries 10GBASE-LR and 10GBASE-LW traffic up to 10 kilometers over single-mode fiber, operating at 1310nm through an LC duplex interface. Built-in Digital Optical Monitoring reports temperature, voltage, and optical power in real time, which matters on an inspection appliance where link health needs to be visible alongside traffic.
The module meets the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, so it interoperates cleanly in mixed-vendor networks. It suits network security appliance uplinks, inline inspection and monitoring points, data center edges, and campus backbones. Every unit is engineered, produced, and tested in-factory, then verified in real network hardware before it ships. Against the OEM part it can cut optical cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | LR10GPX-HW | Manufacturer Part# | FOD-FEY-LR10GPXHW | |
| Form Factor | SFP+ | Data Rate | 10 Gbps | |
| Wavelength | 1310 nm | Media Type | SMF | |
| Max Distance | 10 km | Transmitter Type | DFB | |
| Receiver Type | PIN | Transmitter Power | -6 ~ 0 dBm | |
| Receiver Sensitivity | < -14.4 dBm | Extinction Ratio | > 3.5 dB | |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex | |
| Power Consumption | 1 W | DDM/DOM | Yes | |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C | |
| Application | 10GBASE-LR/10GBASE-LW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg | |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
