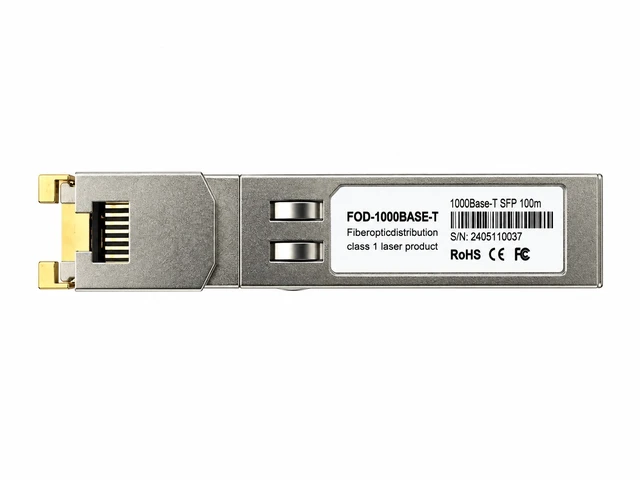

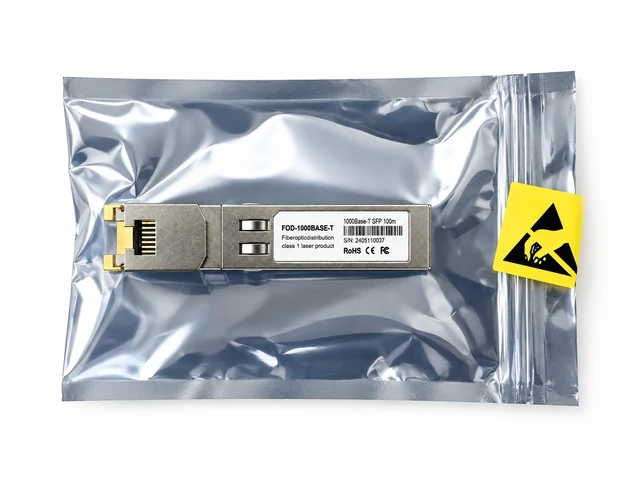

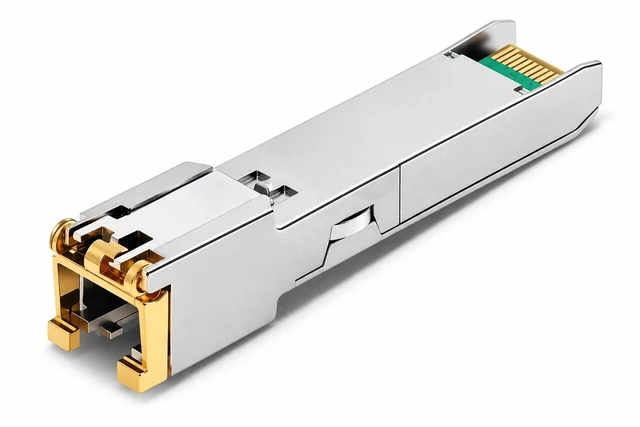

Fluke Networks SFP-1000TX Compatible 1000BASE-T SFP Copper RJ45 Transceiver Module, 100m
- Direct replacement for the Fluke Networks SFP-1000TX 1000BASE-T SFP module
- Coded and tested in Fluke Networks analysis and test hardware
- Compliant with SFP MSA, IEEE 802.3, and IEEE 802.3ab
- 100m (328 ft) reach for Gigabit Ethernet over Cat5, Cat5e, or better copper cable
- Power draw of 1.1 W
- Compact RJ45 female connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Fluke Networks SFP-1000TX Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ45)
This Fluke Networks SFP-1000TX compatible SFP module delivers Gigabit Ethernet over Cat5, Cat5e, or better copper cable at distances up to 100 meters (328 ft) through an RJ45 connector. It meets the Gigabit Ethernet and 1000BASE-T specifications in IEEE 802.3-2002 and IEEE 802.3ab, so an SFP port on a network analyzer or tester can tap a copper segment directly without a media converter in the path.
Every unit is programmed with Fluke EEPROM coding and tested in Fluke Networks 1G hardware and network interface cards before it ships, so the port recognizes it exactly as it would the OEM SFP-1000TX. Each module is engineered, produced, and tested in-factory, and against the OEM part it can cut networking cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | SFP-1000TX | Manufacturer Part# | FOD-FLK-SFP1000TX |
| Form Factor | SFP | Data Rate | 1000 Mbps |
| Wavelength | NA | Media Type | Cat5/5e/6/6a cable |
| Max Distance | 100 m | Transmitter Type | N/A |
| Receiver Type | N/A | Transmitter Power | N/A |
| Receiver Sensitivity | N/A | Extinction Ratio | N/A |
| Receiver Overload | N/A | Connector | RJ45 Female |
| Power Consumption | 1.1 W | DDM/DOM | No |
| Compliance | RoHS, CE, REACH, SFP MSA, IEEE 802.3, IEEE 802.3ab | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | Gigabit Ethernet, switch to switch interface, switch to NIC or media converter interface, other 1G links | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 68.0×13.5×14 mm | ||
