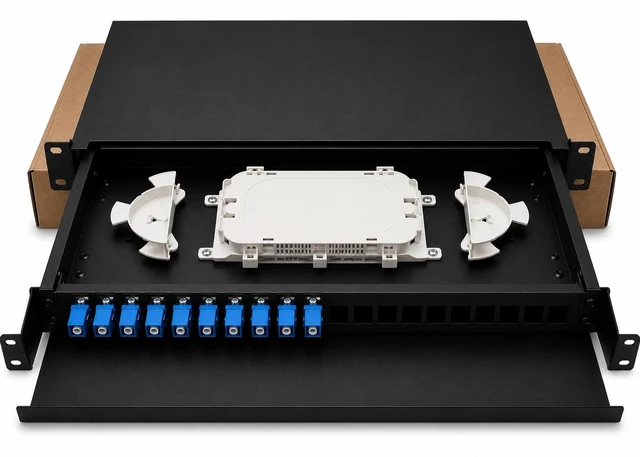

12 Port SC Simplex Fiber Optic Patch Panel with Splice Tray, 1U 19 inch Rack Mount Sliding Drawer
- 12 SC simplex adapter ports, with 12 blue SC simplex adapters included
- 12-fiber splice tray included for pigtail splicing and slack storage
- Sliding drawer design gives front access for splicing and maintenance without unracking
- Standard 1U height for 19 inch network cabinets and server racks
- Cold rolled steel body with black powder-coated finish
- Works with both single mode and multimode fiber
- Ships complete with adapters, splice tray, and mounting hardware
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
12 Port SC Simplex Fiber Optic Patch Panel with Splice Tray (1U, 19 inch Rack Mount)
This 1U patch panel terminates and protects up to twelve SC simplex fiber connections in a standard 19 inch rack. The drawer slides forward on its rails, which is the practical difference between this and a fixed panel: splicing, re-routing, and maintenance all happen at the front of the rack, with no need to pull the unit or work blind behind neighbouring equipment.
Inside sits a 12-fiber splice tray that holds fusion splices and stores slack pigtail without violating bend radius, keeping the fragile part of the termination secured rather than loose in the chassis. Twelve blue SC simplex adapters come fitted, and the panel takes both single mode and multimode fiber, so it suits a backbone termination or a distribution point equally.
The chassis is cold rolled steel with a black powder-coated finish, built to sit in a rack for years without flexing or corroding. Typical deployments are FTTH distribution points, telecom rooms, data centers, enterprise LAN and WAN backbones, fiber backbone terminations, and CCTV or security networks.
Specifications
| Product Type | Rack mount fiber patch panel with splice tray | Manufacturer Part# | FOD-PP-SC12-1U |
| Port Capacity | 12 SC simplex | Adapter Type | SC simplex, blue |
| Splice Tray Capacity | 12 fibers | Rack Size | 1U, 19 inch |
| Design | Sliding drawer | Material | Cold rolled steel |
| Finish | Black powder coat | Fiber Compatibility | Single mode and multimode |
| Usage | Indoor fiber distribution | Application | FTTH, telecommunications, data centers, enterprise networks, LAN/WAN infrastructure, fiber backbone cabling, CCTV and security networks |
| Package Includes | 1x patch panel, 12x SC simplex blue adapters, 1x 12-fiber splice tray, mounting hardware |
