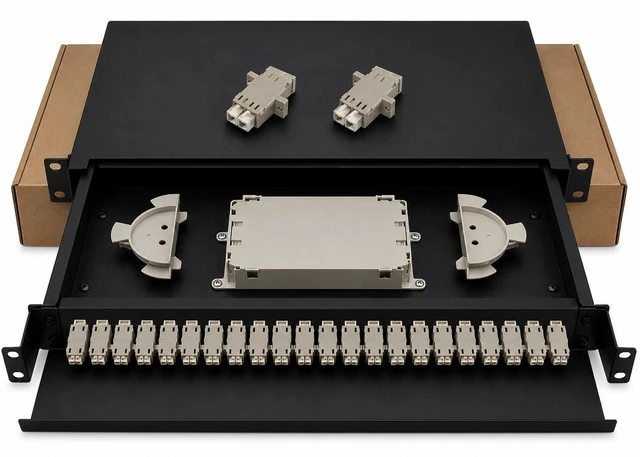

24 Port LC Duplex Fiber Optic Patch Panel with Splice Tray, 48 Fiber, 1U 19 inch Rack Mount
- 24 LC duplex ports with beige adapters pre-installed, supporting 48 fiber connections
- Integrated fiber splice tray for pigtail splicing and slack storage
- Sliding drawer design gives front access for splicing and maintenance without unracking
- High density: 48 fibers terminated in a single rack unit
- Standard 1U height for 19 inch network cabinets and server racks
- Cold rolled steel body with black powder-coated finish
- Works with single mode and multimode LC fiber
- Ships complete with adapters, splice tray, cable management accessories, and mounting hardware
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
24 Port LC Duplex Fiber Optic Patch Panel with Splice Tray (1U, 19 inch Rack Mount)
This 1U panel terminates 24 LC duplex ports, which is 48 individual fibers, in a single rack unit. The density is the point: LC connectors are roughly half the width of SC, so a rack space that would hold twelve SC simplex terminations here holds twenty-four duplex links, freeing rack height for the equipment those fibers connect to.
The drawer slides forward on rails, so splicing, inspection, and re-patching happen at the front of the rack rather than reaching behind loaded gear. Inside, the fiber splice tray secures fusion splices and stores slack pigtail without breaking bend radius, keeping the most fragile part of each termination protected. Twenty-four beige LC duplex adapters come fitted, and the panel accepts both single mode and multimode LC fiber.
The chassis is cold rolled steel with a black powder-coated finish, built to stay square and rattle-free in a fully loaded rack. Typical deployments are data centers, server rooms, telecom rooms, enterprise LAN and WAN backbones, FTTH installations, fiber backbone terminations, and CCTV or security networks.
Specifications
| Product Type | Rack mount fiber patch panel with splice tray | Manufacturer Part# | FOD-PP-LC24D-1U | |
| Port Capacity | 24 LC duplex (48 fibers) | Adapter Type | LC duplex | |
| Adapter Color | Beige | Splice Tray | Integrated fiber splice tray | |
| Rack Size | 1U, 19 inch | Design | Sliding drawer | |
| Material | Cold rolled steel | Finish | Black powder coat | |
| Fiber Compatibility | Single mode and multimode | Usage | Indoor fiber distribution | |
| Application | Data centers, telecommunications, enterprise networks, FTTH, server rooms, LAN/WAN networks, fiber backbone cabling, CCTV and security systems | Package Includes | 1x patch panel, 24x LC duplex beige adapters, 1x fiber splice tray, cable management accessories, mounting hardware |
