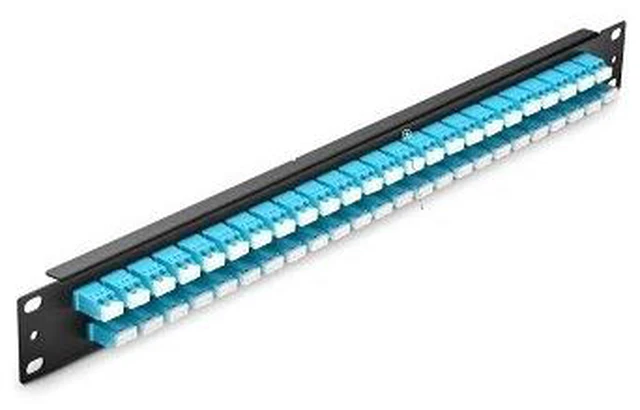

1U 19 inch Fiber Adapter Panel, 96 Fiber, 48 Port LC/UPC Duplex OM3/OM4 Multimode, Aqua
- 48 LC duplex ports carrying 96 fibers in a single rack unit
- Aqua adapters for OM3 and OM4 multimode fiber, UPC polish
- Highest port density in the 1U range: twice the capacity of a 24-port panel
- Standard 1U height, 19 inch width for network racks and cabinets
- Cold rolled steel plate with powder-coated finish
- RoHS compliant
- Suits data center cross-connects and high performance LAN backbones
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
1U 19 inch Fiber Adapter Panel, 96 Fiber, 48 Port LC/UPC Duplex OM3/OM4 Multimode
This adapter panel puts 48 LC duplex ports, or 96 individual fibers, into a single rack unit. That is the highest density in the 1U class and twice what a 24-port panel delivers, which matters most in data center rows where rack height is the constraint and every unit given to patching is a unit not available for switching or compute.
The aqua adapters identify OM3 and OM4 multimode fiber, the grades used for 10G, 40G, and 100G short-reach links inside a building. Pairing high fiber count with OM3/OM4 makes this a cross-connect or main distribution panel rather than an edge termination: the point where structured cabling from across the facility lands and gets patched to equipment.
The plate is cold rolled steel with a powder-coated finish, measuring 19 x 1.73 inches (482.6 x 44 mm) to fit any standard 19 inch rack or cabinet, and the panel is RoHS compliant.
Specifications
| Product Type | Rack mount fiber adapter panel | Manufacturer Part# | FOD-PP-LC48D-OM4-1U |
| Port Capacity | 48 LC duplex | Fiber Count | 96 fibers |
| Adapter Type | LC duplex, UPC | Adapter Color | Aqua |
| Fiber Mode | OM3/OM4 multimode | Rack Size | 1U, 19 inch |
| Dimensions | 19 x 1.73 in (482.6 x 44 mm) | Plate Material | Cold rolled steel, powder coated |
| Compliance | RoHS | Application | Data center cross-connects, high performance LAN backbones, structured cabling |
