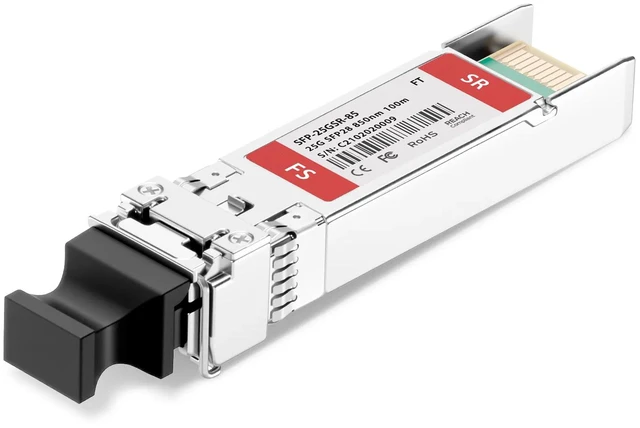

Fortinet FN-TRAN-SFP28-SR Compatible 25GBASE-SR SFP28 850nm 100m Duplex LC/UPC MMF Transceiver Module
- High-Speed 25G Connectivity: Fully compatible with Fortinet FN-TRAN-SFP28-SR, delivering reliable 25Gbps data transfer rates for high-density enterprise networks, data centers, and telecom infrastructure.
- Short-Reach Multimode Performance: Operates at an 850nm wavelength using VCSEL transmitters, supporting transmission distances up to 100m over OM3/OM4 multimode fiber (MMF).
- Industry-Standard Interface: Features standard duplex LC/UPC optical connectors and a hot-swappable SFP28 form factor for seamless plug-and-play installation without network downtime.
- Digital Diagnostics Monitoring (DDM): Integrated DDM/DOM real-time monitoring capability allows tracking of crucial operational parameters such as temperature, optical output power, and voltage.
- Low Power Consumption & High Reliability: Designed for low power consumption (< 1W) with superior EMI performance and strict adherence to SFP28 MSA, IEEE 802.3by 25GBASE-SR, and RoHS standards.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Fortinet FN-TRAN-SFP28-SR Compatible 25GBASE-SR SFP28 850nm 100m Duplex LC/UPC MMF Transceiver Module
Upgrade your enterprise network performance without the OEM markup. The Fortinet FN-TRAN-SFP28-SR Compatible 25GBASE-SR SFP28 Transceiver is engineered to deliver high-speed, reliable 25-gigabit connectivity tailored specifically for Fortinet hardware environments. Whether you are expanding a data center, upgrading server links, or building out high-density core switching, this module offers seamless integration and enterprise-grade reliability.
Key Performance Features- High-Speed 25G Connectivity: Fully coded and programmed to match Fortinet FN-TRAN-SFP28-SR specs, delivering 25Gbps data transfer rates for bandwidth-intensive enterprise networks.
- Short-Reach Multimode Optical Performance: Operates at an 850nm wavelength using a reliable VCSEL transmitter, supporting transmission distances up to 100 meters over OM3 (and up to 150m over OM4) Multimode Fiber (MMF).
- Plug-and-Play Hot-Swappable Design: Features a standard industry-form factor SFP28 footprint and duplex LC/UPC optical connectors, allowing for quick installation without bringing down existing network operations.
- Real-Time Digital Diagnostics (DDM/DOM): Integrated monitoring capabilities track live operational parameters including optical output power, temperature, transceiver supply voltage, and laser bias current to prevent downtime.
- Low Power & High Compliance: Consumes less than 1W of power while strictly adhering to SFP28 MSA, IEEE 802.3by 25GBASE-SR, and RoHS environmental standards.
| FeatureSpecification | |
| Form Factor | SFP28 |
| Data Rate | 25Gbps |
| Wavelength | 850nm |
| Max Distance | 100m (OM3) / 150m (OM4) |
| Media Type | Multimode Fiber (MMF) |
| Connector Type | Duplex LC/UPC |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| Digital Diagnostics (DDM/DOM) | Supported |
| Power Consumption | < 1.0W |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
- High-performance enterprise core switches and routers
- Data center server-to-switch interconnects
- Telecommunication and cloud service provider networks
- High-density virtualization and storage area networks (SAN)
