RCA VGA Video AV Audio HDMI Switch 8x1 Switcher Analog HDTV Splitt Converter Box Multi-Functional HDMI Converter Switch 8 Inputs to HDMI+COAXIAL+SPDIF Output Support 3D and Surround Sound for 1080P HD

Introduction: H18 supports to switch one VGA source, Two Analog Component Video sourceS, Two Analog Composite Video sources and Three HDMI sources for input. All of above with independent analog audio input. The analog audio from the input is digitized and outputted to the HDMI connection. HDMI input supports HDMI 1.3 b and HDMI 1.4 3D. On the Analog Component Video and Analog Composite Video channels, If the resolution of the input signal is 480i or 576i, MS0801-E02 will deinterlace the resolution to 480p or 576p respectively. H18 has the ability of equalization and amplification to ensure HDMI signal's transmission through long cable without quality loss. H18 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

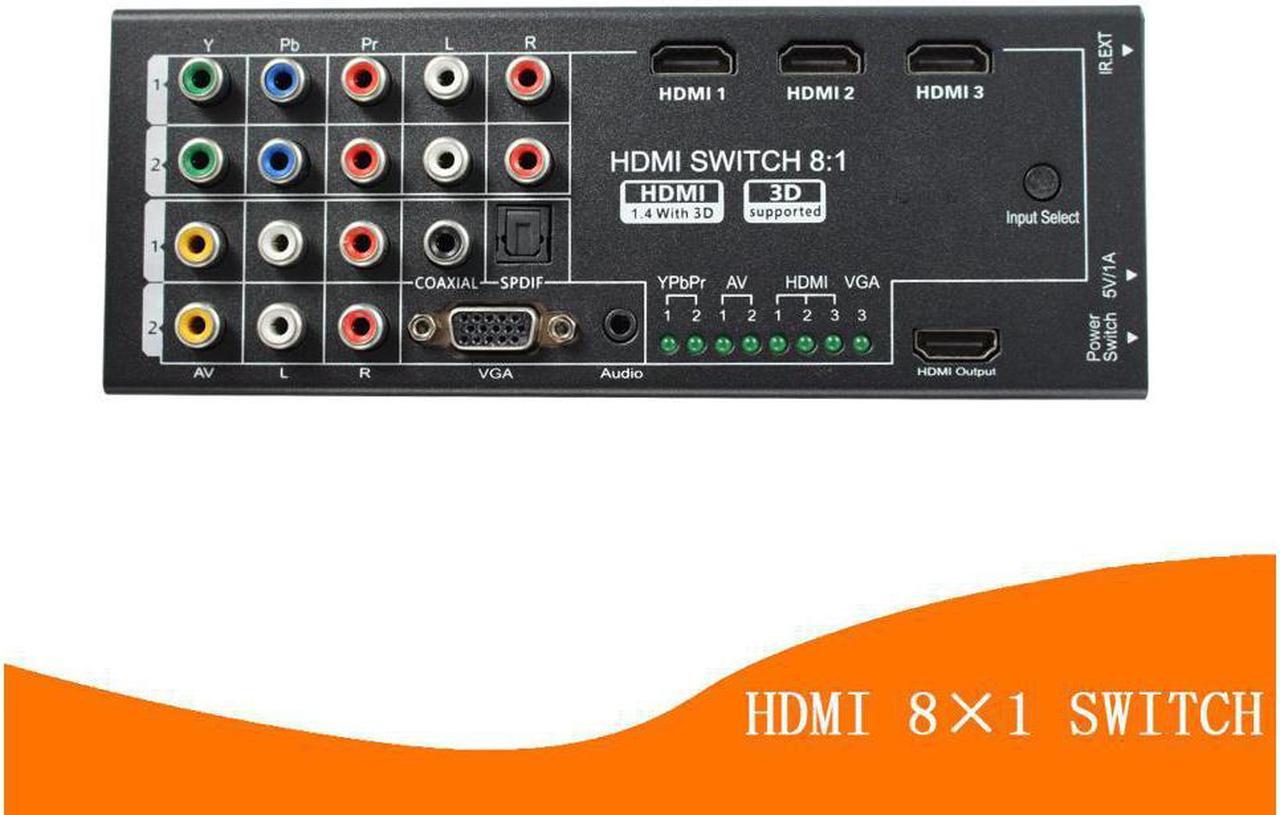

Features: 8-inputs-1 outputs multi-function video/Audio switch. Inputs contain 2×YPBPR, 2×AV, 1×VGA and 3×HDMI signals, Output is HDMI signal and digital audio signal. No image or color distortion. Allows display to view any source at any time. Deinterlace the resolutions of 480i and 576i to 480p and 576p on the YPBPR and AV channels. Delivers uncompressed digital video with zero signal loss. Support high definition resolutions 1080P, 1080I, 720P and standard video format. Double switching modes, IR remote and manual. HDMI V 1.3 / HDMI V 1.4 with 3D. Coaxial and SPDIF audio output.

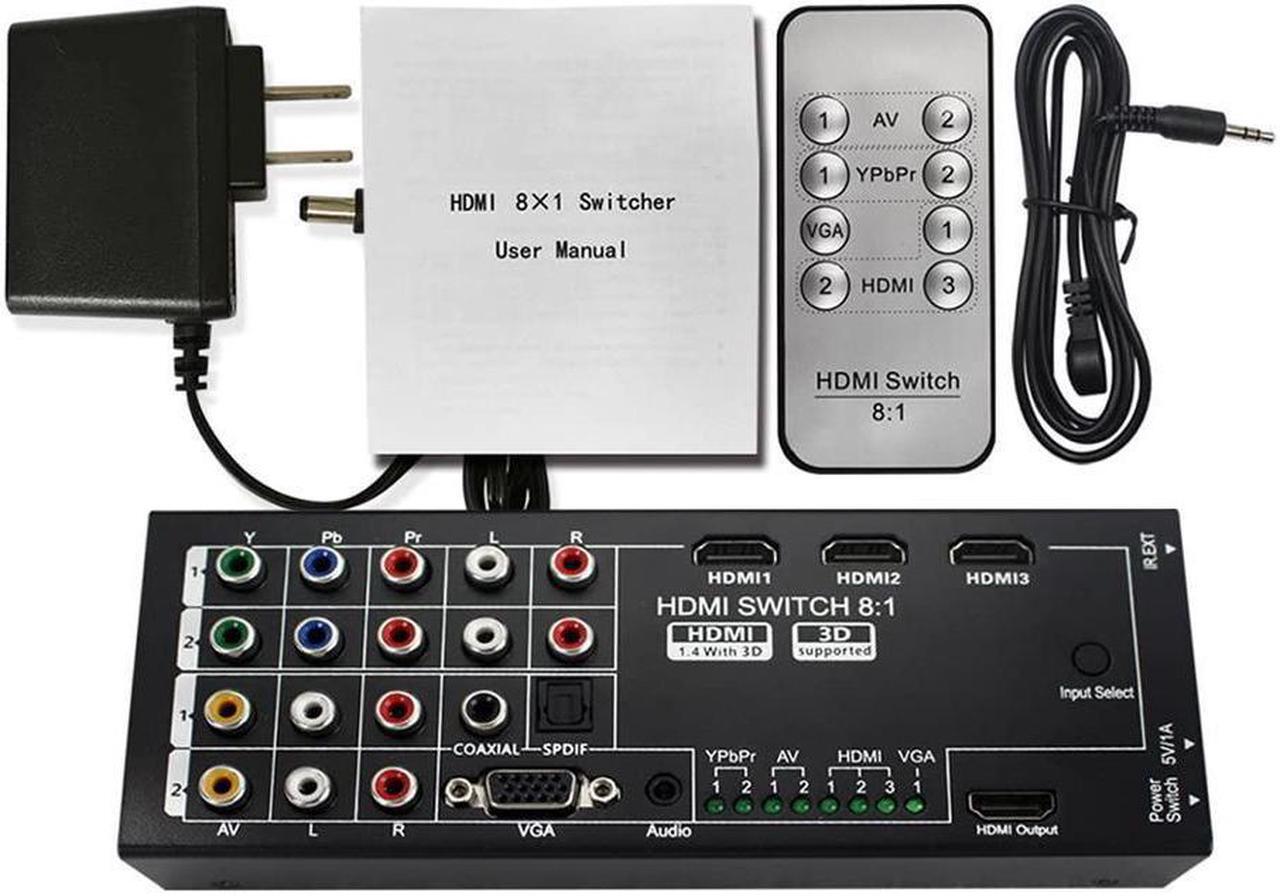

¦ Package Contents:? Main unit. H18.? Power Supply, 5VDC.? Operating Instructions.? Remote. Batteries not included? IR extension cable.
NOTE: Cables are optiona

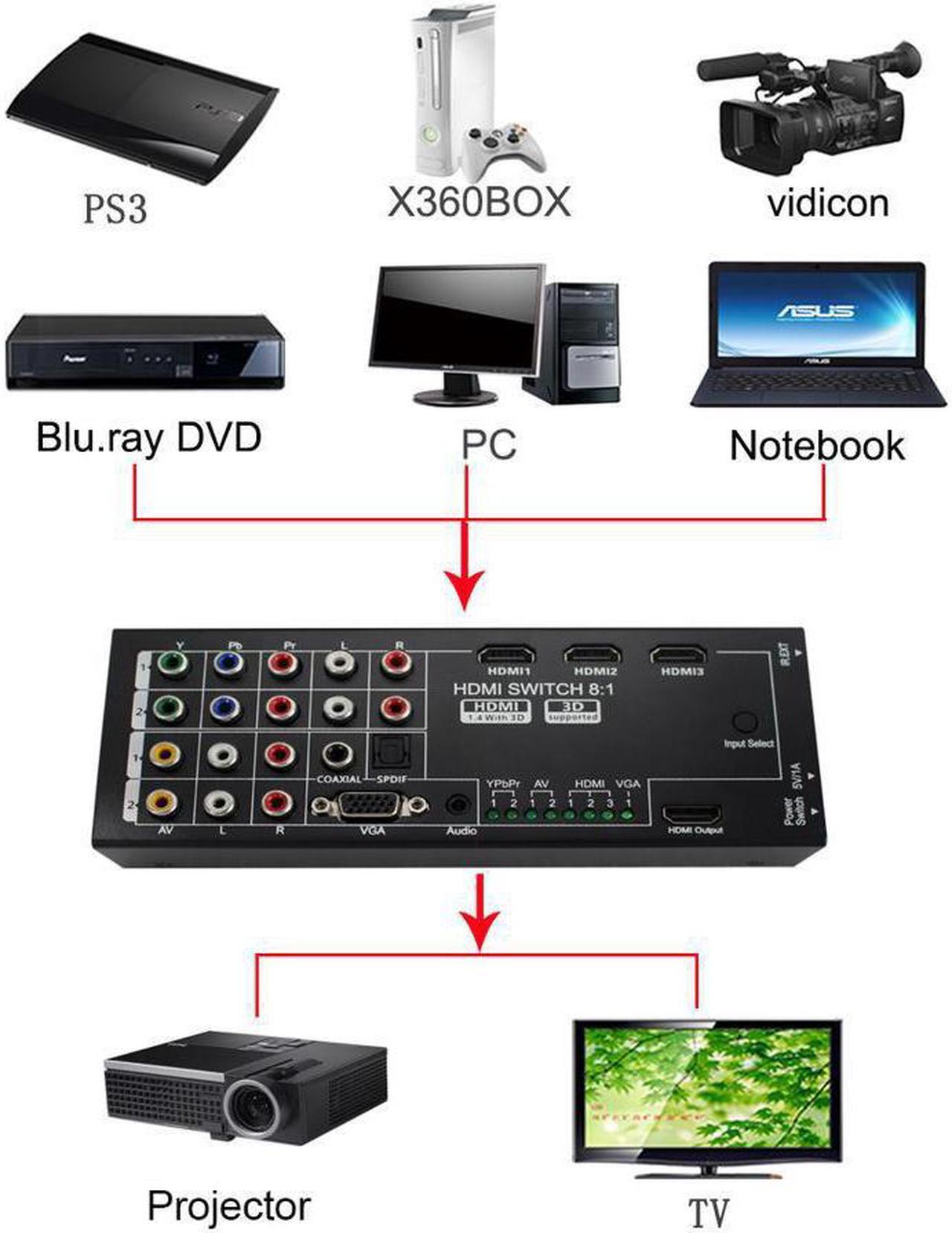

Connections and Operations: 1) Connect the HDMI/YPbPr/AV/VGA input sources (such as HD-DVD, PS3, STB etc) into MS0801-E02. 2) Connect the HDMI outputs (such as HD-LCD, HD-DLP) into H18. 3) Connect the COAXIAL or SPDIF outputs (such as amplifier) into H18. 4) Power on the input source you want to show. 5) Connect the power supply adaptor into H18 and turn on the display you want to watch. 6) Use remote or push the button to choose input source.
Specifications: Operating Temperature Range -5 to +35°C (-41 to +95 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Input Video Signal 0.5 - 1.0 volts p-p Input DDC Signal 5 volts p-p (TTL) Output Video HDMI 1.4 with 3D (Only valid when
input HDMI 3D source) Maximum Transmission Distance
