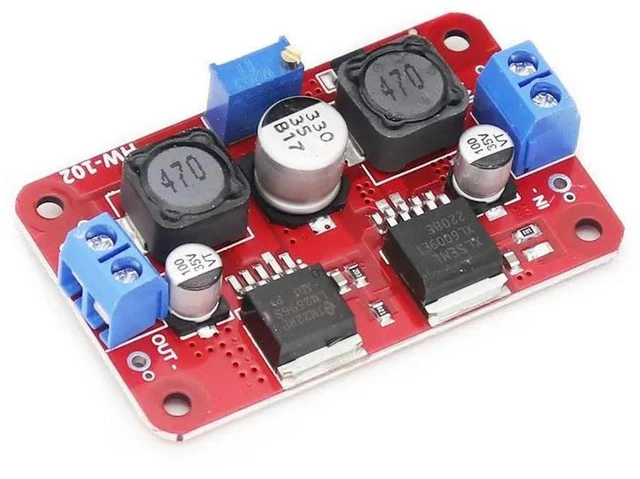

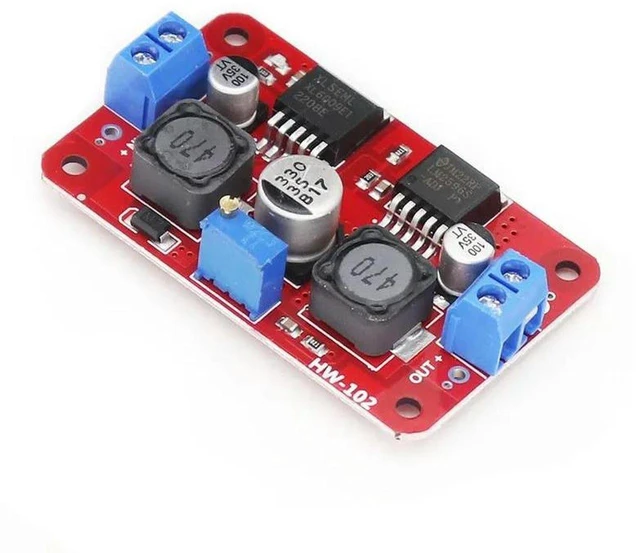

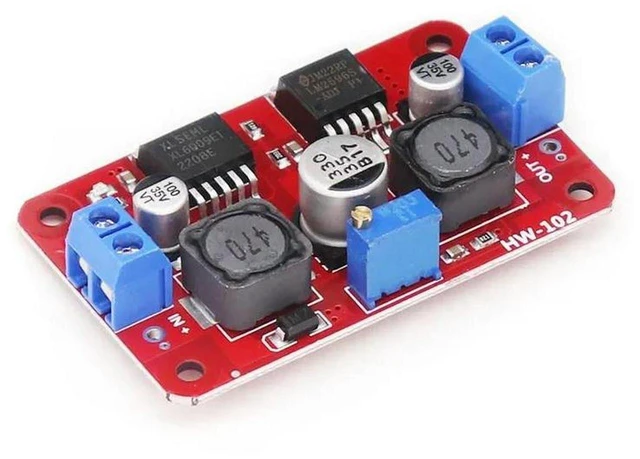

XL6009 & LM2596S DC-DC Boost Buck Converter Module Adjustable Step Up Step Down Voltage Regulator Board 1.25V-26V Input 3.5V-28V Output 3A for Battery Power Conversion and Electronic DIY
- Dual-chip DC-DC design combines an XL6009 step-up circuit with an LM2596S step-down circuit on one compact module.
- Accepts a 1.25V-26V input range for adjustable power conversion in electronic DIY and battery-powered projects.
- Provides adjustable 3.5V-28V output voltage to match different circuit power requirements and testing setups.
- Supports up to 3A output current for battery voltage conversion, adjustable power supply builds, and circuit testing.
- Onboard potentiometer enables manual adjustment of the output voltage for precise tuning during project setup.
- Built-in over-current protection helps reduce damage risks when connected loads draw more current than intended.
- Short-circuit protection helps safeguard the module and connected loads during electronic experiments and circuit testing.
- High conversion efficiency helps reduce heat generation during long running time and continuous DIY power supply operation.
- Compact PCB layout includes clear solder terminals for wiring in battery conversion projects, lab power builds, and prototypes.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
DC-DC boost and buck voltage converter module combining XL6009 step-up and LM2596S step-down circuits on one compact board. It is designed for adjustable battery voltage conversion, DIY power supply builds, electronic prototype testing, circuit testing, and other electronic DIY projects.
Core Selling Points:
Dual-chip design supports both step-up and step-down voltage conversion. An onboard potentiometer allows manual adjustment of the output voltage for different circuit requirements. Built-in over-current and short-circuit protection helps reduce damage risks to the module and connected loads. High conversion efficiency and low heat generation support stable continuous operation. The compact PCB includes clear solder terminals for wiring in battery conversion, laboratory power, and electronic experiments.
Technical Specifications:
Chipset: XL6009 boost and LM2596S buck. Module type: DC-DC step-up and step-down converter. Input voltage: 1.25V-26V. Adjustable output voltage: 3.5V-28V. Maximum output current: 3A. Protection: over-current and short-circuit protection. Control: onboard potentiometer. Construction: compact PCB with solder terminals.
Before Purchase:
Confirm that the required input voltage is within 1.25V-26V and that the target adjustable output voltage is within 3.5V-28V. The maximum output current is 3A. This module is intended for electronic DIY, battery voltage conversion, circuit testing, and adjustable power supply projects.
