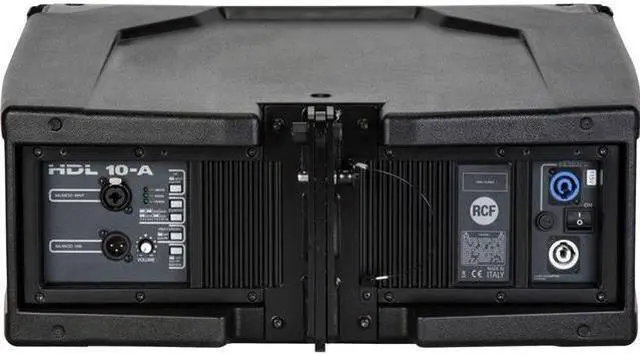

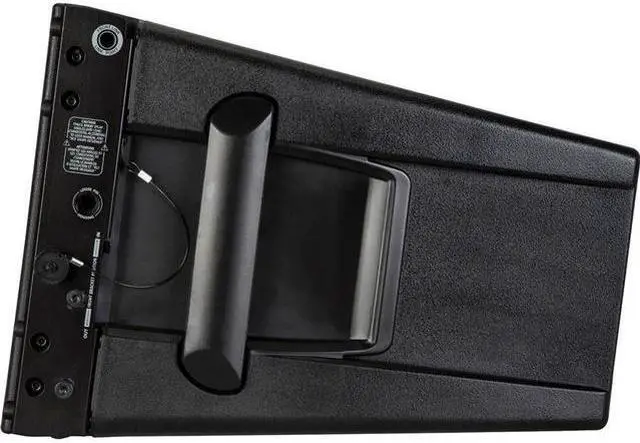

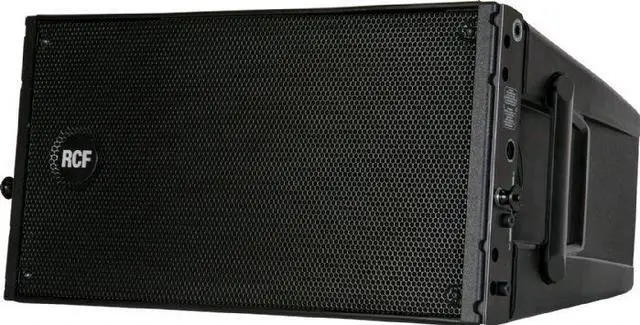

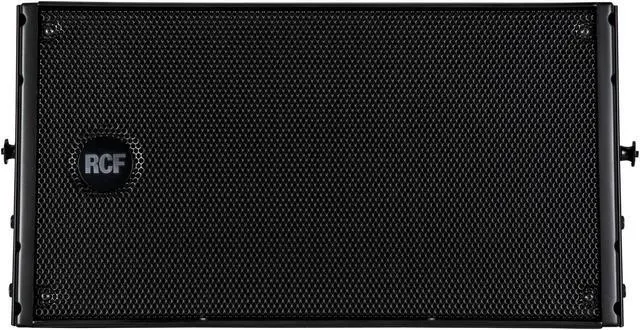

RCF HDL10A 1400W Line Array Module

RCF HDL 10-A | 1400W Active Line Array Module

The RCF HDL 10-A is a compact, high-performance active line array module designed for both touring and installed sound applications. Delivering 1400W peak power and a maximum SPL of 133 dB, this system is perfect for live sound reinforcement where high power and fast setup are essential. With dual 8" woofers, a 2" compression driver, and a DSP-controlled input section, the HDL 10-A offers exceptional sound quality in a highly portable package.

HDL 10-A Competitive Differences

• 1400W Peak Power, 700W RMS


• 133 dB Max SPL for High Sound Pressure Levels


• 2 x 8" Woofers and 1 x 2" Compression Driver


• Tour-grade build with composite and wooden-reinforced enclosure


• DSP with selectable presets for different acoustic environments


• Efficient Class-D amplifier with convection cooling

Full Product Description

The RCF HDL 10-A is a versatile active line array module that combines power, precision, and portability. Ideal for both live touring and installed sound, the HDL 10-A features RCF's advanced transducer technology, including a large format 2.5 voice coil compression driver that delivers clear and precise high frequencies. Its dual 8 woofers provide controlled bass response, making it suitable for a wide range of audio applications. The system's Class-D amplifier ensures high efficiency and reliable performance, while the integrated DSP offers easy-to-use presets for quick setup and optimization.

Features

• 1400W Peak Power, 700W RMS


• 133 dB Max SPL


• Frequency Response: 65 Hz 20 kHz


• Horizontal Coverage: 100°


• Vertical Coverage: 15°


• Composite PP enclosure with wooden reinforcement


• DSP with selectable presets


• Powercon IN/OUT connections


• Tour-grade rigging and flyware

Specifications

• Frequency Response: 65 Hz 20 kHz


• Max SPL @ 1m: 133 dB


• Horizontal Coverage: 100°


• Vertical Coverage: 15°


• Compression Driver: 1 x 2.0", 2.5" v.c


• Woofer: 2 x 8", 2.0" v.c


• Input Connectors: XLR


• Output Connectors: XLR


• Power Supply: 1400W Peak, 700W RMS


• Cooling: Convection


• Cabinet Material: PP Composite


• Color: Black, White


• Dimensions (H x W x D): 11.57" x 22.4" x 17.09"


• Weight: 44.97 lbs
