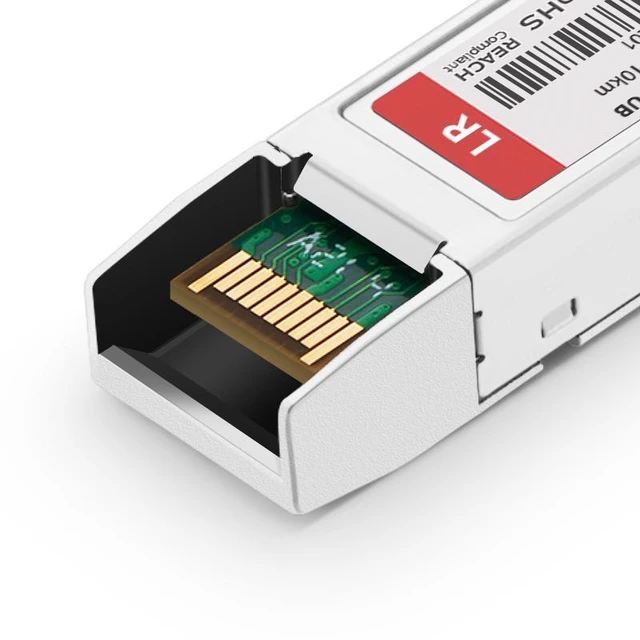

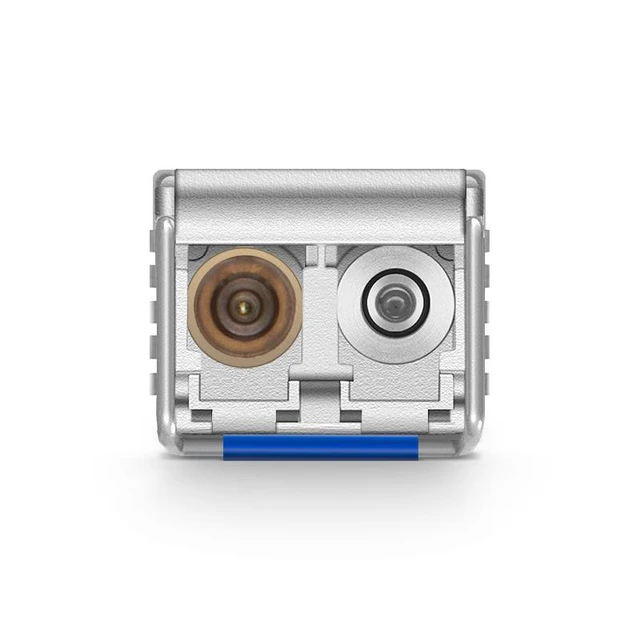

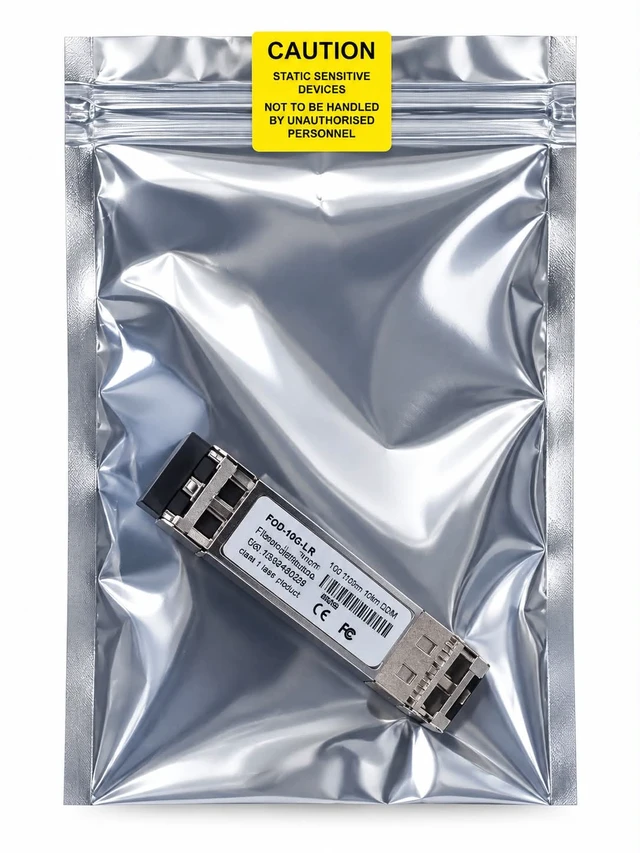

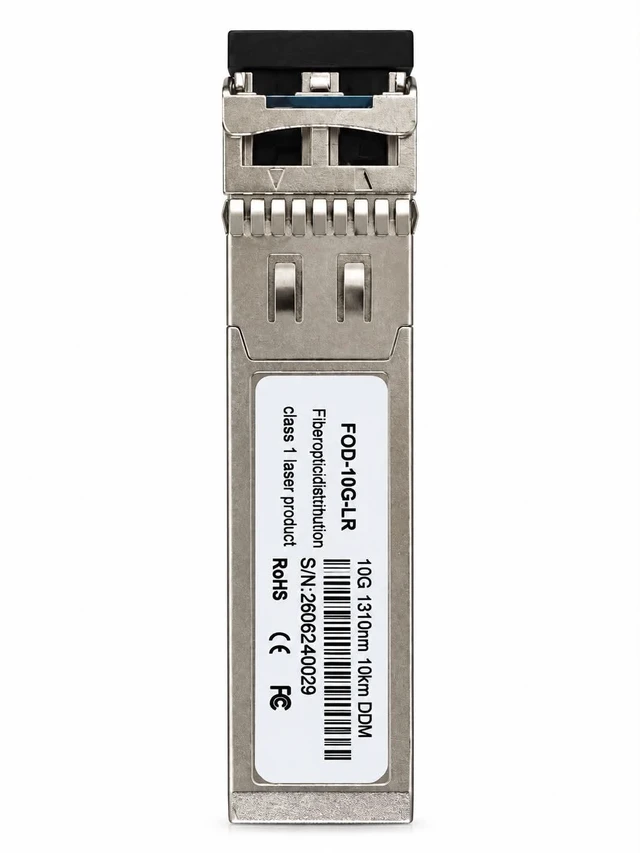

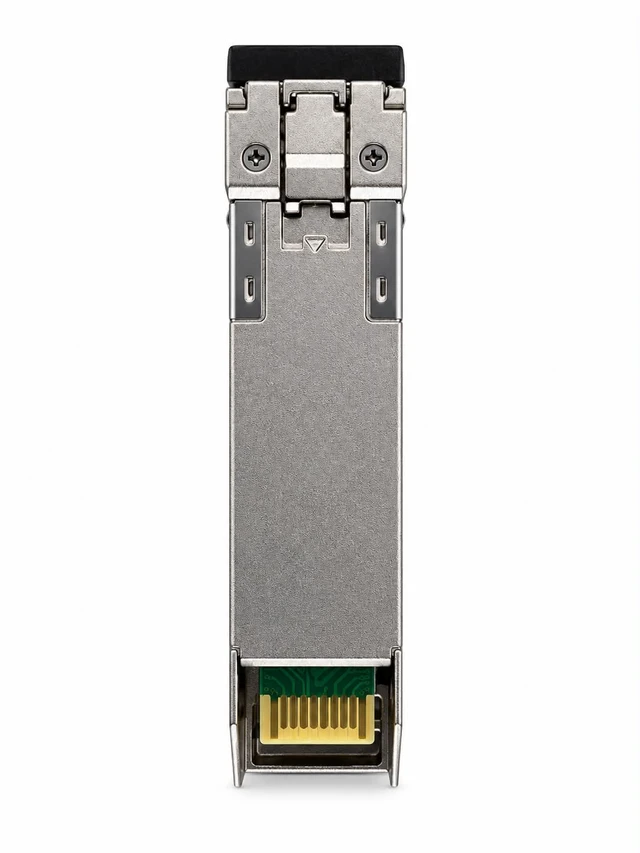

D-Link DEM-432XT Compatible 10GBASE-LR SFP+ Transceiver Module, 1310nm SMF, 10km, LC, DOM
- Direct replacement for the D-Link DEM-432XT 10GBASE-LR SFP+ module
- Coded and tested in D-Link DXS and DGS series switches for guaranteed compatibility
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 10km reach at 1310nm over single-mode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- DFB transmitter with PIN receiver for stable long-reach performance
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
D-Link DEM-432XT Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Link two buildings or two racks at 10 Gigabit over single-mode fiber. This D-Link DEM-432XT compatible SFP+ transceiver runs 10GBASE-LR and 10GBASE-LW traffic to 10 kilometers at 1310nm through an LC duplex interface, and reports temperature, voltage, and optical power in real time through built-in Digital Optical Monitoring so faults are easy to trace.
Built to the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, it interoperates in mixed-vendor networks and suits campus backbones, metro area links, data center interconnects, and wiring closet uplinks. Every module is programmed with D-Link EEPROM coding and tested in D-Link 10G switches, routers, servers, and network interface cards before shipping, so the port sees it as it would the OEM DEM-432XT, without the OEM price.
Specifications
| Compatible OEM Part# | DEM-432XT | Manufacturer Part# | FOD-DLK-DEM432XT | |
| Form Factor | SFP+ | Data Rate | 10 Gbps | |
| Wavelength | 1310 nm | Media Type | SMF | |
| Max Distance | 10 km | Transmitter Type | DFB | |
| Receiver Type | PIN | Transmitter Power | -6 ~ 0 dBm | |
| Receiver Sensitivity | < -14.4 dBm | Extinction Ratio | > 3.5 dB | |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex | |
| Power Consumption | 1 W | DDM/DOM | Yes | |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C | |
| Application | 10GBASE-LR/10GBASE-LW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg | |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
