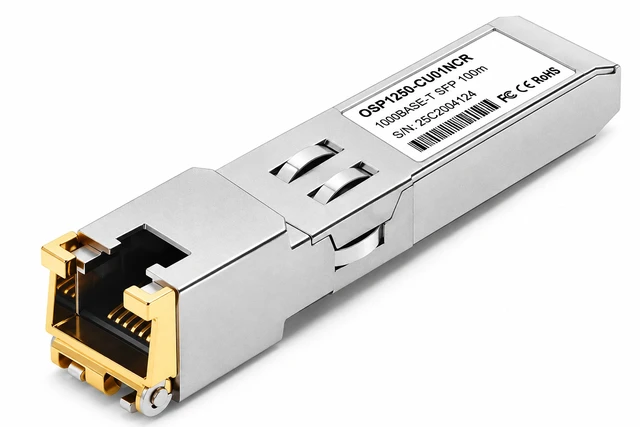

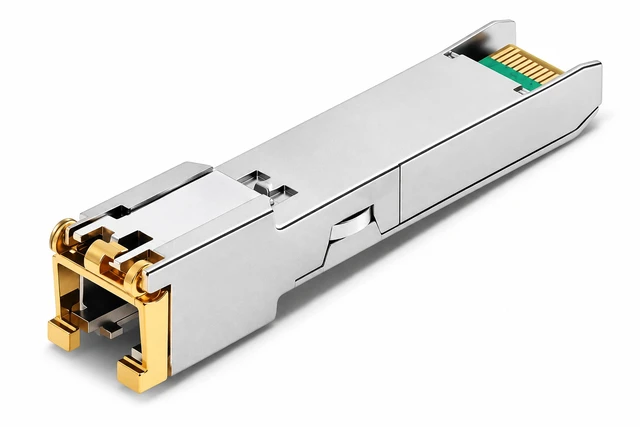

HPE J8177C Compatible 1000BASE-T SFP Copper RJ45 Transceiver Module, 100m
- Direct replacement for the HPE J8177C 1000BASE-T SFP module
- Coded and tested in HPE and Aruba ProCurve switches
- Compliant with SFP MSA, IEEE 802.3, and IEEE 802.3ab
- 100m (328 ft) reach for Gigabit Ethernet over Cat5, Cat5e, or better copper cable
- Power draw of 1.1 W
- Compact RJ45 female connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
HPE J8177C Compatible 1000BASE-T SFP Transceiver Module (Copper, 100m, RJ45)
This HPE J8177C compatible SFP module delivers Gigabit Ethernet over Cat5, Cat5e, or better copper cable at distances up to 100 meters (328 ft) through an RJ45 connector. It meets the Gigabit Ethernet and 1000BASE-T specifications in IEEE 802.3-2002 and IEEE 802.3ab, so it turns an SFP slot into a standard copper port for switch-to-switch links, NIC connections, and media converter uplinks.
Every unit is programmed with HPE EEPROM coding and tested in HPE 1G switches, routers, servers, and network interface cards before it ships, so the port recognizes it exactly as it would the OEM J8177C. Each module is engineered, produced, and tested in-factory, and against the OEM part it can cut networking cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | J8177C | Manufacturer Part# | FOD-HPE-J8177C | |
| Form Factor | SFP | Data Rate | 1000 Mbps | |
| Wavelength | NA | Media Type | Cat5/5e/6/6a cable | |
| Max Distance | 100 m | Transmitter Type | N/A | |
| Receiver Type | N/A | Transmitter Power | N/A | |
| Receiver Sensitivity | N/A | Extinction Ratio | N/A | |
| Receiver Overload | N/A | Connector | RJ45 Female | |
| Power Consumption | 1.1 W | DDM/DOM | No | |
| Compliance | RoHS, CE, REACH, SFP MSA, IEEE 802.3, IEEE 802.3ab | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C | |
| Application | Gigabit Ethernet, switch to switch interface, switch to NIC or media converter interface, other 1G links | Shipping Weight | 0.03 kg | |
| Dimensions (LxWxH) | 68.0×13.5×14 mm |
