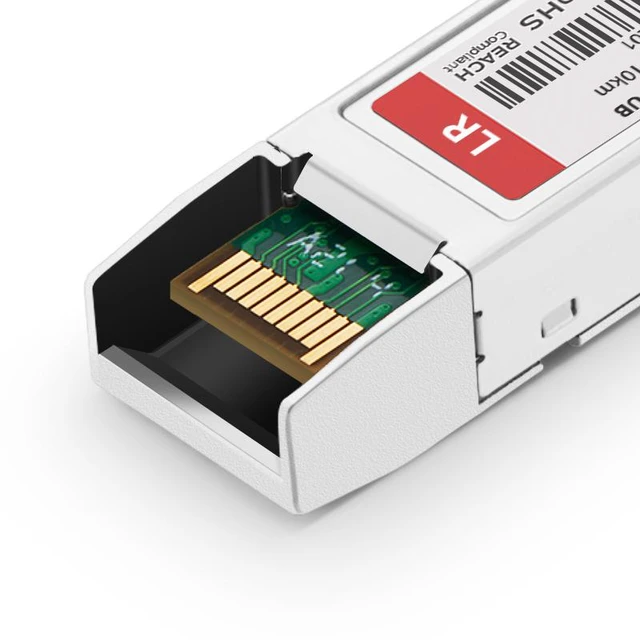

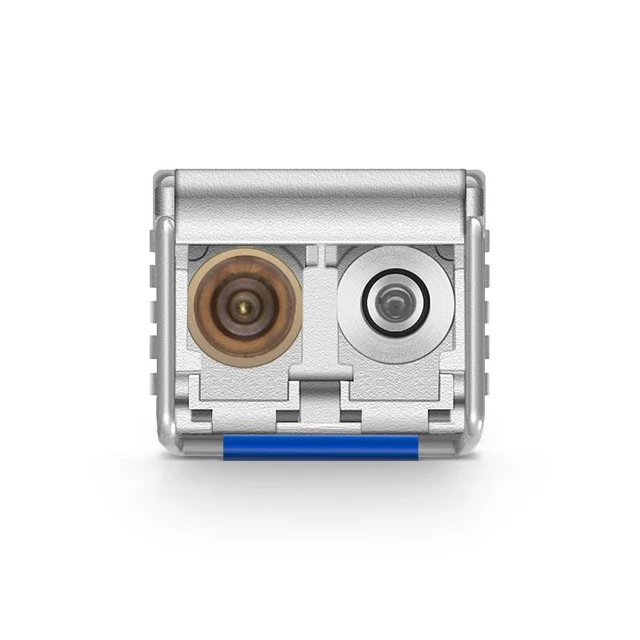

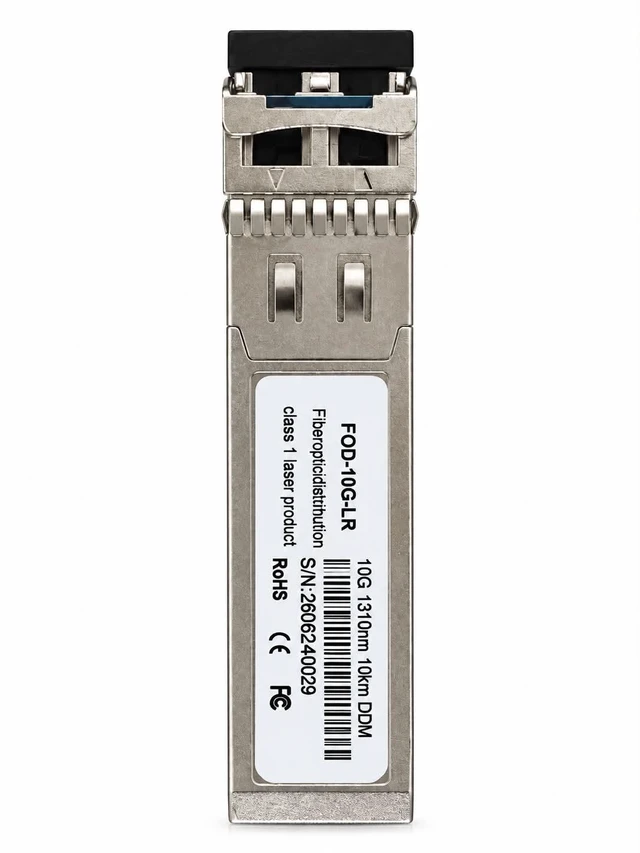

Juniper EX-SFP-10GE-LR Compatible 10GBASE-LR SFP+ Transceiver Module, 1310nm SMF, 10km, LC, DOM
- Direct replacement for the Juniper EX-SFP-10GE-LR 10GBASE-LR SFP+ module
- Coded and tested in Juniper EX and QFX series switches for guaranteed compatibility
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 10km reach at 1310nm over single-mode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- DFB transmitter with PIN receiver for stable long-reach performance
- Power draw under 1 W
- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Juniper EX-SFP-10GE-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Connect EX and QFX switches across a campus or between buildings at 10 Gigabit. This Juniper EX-SFP-10GE-LR compatible SFP+ transceiver runs 10GBASE-LR and 10GBASE-LW traffic to 10 kilometers over single-mode fiber at 1310nm through an LC duplex pair, with Digital Optical Monitoring feeding back live temperature, voltage, and optical power so a weak link surfaces before it drops.
Built to the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards, it interoperates cleanly in mixed-vendor networks and fits campus backbones, wiring closet uplinks, metro area links, and data center interconnects. Each unit is written with Juniper EEPROM coding and bench-verified in Juniper 10G switches, routers, and network interface cards before shipping, so the port accepts it just as it would the OEM EX-SFP-10GE-LR, without the OEM price.
Specifications
| Compatible OEM Part# | EX-SFP-10GE-LR | Manufacturer Part# | FOD-JNP-EXSFP10GELR | |
| Form Factor | SFP+ | Data Rate | 10 Gbps | |
| Wavelength | 1310 nm | Media Type | SMF | |
| Max Distance | 10 km | Transmitter Type | DFB | |
| Receiver Type | PIN | Transmitter Power | -6 ~ 0 dBm | |
| Receiver Sensitivity | < -14.4 dBm | Extinction Ratio | > 3.5 dB | |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex | |
| Power Consumption | 1 W | DDM/DOM | Yes | |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C | |
| Application | 10GBASE-LR/10GBASE-LW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg | |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
