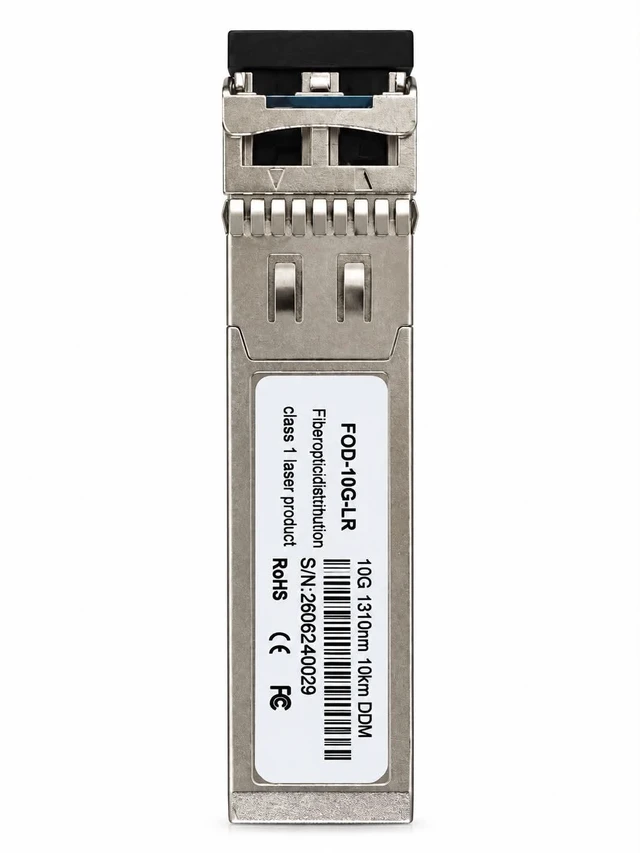

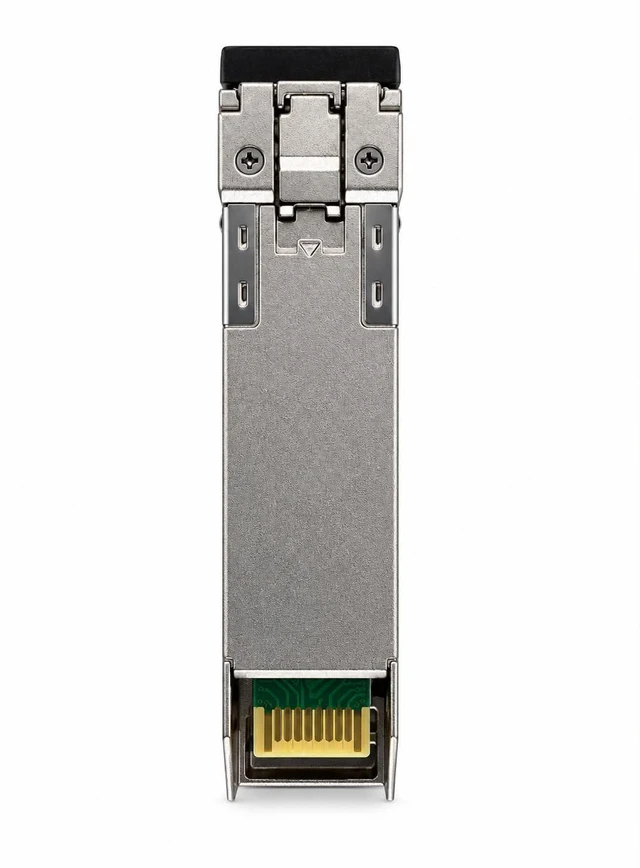

Juniper QFX-SFP-10GE-LR Compatible 10GBASE-LR SFP+ Transceiver Module, 1310nm SMF, 10km, LC, DOM
- Direct replacement for the Juniper QFX-SFP-10GE-LR 10GBASE-LR SFP+ module
- Coded and tested in Juniper QFX series data center switches for guaranteed compatibility
- Compliant with SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, and SFF-8472
- 10km reach at 1310nm over single-mode fiber
- Digital Optical Monitoring built in for real-time link diagnostics
- DFB transmitter with PIN receiver for stable long-reach performance
- Power draw under 1 W

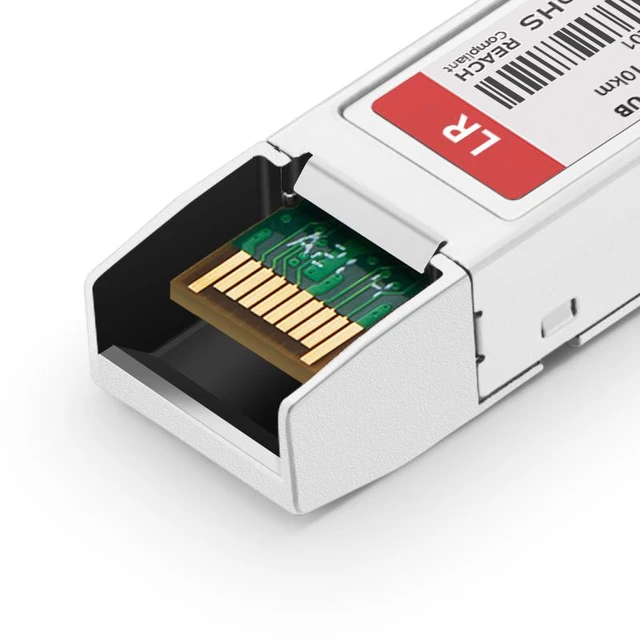

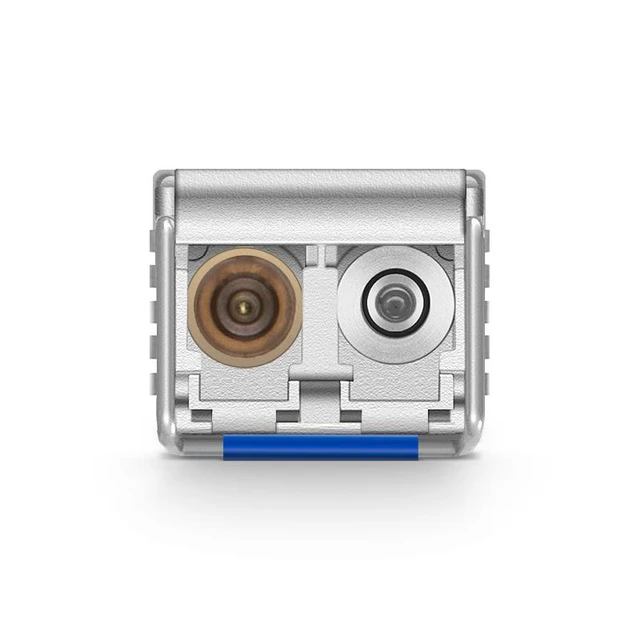

- LC duplex connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Juniper QFX-SFP-10GE-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
This Juniper QFX-SFP-10GE-LR compatible SFP+ transceiver moves 10GBASE-LR and 10GBASE-LW traffic across single-mode fiber at 1310nm, reaching 10 kilometers through an LC duplex interface. Digital Optical Monitoring is built in, reporting temperature, voltage, and optical power live so a fading link can be caught during maintenance rather than during an outage.
The module is built to the SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards for clean interoperation in mixed-vendor networks, and it fits QFX spine and leaf deployments, data center interconnects, metro links, and campus fiber backbones. Each unit is programmed with Juniper EEPROM coding and tested in Juniper 10G switches, routers, and network interface cards before shipping, so the port treats it exactly as it would the OEM QFX-SFP-10GE-LR, at a much lower cost.
Specifications
| Compatible OEM Part# | QFX-SFP-10GE-LR | Manufacturer Part# | FOD-JNP-QFXSFP10GELR |
| Form Factor | SFP+ | Data Rate | 10 Gbps |
| Wavelength | 1310 nm | Media Type | SMF |
| Max Distance | 10 km | Transmitter Type | DFB |
| Receiver Type | PIN | Transmitter Power | -6 ~ 0 dBm |
| Receiver Sensitivity | < -14.4 dBm | Extinction Ratio | > 3.5 dB |
| Receiver Overload | > 0.5 dBm | Connector | LC Duplex |
| Power Consumption | 1 W | DDM/DOM | Yes |
| Compliance | RoHS, CE, REACH, SFP+ MSA, IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C |
| Application | 10GBASE-LR/10GBASE-LW Ethernet, 10G fiber channel, 10G data center switches and routers, 10G network interface cards, 10G fiber media converters | Shipping Weight | 0.03 kg |
| Dimensions (LxWxH) | 56.7×13.7×8.5 mm |
