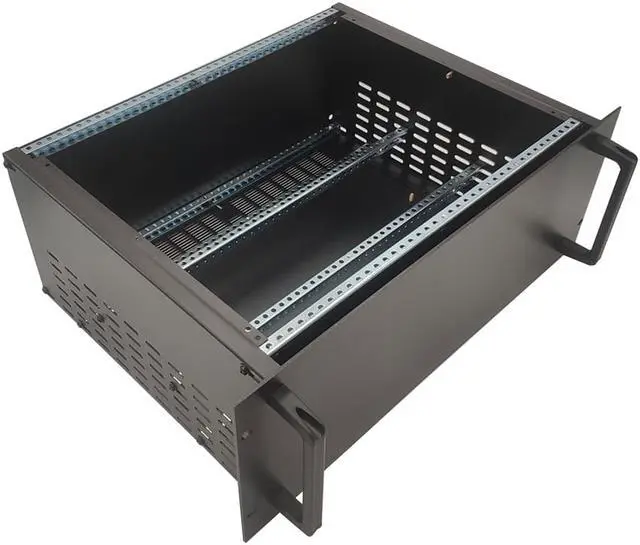

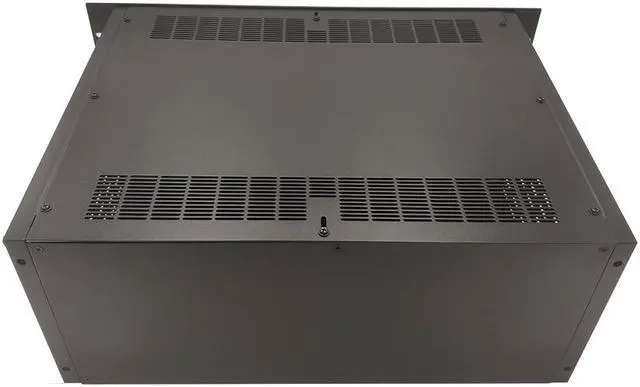

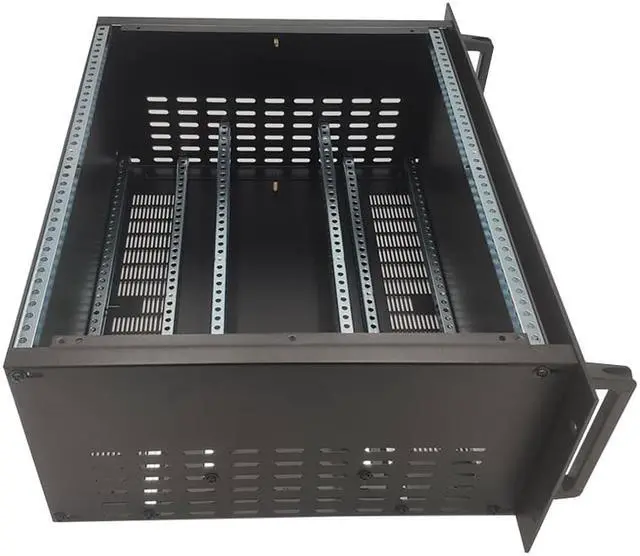

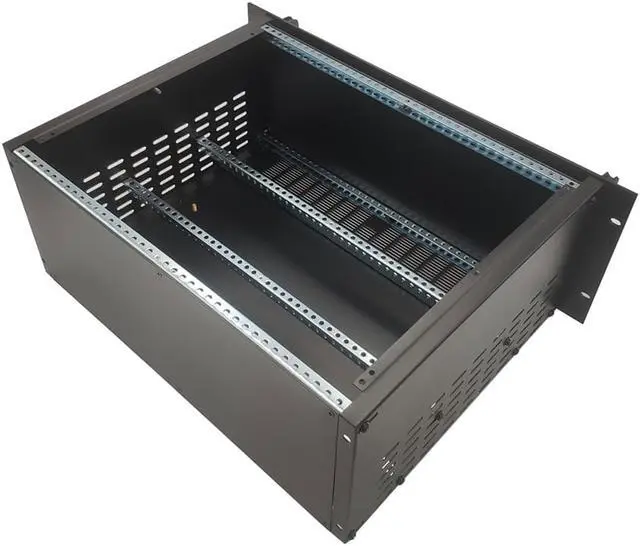

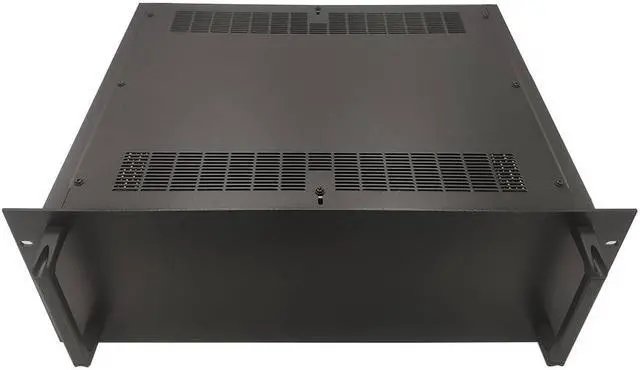

19" 4U-D2 Rack Mount cabinet Steel/Aluminum enclosure with mounting bar DIY
- Dimensions conform to IEC-297, EIA-310, C1977 and DIN41494.
- Premium grade electro-galvanized steel and aluminum (Front Panel).
- Designed and manufactured under ISO9001:2015 and ISO14001:2015.
- Five stage iron-phosphate pretreatment with powder coat finish. Tested to 500 hours salt spray under ASTM-D610-01 and ASTM-B117.
- All materials RoHS Compliant.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The PF-19 Series of rack mounted 19" Enclosures, is very versatile and user friendly. Designed for both professional users and home hobbyists alike, our latest version continues the trend of reducing hardware and maximizing user convenience. The heavy duty electro-galvanized steel body features perforated, removable top and bottom panels providing ample ventilation and easy access to work inside. The 3.00 mm thick Aluminum front and rear panels are easily worked to your specification. Our customized extruded aluminum mounting rails are slotted to allow for convenient PCB and component installation. PF-19 is provided with self adhesive rubber feet if rack mounting is not required.
Dimension:
Front panel: 482.6 x 177 x 3 mm.
Cabinet size: 425 x 335 x 172 mm.
Handle height: 130 mm.
Dimension:
Front panel: 482.6 x 177 x 3 mm.
Cabinet size: 425 x 335 x 172 mm.
Handle height: 130 mm.
