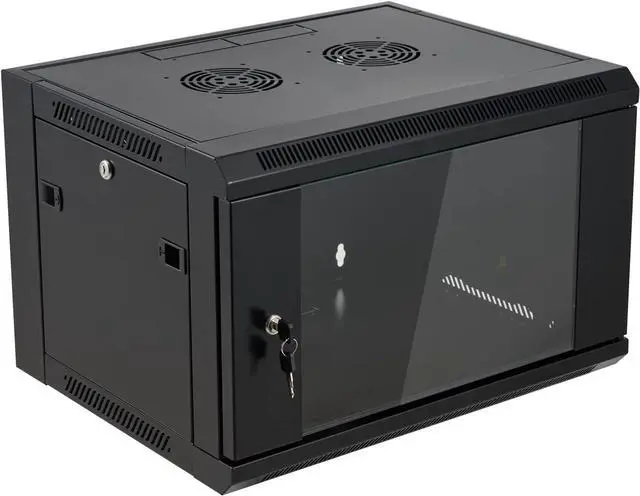

6U Wall Mount Server Cabinet Network Rack Enclosure Locking Glass Door by Tedgetal
- [Size]: 14.3" H x 22.4" W x 17.7" D. Total Usable Space of 13.75" front to back.
- [Heavy Duty]: Tedgetal SE series wall mount cabinet is made from SPCC cold-rolled steel with maximum loading capacity of 133lbs(60kgs) for equipments.
- [Security and Protection]: Locking front door and side panel prevent unauthorized access to equipments.
- [Easy Access]: Quick open side panel for easy maintenance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

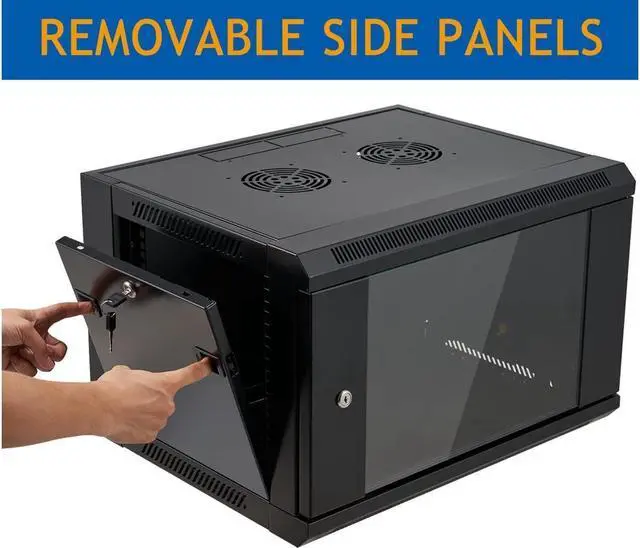

Tedgetal SE Wall Cabinet is a perfect choice for the installation of both cabling and equipment, suitable for a wide range of applications including local area networking (LAN) cabling and hardware, and the housing of security, audio and visual equipment. Support up to 60kgs (133lbs) of networking equipment. It features removable side panels for easy access to cables and connection.
Flat packaged for protection and storage with simple and quick assembly.

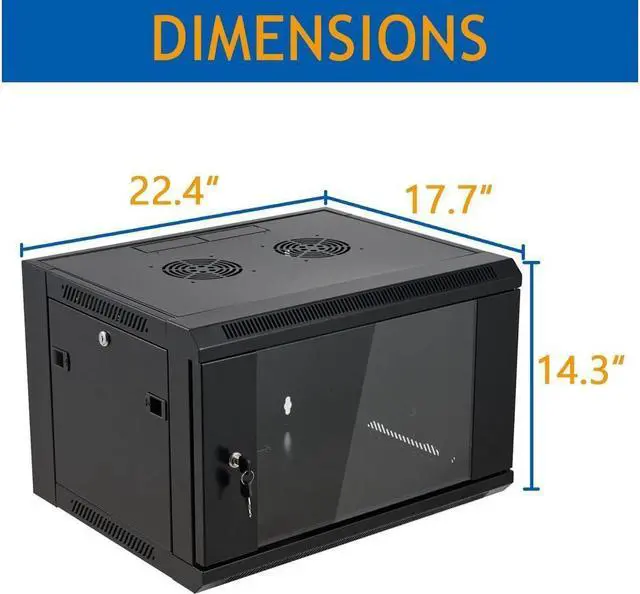

Dimension: Width 22.4", Depth 17.7", Height 14.3" (6U)/ 19.7" (9U) / 25" (12U)
Loading Capacity: 133lbs(60kgs)
Material (Front Door): 5mm Tempered Glass Door with SPCC T1.2mm
Material (19" Rails): SPCC T1.2mm
Material (Others): SPCC T1.0mm

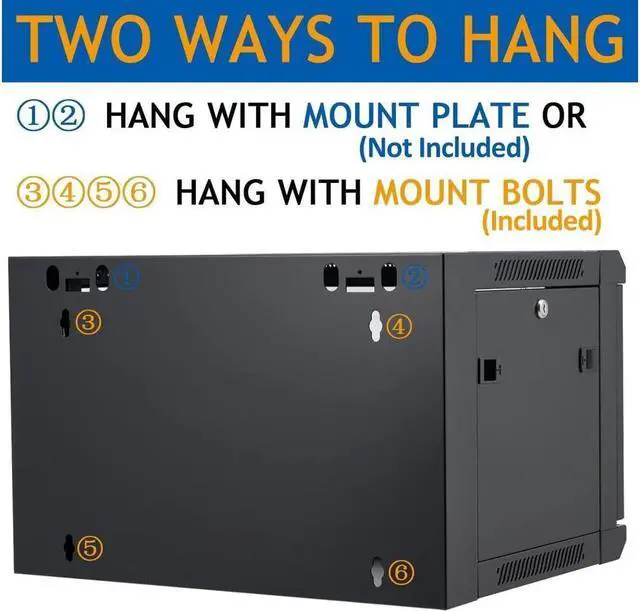

Two Ways to Hang to Wall
1. Hang with Wall Plate (note: wall plate is not included)
2. Hang with Mount Bolts (4pcs of mount bolts are included)

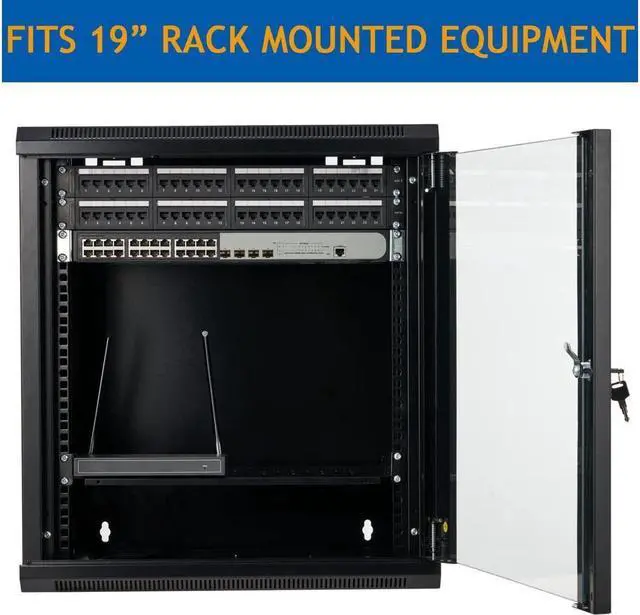

Suitable for Standard 19" Rack Mount Equipment
1. Network equipment: patch panel, switch, shelves and so on
2. Audio & Video system

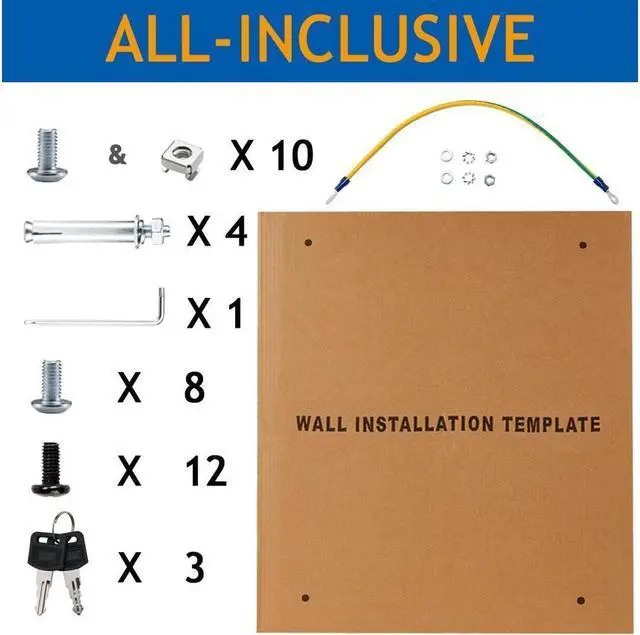

All Accessories for Assembly are Included
Including:
10pcs of M6 Screws and Cage Nuts
4pcs of Mount Bolts
1pcs of Security Torx Wrech
8pcs of M6 Screws
12pcs 0f 10-32 Screws
3pcs of Keys
1pc of Wall Installation Template
2 sets of Earthing Kits
Installation Manual
Flat packaged for protection and storage with simple and quick assembly.
Dimension: Width 22.4", Depth 17.7", Height 14.3" (6U)/ 19.7" (9U) / 25" (12U)
Loading Capacity: 133lbs(60kgs)
Material (Front Door): 5mm Tempered Glass Door with SPCC T1.2mm
Material (19" Rails): SPCC T1.2mm
Material (Others): SPCC T1.0mm
Two Ways to Hang to Wall
1. Hang with Wall Plate (note: wall plate is not included)
2. Hang with Mount Bolts (4pcs of mount bolts are included)
Suitable for Standard 19" Rack Mount Equipment
1. Network equipment: patch panel, switch, shelves and so on
2. Audio & Video system
All Accessories for Assembly are Included
Including:
10pcs of M6 Screws and Cage Nuts
4pcs of Mount Bolts
1pcs of Security Torx Wrech
8pcs of M6 Screws
12pcs 0f 10-32 Screws
3pcs of Keys
1pc of Wall Installation Template
2 sets of Earthing Kits
Installation Manual
