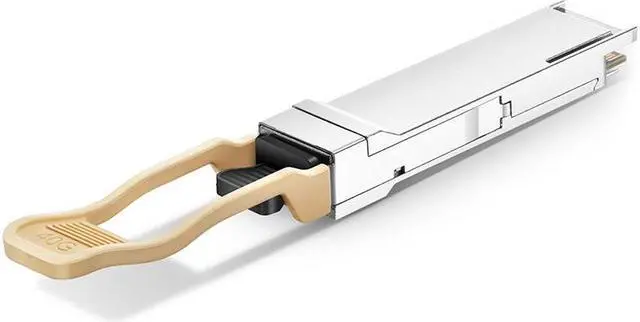

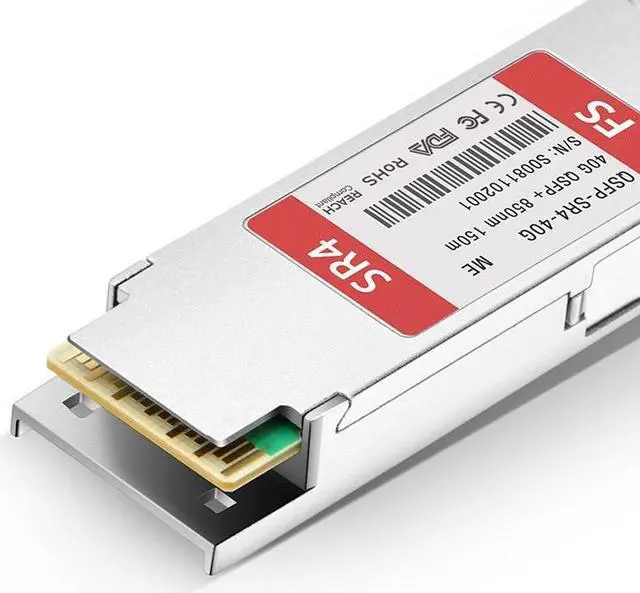

Mellanox MC2210411-SR4 Compatible QSFP+ 40GBASE-SR4 850nm 150m DOM MPO-12/UPC MMF Optical Transceiver Module, Support 4 x 10G-SR - IN STOCK
- Mellanox Compatible - MC2210411-SR4
- Form Factor - QSFP+
- Max Data Rate - 41.25Gbps (4x 10.3125Gbps)
- Wavelength - 850nm
- Max Cable Distance -150m@OM4/100m@OM3

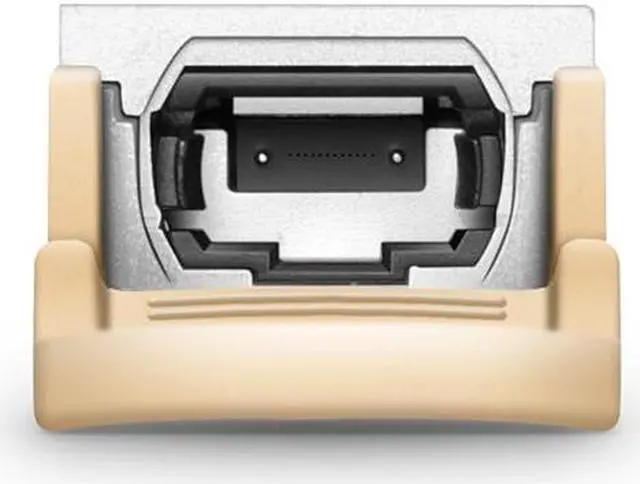

- Connector - MTP/MPO-12 Male
- Media - MMF
- Transmitter Type - VCSEL
- Receiver Type - PIN
- TX Power - -7.1~1.9dBm
- Receiver Sensitivity - <-10.3dBm
- Powerbudget - 3.5dB
- Receiver Overload - 2.4dBm
- Power Consumption - <1.5W
- Core Size - 50um
- Extinction Ratio - >3dB
- Modulation - NRZ
- Host FEC -
- Commercial Temperature Range - 0 to 70°C (32 to 158°F)
- Protocols P- IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ruckus 10G-SFPP-TX-A
Vendor Name-Fiberopticdistribution
Form Factor -SFP+
Max Data Rate -10Gbps
Power Consumption - 2.9W
Cable Distance -30m@Cat6a/Cat7 or Better
Connector-RJ-45
Cable Type -Copper
EMC (Electro Magnetic Compatibility) -Supported
MTBFn-5, 000, 000 Hours
Commercial Temperature Range -0 to 70°C (32 to 158°F)
Protocols -IEEE 802.3 an, IEEE 802.3 az, SFP+ MSA, SFF-8431
Vendor Name-Fiberopticdistribution
Form Factor -SFP+
Max Data Rate -10Gbps
Power Consumption - 2.9W
Cable Distance -30m@Cat6a/Cat7 or Better
Connector-RJ-45
Cable Type -Copper
EMC (Electro Magnetic Compatibility) -Supported
MTBFn-5, 000, 000 Hours
Commercial Temperature Range -0 to 70°C (32 to 158°F)
Protocols -IEEE 802.3 an, IEEE 802.3 az, SFP+ MSA, SFF-8431
