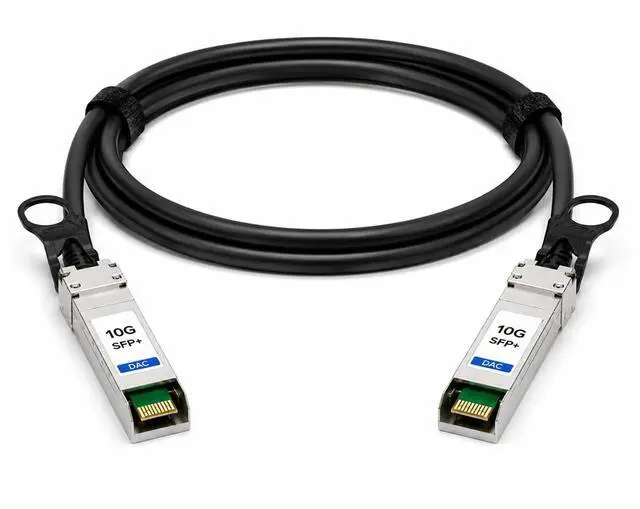

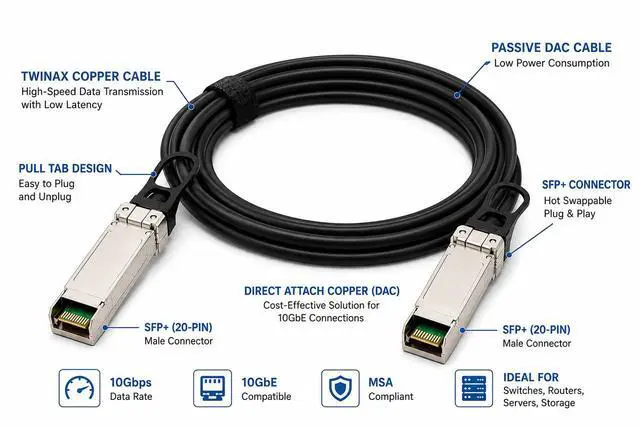

1m (3ft) Chelsio TAPCABLE1M Compatible 10G SFP+ Passive Direct Attach Copper Twinax Cable
- Functionally identical to Chelsio TAPCABLE1M, individually programmed and tested on Chelsio equipment before shipping
- Supports data rates up to 10.5Gbps, covering 10GBASE-CU, 8G Fibre Channel, and 10G FCoE
- 1 meter (3.3ft) passive Twinax copper, 30AWG, with 100 cable impedance
- No optics required, which removes the cost of separate transceivers and fiber patch cords from every link
- I/O connector built for high-speed differential signalling, with Improved Pluggable Form Factor (IPF) compliance for better EMI/EMC performance
- Single 3.3V power supply and near-zero latency, since a passive design has no active electronics in the signal path
- PVC jacket with a 25mm minimum bend radius for tight rack routing
- Operating temperature 0°C to 70°C, storage -40°C to 85°C, RoHS compliant and lead-free
- Common uses: Chelsio Unified Wire Adapters, storage area networks (SAN), network attached storage, switched fabric I/O, and data center cabling infrastructure
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This Chelsio TAPCABLE1M compatible 10G SFP+ passive Direct Attach Copper cable is a cost-effective 1 meter (3.3ft) link for short-reach 10 Gigabit Ethernet. It meets the bandwidth requirements defined by 10 Gigabit Ethernet (10GBASE-CU), 8G Fibre Channel, and 10G Fibre Channel over Ethernet (FCoE).
Every cable is individually programmed and tested to work with Chelsio 10G switches, routers, Unified Wire Adapters, and network storage systems, and offers a lower-cost alternative to the genuine Chelsio TAPCABLE1M. The integrated SFP+ connectors give you a direct copper link between compatible ports with no separate optical transceivers to buy.
The passive 30AWG Twinax construction runs on a single 3.3V supply and draws almost no power, which makes it well suited to storage area networks, switched fabric I/O, and high-density rack connections.
Specification
| OEM Part Number | Chelsio TAPCABLE1M | Product SKU | FOD-CHE-TAPCABLE1M |
| Form Factor | SFP+ DAC Cable | Data Rate | 10.5Gb/s |
| Passive or Actively Equalized | Passive | Supply Voltage | 3.3V |
| Cable Length | 1 m (3.3ft) | Cable Impedance | 100 |
| Cable Type | Twinax | Wire Gauge | 30AWG |
| Minimum Cable Bend Radius | 25 mm | Cable Jacket Type | PVC |
| Connector | SFP+ to SFP+ | Digital Diagnostic Monitoring | N/A |
| Environment | Operating: 0°C to 70°C, Storage: -40°C to 85°C | Weight | 0.1 kg |
| Compliance | SFF-8472, SFF-8431, IEC/EN 61000-4-2, MIL-STD-883E, RoHS | ||
