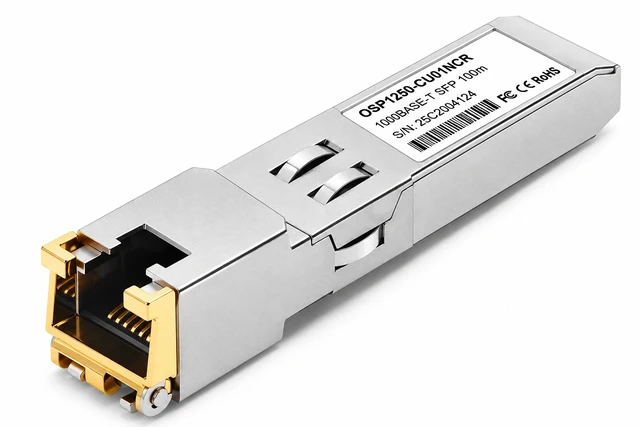

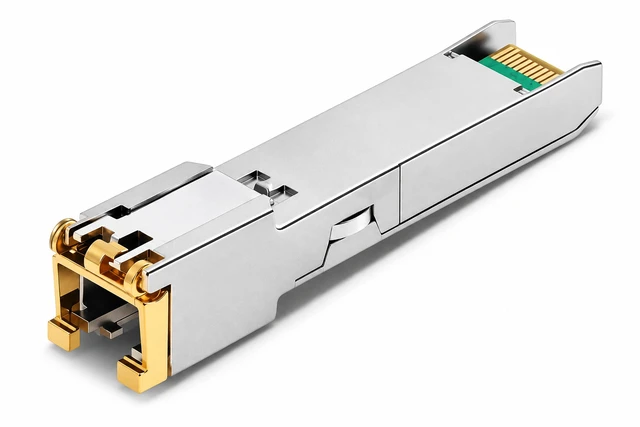

Zhone MALC-GE-SFP-TP Compatible 10/100/1000BASE-T SFP Copper RJ45 Transceiver Module, 100m
- Direct replacement for the Zhone MALC-GE-SFP-TP 10/100/1000BASE-T SFP module
- Coded and tested in Zhone MALC access and broadband aggregation platforms
- Compliant with SFP MSA, IEEE 802.3, and IEEE 802.3ab
- Triple-speed 10, 100, and 1000BASE-T operation over the same RJ45 port
- 100m (328 ft) reach over Cat5, Cat5e, or better copper cable
- Power draw of 1.1 W
- Compact RJ45 female connector, hot-pluggable
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Zhone MALC-GE-SFP-TP Compatible 10/100/1000BASE-T SFP Transceiver Module (Copper, 100m, RJ45)
This Zhone MALC-GE-SFP-TP compatible SFP module delivers 10, 100, and 1000BASE-T connectivity over Cat5, Cat5e, or better copper cable at distances up to 100 meters (328 ft) through an RJ45 connector. Triple-speed support suits subscriber handoffs in access networks, where a single port often has to serve customer premises equipment running at older 10 and 100 Mbps rates alongside Gigabit hardware. It meets the Gigabit Ethernet and 10/100/1000BASE-T specifications in IEEE 802.3-2002 and IEEE 802.3ab.
Every unit is programmed with Zhone EEPROM coding and tested in Zhone 1G access devices and interface cards before it ships, so the port recognizes it exactly as it would the OEM MALC-GE-SFP-TP. Each module is engineered, produced, and tested in-factory, and against the OEM part it can cut networking cabling costs on a project by up to 80 percent.
Specifications
| Compatible OEM Part# | MALC-GE-SFP-TP | Manufacturer Part# | FOD-ZHN-MALCGESFPTP | |
| Form Factor | SFP | Data Rate | 1000 Mbps | |
| Wavelength | NA | Media Type | Cat5/5e/6/6a cable | |
| Max Distance | 100 m | Transmitter Type | N/A | |
| Receiver Type | N/A | Transmitter Power | N/A | |
| Receiver Sensitivity | N/A | Extinction Ratio | N/A | |
| Receiver Overload | N/A | Connector | RJ45 Female | |
| Power Consumption | 1.1 W | DDM/DOM | No | |
| Compliance | RoHS, CE, REACH, SFP MSA, IEEE 802.3, IEEE 802.3ab | Environment | Operating Temperature: 0~70°C, Storage Temperature: -40~85°C | |
| Application | Gigabit Ethernet, switch to switch interface, switch to NIC or media converter interface, other 1G links | Shipping Weight | 0.03 kg | |
| Dimensions (LxWxH) | 68.0×13.5×14 mm |
