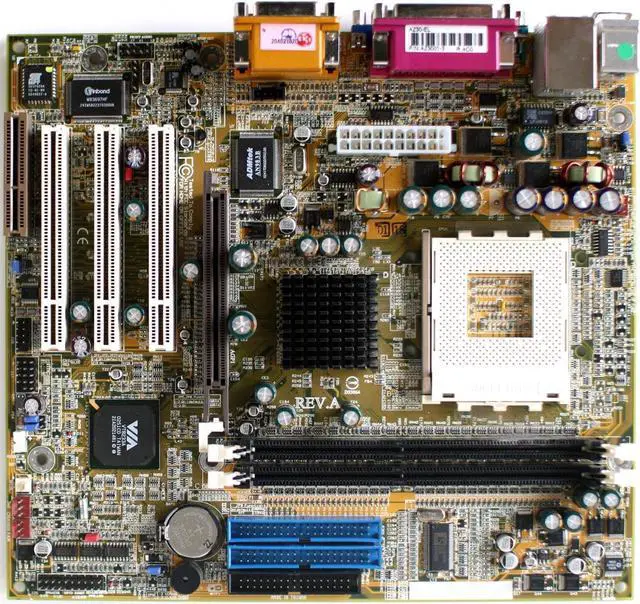

MB, Audio/Video, rev A, (66-m3), w/lan

General

Packaged Quantity 1.0
Product Type Motherboard - Micro ATX
Chipset Type VIA ProSavageDDR KM266
Max Bus Speed 266.0 MHz
Processor Socket Socket A
Max Processors Qty 1.0
Compatible Processors Duron,
Athlon,
Athlon XP

Supported RAM

Max Size 2.0 GB
Technology DDR SDRAM
Bus Clock 266 MHz,
200 MHz
Speed PC1600,
PC2100

Graphics

Graphics Controller S3 ProSavage8
Memory Allocation Technology Shared video memory (UMA)

Audio

Compliant Standards AC '97,
DirectSound

LAN

Network Interfaces Ethernet
Modem None

Expansion / Connectivity

Expansion Slot(s) 1.0 x PCI Shared PCI / CNR ( 2.5 V ),
2.0 x DIMM 184-pin AGP 4x,
1.0 x CPU,
2.0 x,
1.0 x
Storage Interfaces ATA-133 - connector(s): 2 x 40pin IDC
Interfaces 1.0 x Gameport / MIDI USB - Generic - 15 pin D-Sub (DB-15) - Mini-jack,
1.0 x Serial - Mini-jack,
1.0 x Parallel - Mini-jack,
1.0 x LAN,
2.0 x Audio line-in,
1.0 x Audio line-out,
1.0 x PS/2 mouse,
1.0 x VGA,
1.0 x PS/2 keyboard,
1.0 x Microphone,
1.0 x
Internal Interfaces 1.0 x Floppy - 4 pin MPC,
1.0 x Audio
Compatible Slots None

Features

BIOS Type Award
BIOS Features DMI 2.0 support,
ACPI support
Hardware Monitoring CPU fan tachometer,
CPU core voltage,
Chassis fan tachometer,
System voltage,
CPU core temperature
Sleep / Wake Up Wake on LAN (WOL),
Wake on modem (WOM),
RTC (real-time clock) wake up,
Suspend to RAM (STR)

Miscellaneous

Cables Included 1.0 x IDE cable,
1.0 x Floppy cable
Software Included Drivers & utilities
Width 9.6 in
Depth 8.7 in
