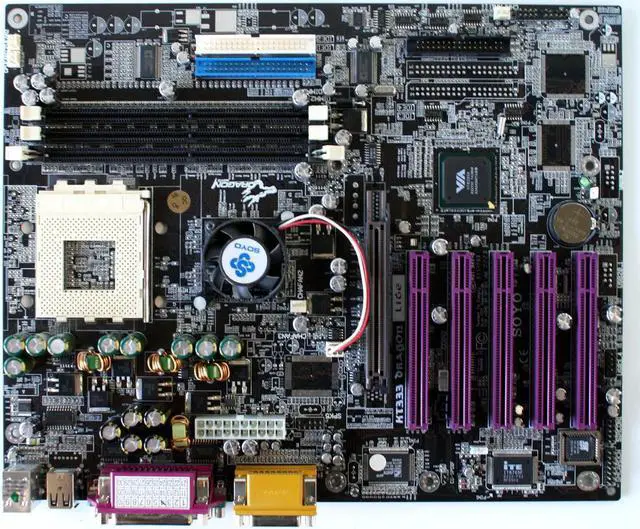

MB, KT333 DRAGON ULTRA, K7VXBL

Part Number: SY-KT333 General Packaged Quantity 1.0 Product Type Motherboard - ATX Chipset Type VIA Apollo KT333 Max Bus Speed 266.0 MHz Processor Socket Socket A Max Processors Qty 1.0 Compatible Processors Duron, Athlon XP, Athlon Supported RAM Max Size 3.0 GB Technology DDR SDRAM Bus Clock 333 MHz, 266 MHz, 200 MHz Speed PC1600, PC2100, PC2700 Audio Type 6-channel Compliant Standards Dolby Digital 5.1 LAN Network Interfaces Ethernet Modem None Expansion / Connectivity Expansion Slot (s) 1.0 x PCI AGP 4x ( 2.5 V ), 3.0 x DIMM 184-pin, 5.0 x CPU, 1.0 x Storage Interfaces ATA-133 - connector (s): 4 x 40pin IDC Interfaces 1.0 x Gameport Audio line-in - Generic - 15 pin D-Sub (DB-15) - Mini-jack, 1.0 x LAN - Mini-jack, 1.0 x Audio line-out - Mini-jack, 1.0 x PS/2 keyboard, 1.0 x Microphone, 4.0 x TOSLINK, 2.0 x Parallel, 1.0 x USB 2.0, 1.0 x PS/2 mouse, 1.0 x USB, 1.0 x TOSLINK, 1.0 x Serial Internal Interfaces 1.0 x Audio - 4 pin MPC, 2.0 x Floppy Compatible Slots None Features BIOS Type Award BIOS Features ACPI support, APM support Manual Settings AGP slot voltage, Memory voltage Hardware Monitoring CPU overheating protection, CPU fan tachometer, CPU core voltage, System voltage, CPU core temperature Sleep / Wake Up Suspend to disk, Suspend to RAM (STR), Wake on LAN (WOL) Miscellaneous Width 12.0 in Depth 9.1 in
