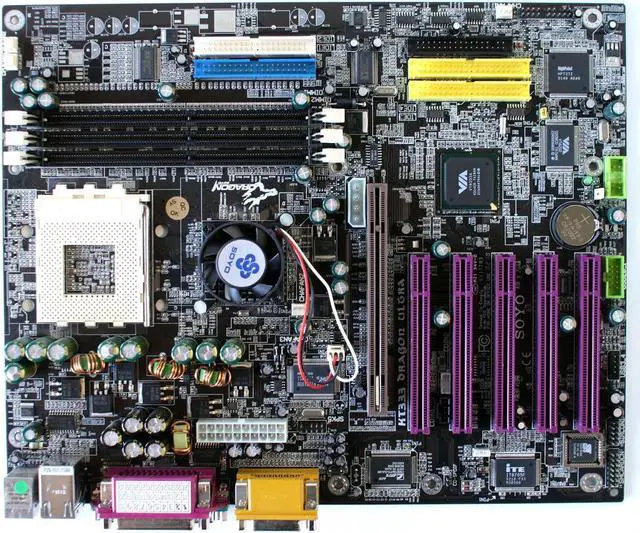

MB, KT333 DRAGON ULTRA, K7VXB

Part Number:SY-KT333

General

Packaged Quantity 1.0
Product Type Motherboard - ATX
Chipset Type VIA Apollo KT333
Max Bus Speed 266.0 MHz
Processor Socket Socket A
Max Processors Qty 1.0
Compatible Processors Duron,
Athlon XP,
Athlon

Supported RAM

Max Size 3.0 GB
Technology DDR SDRAM
Bus Clock 333 MHz,
266 MHz,
200 MHz
Speed PC1600,
PC2100,
PC2700

Audio

Type 6-channel
Compliant Standards Dolby Digital 5.1

LAN

Network Interfaces Ethernet
Modem None

Expansion / Connectivity

Expansion Slot(s) 1.0 x PCI AGP 4x ( 2.5 V ),
3.0 x DIMM 184-pin,
5.0 x CPU,
1.0 x
Storage Interfaces ATA-133 - connector(s): 4 x 40pin IDC
Interfaces 1.0 x Gameport Audio line-in - Generic - 15 pin D-Sub (DB-15) - Mini-jack,
1.0 x LAN - Mini-jack,
1.0 x Audio line-out - Mini-jack,
1.0 x PS/2 keyboard,
1.0 x Microphone,
4.0 x TOSLINK,
2.0 x Parallel,
1.0 x USB 2.0,
1.0 x PS/2 mouse,
1.0 x USB,
1.0 x TOSLINK,
1.0 x Serial
Internal Interfaces 1.0 x Audio - 4 pin MPC,
2.0 x Floppy
Compatible Slots None

Features

BIOS Type Award
BIOS Features ACPI support,
APM support
Manual Settings AGP slot voltage,
Memory voltage
Hardware Monitoring CPU overheating protection,
CPU fan tachometer,
CPU core voltage,
System voltage,
CPU core temperature
Sleep / Wake Up Suspend to disk,
Suspend to RAM (STR),
Wake on LAN (WOL)

Miscellaneous

Width 12.0 in
Depth 9.1 in
