Black Box LFP420 Sfp 1250Mbps Extended 1550Nm Tx 1310Nm Simplex Sm Fiber Lc
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
- Support for throughput up to 1250 Mbps makes this SFP ideal for use with high-speed applications such as 1000-Mbps Ethernet.
- Reports basic link characteristics such as SFP type length of fiber link wavelength and bit rate.
- Extended diagnostics enable this SFP to also report information such as temperature TX and RX power voltage and bias current.
- Hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
- Compatible with SFP slots on most network devices. For details contact our FREE Tech Support.
- This SFP optical transceiver enables you to adapt an SFP slot to a fiber interface.
- Because it's transparent to data this SFP is compatible with any network standard operating at speeds of up to 1250 Mbps.
- Supports an extended diagnostics and extended operating temperature of -40 to 176F (-40 to +85C).
- Ideal for applications where you only have a single fiber available.
- Support for throughput up to 1250 Mbps makes this SFP ideal for use with high-speed applications such as Gigabit Ethernet.
- Hot-pluggable interface enables you to change SFPs on the fly when your network requirements change.
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 1-877-877-2269
- Support Website
- View other products from Black Box Corporation
LOADING...
LOADING...

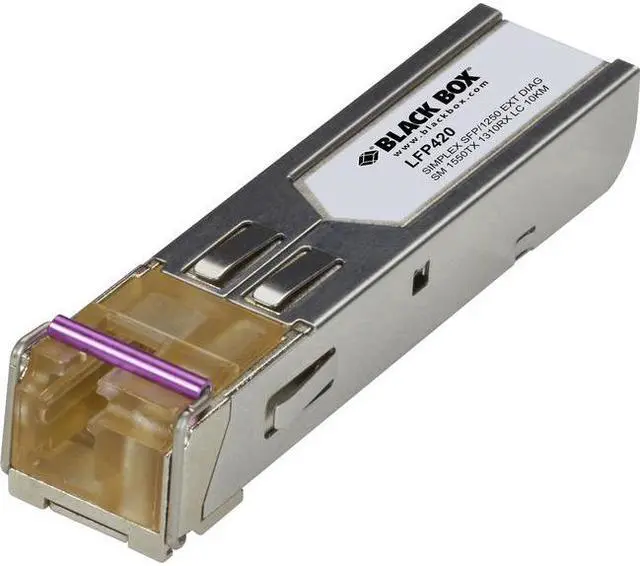

The Black Box LFP420 is a 1.25-Gbps SFP fiber transceiver for compatible SFP-equipped network devices, suited to single-mode, single-strand links up to 10 km that use an LC simplex connection and a matching transceiver at the far end.
Recommended For
- Network technicians extending a 1-Gigabit Ethernet link up to 10 km over existing single-mode fiber with one fiber strand available; the link needs a complementary 1310-nm-TX/1550-nm-RX transceiver at the other end.
- IT teams maintaining Black Box switches or media converters that list the LFP420 as a supported 1-Gbps SFP, and who want the manufacturer-specified module for that equipment.
- Operators of equipment closets or industrial sites that need an SFP specified for extended temperatures, from -40°F to 176°F, and can confirm the host device supports it.
- Network support staff who want on-module diagnostics—such as transmit and receive power, temperature, voltage, and bias current—to help check a fiber link.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Single-mode fiber networking links using an SFP transceiver |
| Brand And Manufacturer | Black Box Corporation brand; MPS manufacturer |
| Package Contents | 1 unit |
