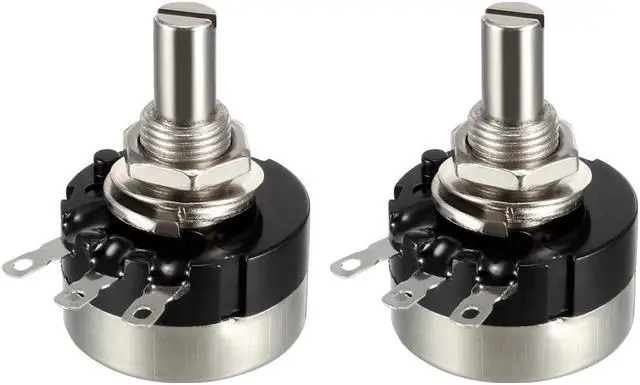

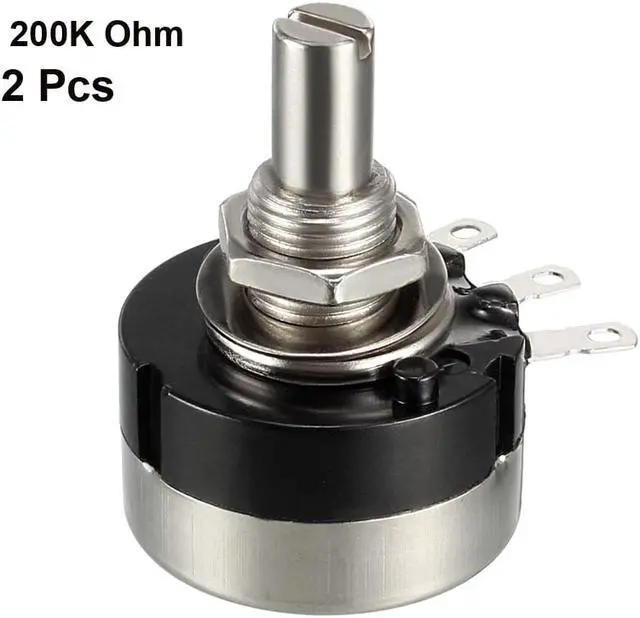

RV24YN20S 200K Ohm Variable Resistors Single Turn Rotary Carbon Film Potentiometer 2pcs
- Model: RV24YN 20S/B204;Package Content :2 x Carbon Film Potentiometer ;Resistance Value: 200K Ohm Tolerance:+/-10% ;Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (D * H);
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Product Name: Carbon Film Potentiometer

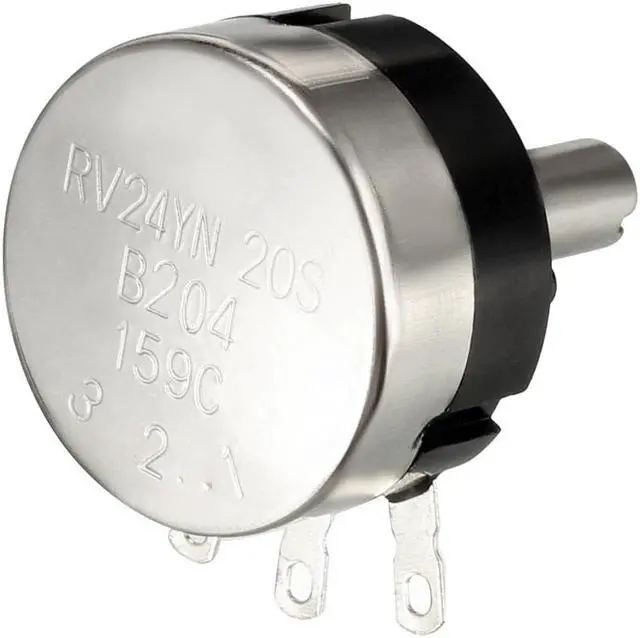

- Model: RV24YN 20S/B204
- Material: Carbon film Metal
- Resistance Value: 200K ohm
- Power: 2W
- Tolerance: +/-10%
- Turn Number: Single Turn
- Terminals Number: 3
- Features: Round Shaft
- Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (D * H)
- Screw Thread Dia.: 8.7mm/0.34 inch
- Shaft Diameter: 6mm / 0.24 inch
- Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
- Shaft Total Length 20.5mm/0.8 inch
- Color: Black, Silver Tone
- Package Content: 2 x Carbon Film Potentiometer
- Features: 200K ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.this item do not include Knobs)
- Top adjustment type and knurled shaft for easy operate in daily use.
- Main used to control electrical devices such as volume controls on audio equipment.
- Knurled shaft with split design for push-on knob.
