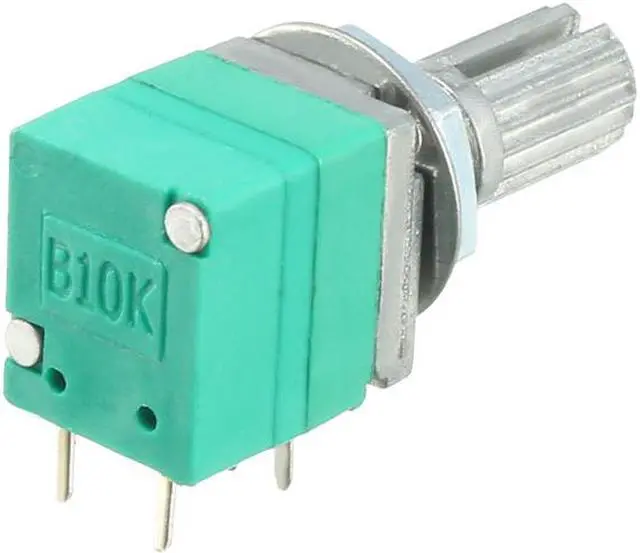

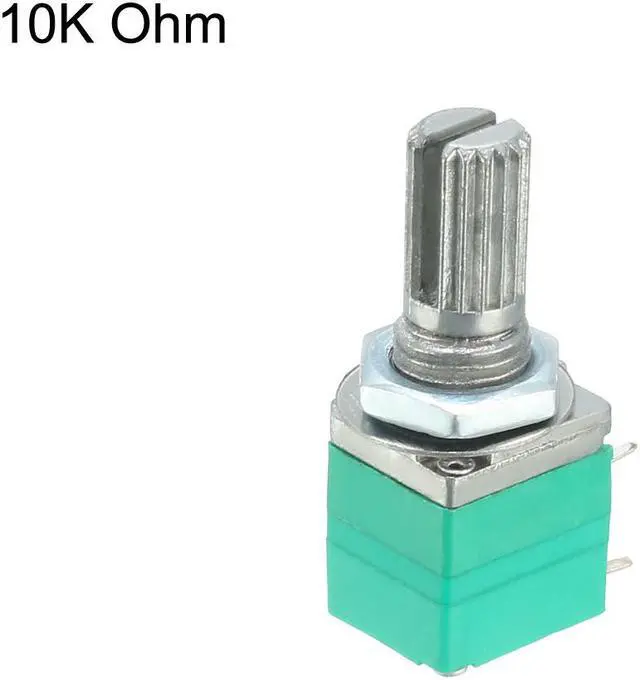

RV097NS 10K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper Potentiometer

• Product Name: Carbon Film Potentiometer
• Model: RV097NS
• Material: Carbon film Metal
• Resistance Value: 10K ohm
• Tolerance: +/-10%
• Turn Number: Single Turn
• Terminals Number: 5
• Features: Round Shaft
• Total Size: 27mm x 9mm x 11mm/1.06 x 0.35 x 0.43 inch (L*W*H)(not included pin)
• Screw Thread Dia.: 6.5mm/0.26 inch
• Shaft Diameter: 6mm/0.24 inch
• Shaft Length(do not include the Screw Thread parts): 10mm/0.39 inch
• Shaft Total Length: 15mm/0.59 inch
• Package Content: 1 x Carbon Film Potentiometer
• Features: 10K ohm, 5 Terminals, Single Linear, Suits Most Standard Knobs.this item do not include Knobs)
• Top adjustment type and knurled shaft for easy operate in daily use.
• Main used to control electrical devices such as volume controls on audio equipment.
• Knurled shaft with split design for push-on knob.
