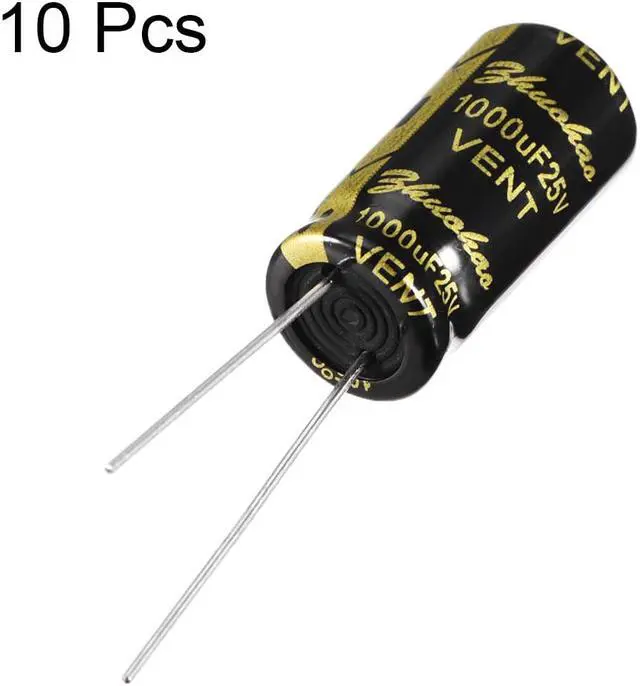

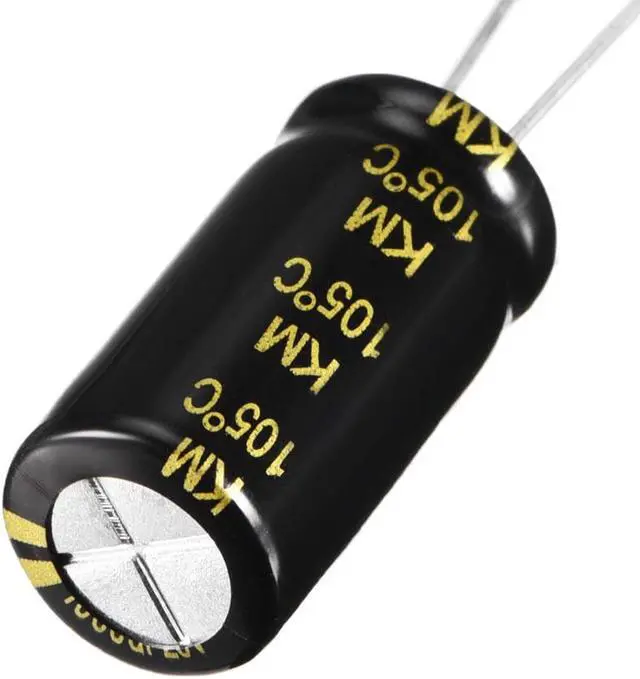

Aluminum Radial Electrolytic Capacitor 1000uF 25V Life 10 x 20 mm Black 10pcs

Features:
Standard General Purpose.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.

Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.

Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: For Standard
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 25V;
Capacitance: 1000uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Max Ripple Current at 105 Celsius 120Hz: 821mA;
Standard Load Life: 2000hrs
Body Size: 10 x 20mm/ 0.39" x 0.79" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 5mm/ 0.2"
Lead Diameter: 0.6 mm
Size: 10pcs 1000UF 25V 10x20mm

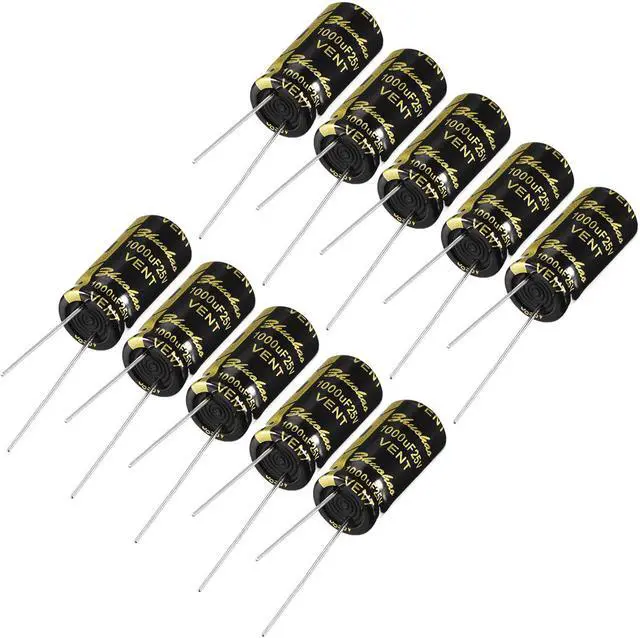

Package Content: 10 x Electrolytic Capacitors
