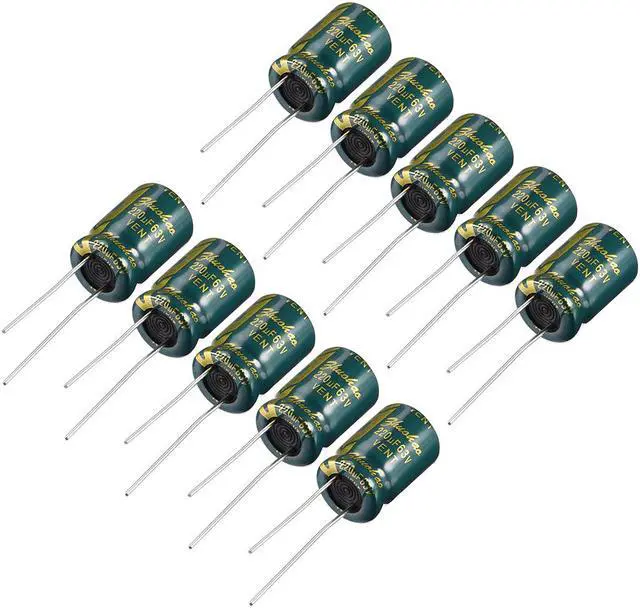

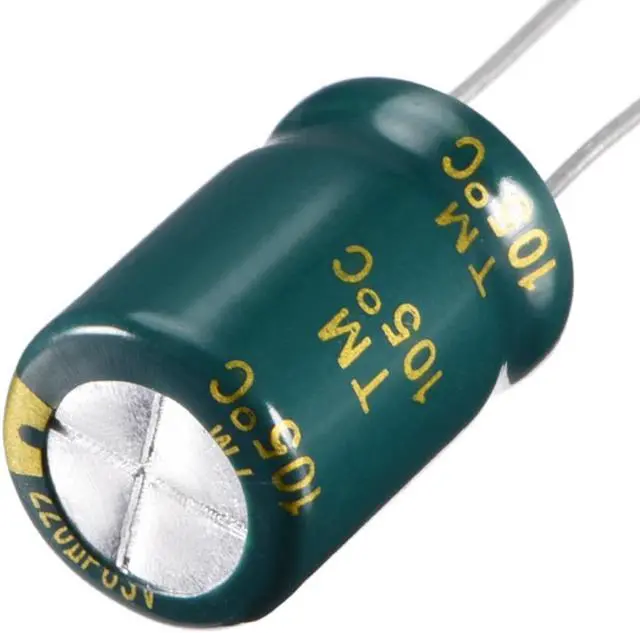

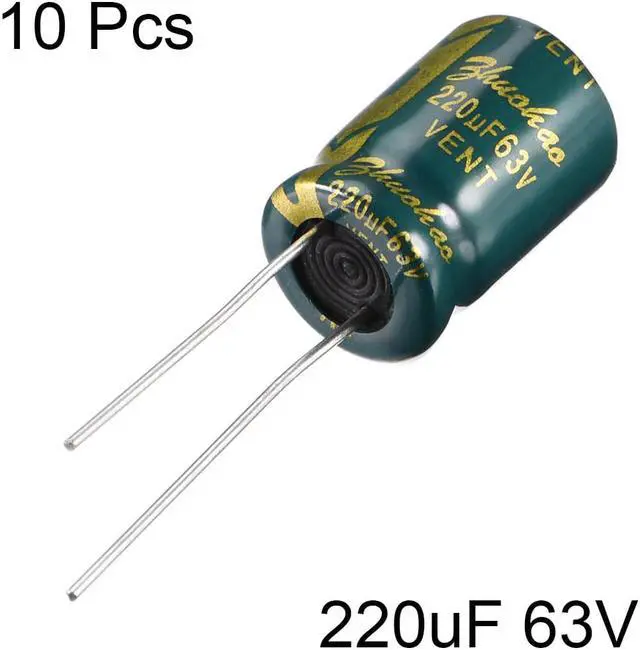

Aluminum Radial Electrolytic Capacitor Low ESR 220uF 63V 105 Celsius 3000H Life 10x16mm High Ripple Current Low Impedance 10pcs Green
- Rated Voltage: 63V; Capacitance: 220uF; ;Maximum Operating Temperature: 105 Celsius; Standard Load Life: 3000hrs;Body Size: 10x16mm(D*L); Lead Length: 24mm/19mm; Lead Pitch : 5mm;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
High Ripple Current, Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Rated Voltage: 63V
Capacitance: 220uF

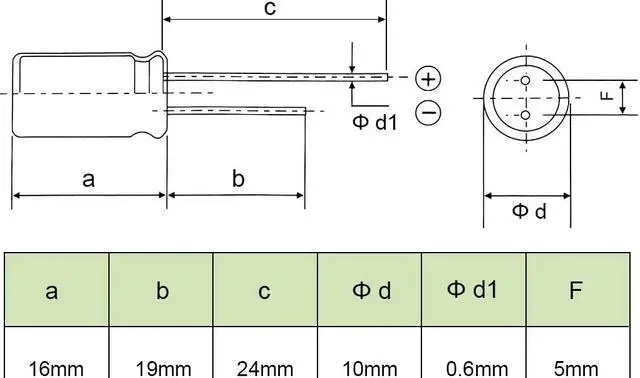

Lead Diameter: 0.6 mm
Lead Pitch: 5mm/ 0.2 inch
Lead Length: 24mm/ 0.9 inch, 19mm/ 0.7 inch
Standard Load Life: 3000hrs
Body Size: 10x16mm/ 0.4 x 0.6 inch (DxL)
Capacitance Tolerance: ±20% (120Hz +20 Celsius)
Category Temperature Range: -40 to +105 Celsius ( 6.3 to 100V)
Size: 10pcs 220uF 63V 10x16mm
Package Content: 10 x Electrolytic Capacitors
High Ripple Current, Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Rated Voltage: 63V
Capacitance: 220uF
Lead Diameter: 0.6 mm
Lead Pitch: 5mm/ 0.2 inch
Lead Length: 24mm/ 0.9 inch, 19mm/ 0.7 inch
Standard Load Life: 3000hrs
Body Size: 10x16mm/ 0.4 x 0.6 inch (DxL)
Capacitance Tolerance: ±20% (120Hz +20 Celsius)
Category Temperature Range: -40 to +105 Celsius ( 6.3 to 100V)
Size: 10pcs 220uF 63V 10x16mm
Package Content: 10 x Electrolytic Capacitors
